美国泰克5系列 MSO 混合信号示波器 MSO54 MSO56 MSO58

美国泰克5系列MSO混合信号示波器不仅仅采用新显示器和用户界面, 更是新标准。配有15.6 英寸高清触摸屏,让您获取更大图像和整体操作控制能力。使用支持手指开合、缩放和滑动的电容式触摸屏、前面板控件或鼠标分析和管理多个信号,而不必使用菜单操作。 拥有足够的通道。 提供 4、6 或8条 FlexChannel 输入通道。每条通道可用于观察 1个模拟信号或 8个数字逻辑信号,只需更改探头即可实现。将任何模拟信号显示为高分辨率波形、频谱或两者,并为每......

产品描述

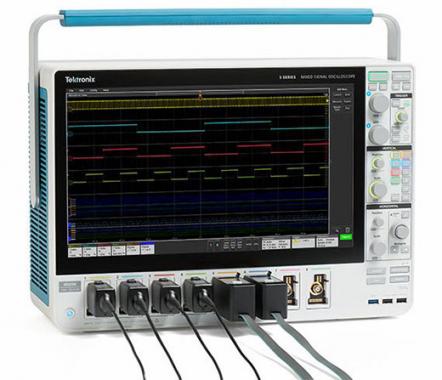

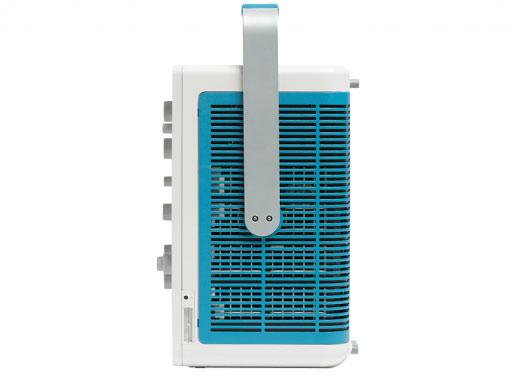

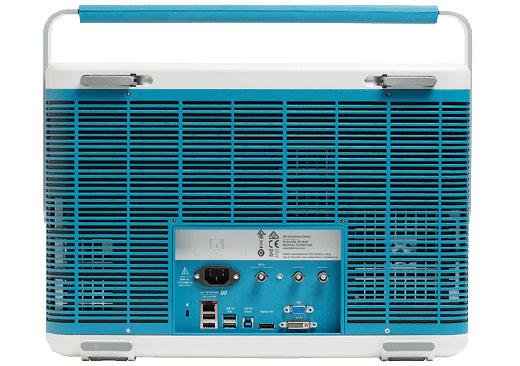

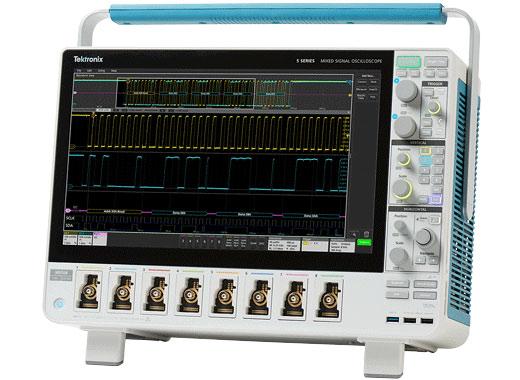

5 Series MSO Mixed Signal Oscilloscope Front View 5 Series MSO Mixed Signal Oscilloscope Side View 5 Series MSO Mixed Signal Oscilloscope Back View 5 Series MSO Mixed Signal Oscilloscope Front View With Probes

美国泰克5系列MSO混合信号示波器不仅仅采用新显示器和用户界面, 更是新标准。配有15.6 英寸高清触摸屏,让您获取更大图像和整体操作控制能力。使用支持手指开合、缩放和滑动的电容式触摸屏、前面板控件或鼠标分析和管理多个信号,而不必使用菜单操作。

拥有足够的通道。提供 4、6 或8条 FlexChannel 输入通道。每条通道可用于观察 1个模拟信号或 8个数字逻辑信号,只需更改探头即可实现。将任何模拟信号显示为高分辨率波形、频谱或两者,并为每个域提供独立的采集控制。了解如何使用 FlexChannel 输入扩展可视性

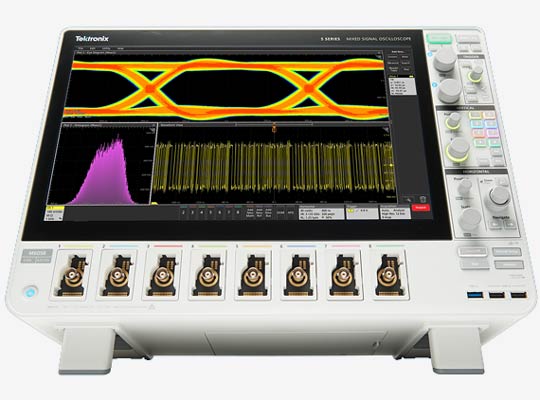

MSO 混合信号示波器

MSO54 MSO56 MSO58支持高达16 位的垂直分辨率,每个细节都不会错过。

MSO混合信号示波器

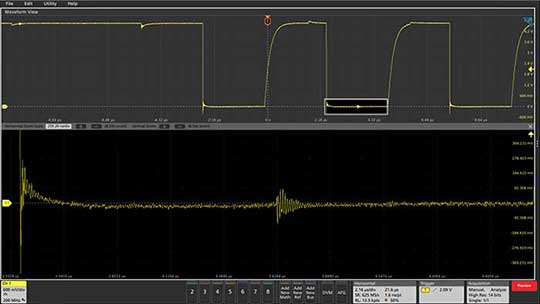

12位模拟到数字转化器,使用高级数字信号处理提供高达 16 位垂直分辨率。 对于叠加在大信号上的微小信号也能直接观察和测量到信号的细节。立即购买所需产品。 根据您的测试需求变化进行扩展。

MSO混合信号示波器

MSO54 MSO56 MSO58性能高达2GHz带宽,高达125M点记录长度

数字输入:TLP058 逻辑探头,每个探头可提供8条数字通道
操作系统:添加 Windows 操作系统,以便在示波器上运行 PC 软件
信号发生器:添加内置任意波形/函数发生器

高级分析

  • 串行解码/触发支持 I2C、SPI、USB 2.0、以太网、CAN、LIN 等多种总线

  • 自动对以太网、USB 2.0 和汽车以太网进行一致性测试

  • 高级抖动分析

  • 自动功率测量和分析

  • 低噪声纹波测量

新功能和选项让这款优秀的示波器表现更佳

新选项

  • 利用自定义模板定义执行通过/失败模板和波形极限测试

  • 逆变器、电机和驱动器分析

  • PSI5 协议解码

  • NRZ 协议解码

  • 8b10b 协议解码

  • MIPI I3C 协议解码

  • LVDS 自动测量和分析

  • 模拟视频触发(NTSC、PAL、SECAM)

使用高级分析选项在仪器上免费升级

  • 配备模板测试选件的仪器将获得极限测试功能

在所有仪器上免费升级

  • 标注/书签让您可以对波形上的特定点进行注释

  • 频谱视图中的频率轴现在可能是对数形式

  • 相位噪声图现在可用于相位噪声测量

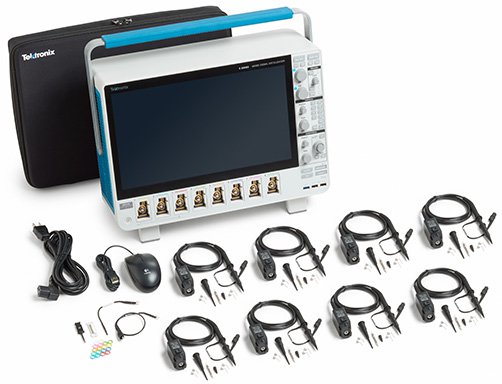

包装箱里有什么物品?
美国泰克混合信号示波器

显示为 8 通道 MSO58 型号

  • 每个输入通道 1个无源探头

  • 选择 350 或 500 MHz 带宽选项时,TPP0500B (500 MHz)

  • 当选择 1 或 2 GHz 带宽选项时,TPP1000 (1 GHz)

  • 针对随附探头的 1 年保修

  • 针对仪器的 3 年保修

  • 鼠标、电源线和附有附件袋的前盖

  • 印刷的安装手册涵盖安全和基本操作

  • 全面的集成在线帮助

  • 追溯证明

意外发生。 确保您受到保护。我们拥有业内独具优势的意外损坏保护的计划。 是的,其中包括屏幕损坏、溢出、安装架损坏、静电放电或电子过载事件。 使用我们的“全面呵护计划”降低意外维修或更换成本。 观看视频或单击下方了解详情。

型号

模拟带宽

采样率

记录长度

模拟通道

数字通道数

函数发生器输出

MSO54

350 MHz 至 2 GHz

6.25 GS/s

62.5 M 点至 125 M 点

4

可达 32 条(可选)

1 条(可选)

MSO56

350 MHz 至 2 GHz

6.25 GS/s

62.5 M 点至 125 M 点

6

可达 48 条(可选)

1 条(可选)

MSO58

350 MHz 至 2 GHz

6.25 GS/s

62.5 M 点至 125 M 点

8

可达 64 条(可选)

1 条(可选)





泰克
5 系列 MSO

泰克
MSO/DPO5000B

Keysight
S 系列

LeCroy
HDO6000A/HDO8000A

Rohde & Schwarz
RTO2000

Yokogawa
DLM4000 系列

详细比较

--

--

速查资料

速查资料

速查资料

速查资料

带宽

350 MHz 至 2 GHz

350 MHz 至 2 GHz

500 MHz 至8GHz

350 MHz 至 1 GHz

600 MHz 至 6 GHz

350 MHz,500 MHz

可升级带宽

模拟通道

4、6 或 8

4

2 或 4

4 或 8

2 或 4

8

模拟采样率(所有通道)

高达 6.25 GS/s

高达 5 GS/s

高达 10 GS/s

高达 2.5 GS/s

高达 10 GS/s

2.5 GS/s

标配记录长度(所有通道)

62.5 M

25 M

50 M

50 M

50 M

25 M

集成任意波形/函数发生器

50 MHz(可选)

--

--

--

100 MHz(可选)

--

数字通道(MSO 系列)

可达 64 条(可选)

16 条(可选)

16 条(可选)

16 条(可选)

16 条(可选)

8(标配)/ 24(选配)

ADC 分辨率

12 位

8 位

10 位

12 位

8 位

8 位

波形捕获率

>500,000 波形/秒

250,000 波形/秒

<1,100 波形/秒

<700 波形/秒

1,000,000 波形/秒

N/A

操作系统

封闭式 Linux
开放式 Windows(选配)

开放式 Windows

开放式 Windows

开放式 Windows

开放式 Windows

已关闭

标准探头

高达 1 GHz 无源
< 3.9 pF 负载

高达 1 GHz 无源
< 3.9 pF 负载

500 MHz Passive
9.5 pF loading

500 MHz 无源
10 pF 负载

500 MHz 无源
10 pF 负载

500 MHz
10.5 pF 负载

标准保修

3 年

1 年

3 年

3 年

3 年

?

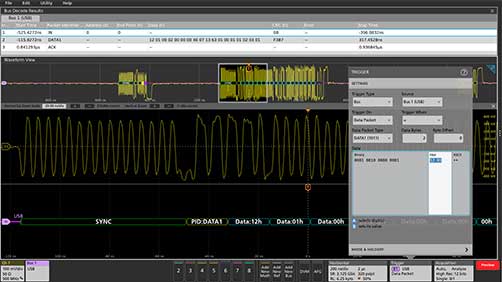

嵌入式串行总线分析

MSO示波器

自动串行总线解码可节省时间并消除手动解码时的错误。 串行总线触发和搜索允许隔离事件,便于系统级故障排除。

特点

  • I2C,SPI

  • I3C

  • USB 2.0

  • 以太网

  • SPMI

  • CAN, CAN FD, LIN, FlexRay

  • SENT

  • I2S/LJ/RJ/TDM

  • ARINC 429、MIL-STD-1553

了解如何调试 I2C 和 SPI 解码和触发速度
了解 USB 2.0 解码和触发

自动串行总线分析

美国泰克混合信号示波器

汽车设计人员可以依靠串行总线在 ECU、传感器与制动器之间实现准确通信。 5 系列 MSO 还具有CAN、CAN FD、LIN、FlexRay 和 SENT 解码和触发功能,可帮助其同步了解系统。 自动汽车以太网一致性套件供您按照标准测试,您无需成为高速总线专家。了解 CAN、CAN FD、LIN 和 FlexRay 解码和触发如何加快调试
了解 SENT 总线解码和触发

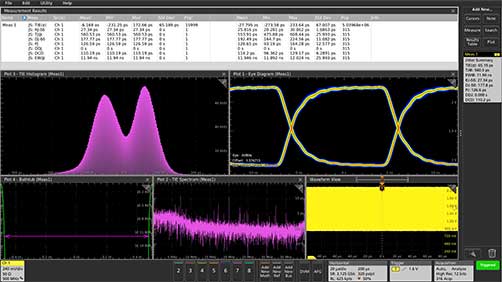

MSO54 MSO56 MSO58抖动分析

泰克MSO

时钟在每个嵌入式系统和数字通信链路的中间位置。 抖动和其他时钟失真可能会影响系统运行,而不使用正确的分析工具将很难了解其根源。

特点

  • 标准相位噪声、时钟抖动和定时以及波形直方图

  • 选配高级分析、抖动分解和时钟恢复

了解如何使用 5 系列 MSO 进行抖动分析
了解抖动分析的基本信息

MSO54 MSO56 MSO58与功率电子

MSO混合信号示波器

让电源质量、谐波、开关损耗、安全操作区测量更可靠且可重复,还带自动功率测量与分析包。 5 系列 MSO 具有高达8条高分辨率通道和多种可用探头,也适合评估电源时序并深入了解 3 相电源转换器。

特点

  • 电源质量和谐波

  • 开关损耗和安全作业区

  • 电路内电感器和变压器分析

  • 多输出效率

了解如何进行自动开关损耗测量、谐波测量等
了解如何通过多条通道简化电源时序
了解如何解码 SPMI 电源管理总线和在其上触发

MSO54 MSO56 MSO58与电源完整性

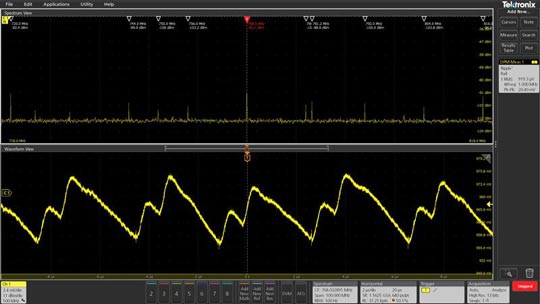

5系列 - 电源完整性

如今的电路板可以有20个或更多的电源轨。其中有许多只有几伏,且有严格的噪音限制。需要特别注意准确测量。

MSO54 MSO56 MSO58特点

数字电源管理选件可自动执行纹波和开/关测量
多达8条模拟输入通道
兼容低噪音TPR系列电源轨探头

美国泰克混合信号示波器 5 Series MSO Mixed Signal Oscilloscope 5-minute Overview Gary, Product Planner for the 5 Series MSO, gives a 5-minute demonstration of the instrument.  In just a few minutes you'll learn everything you need to know to use the new touch interface.  Get a …
Spread Spectrum Clock Analysis With RF vs Time Triggering Spread Spectrum Clock Analysis With RF vs Time Triggering See how to stabilize a hardware trigger on the up-down chirp pattern of a spread spectrum clock using a Frequency Deviation vs. Time trigger.  The Spectrum View capability on the 4, 5 and 6 Series …
Finding root cause of EMI signals with Spectrum View Finding root cause of EMI signals with Spectrum View See how to track down the source of transient RF/EMI emissions with Spectrum View and the RF vs Time triggering capabilities. Clearly determine which PCB signals are causing EMI emissions so that …
Triggering on an ASK Amplitude Shift-Keying Signal with Spectrum View Triggering on an ASK (Amplitude Shift-Keying) Signal with Spectrum View Watch this short demo of RF vs Time hardware trigger to see how an ASK (Amplitude Shift-Keying) signal changes over time.  The Spectrum View capability on the 4, 5 and 6 Series MSO oscilloscopes …

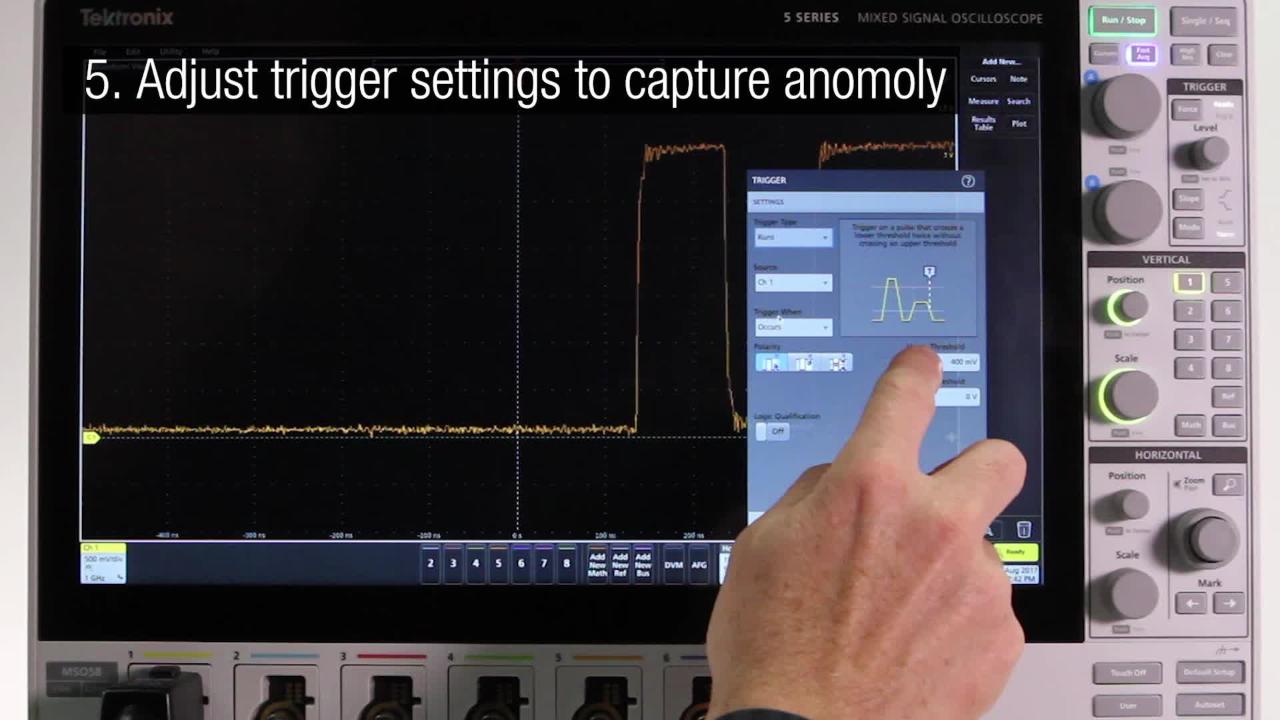

美国泰克5系列 MSO 混合信号示波器 How to Find Signal Anomalies The FastAcq feature provides a quick method of finding even the most elusive signal events.

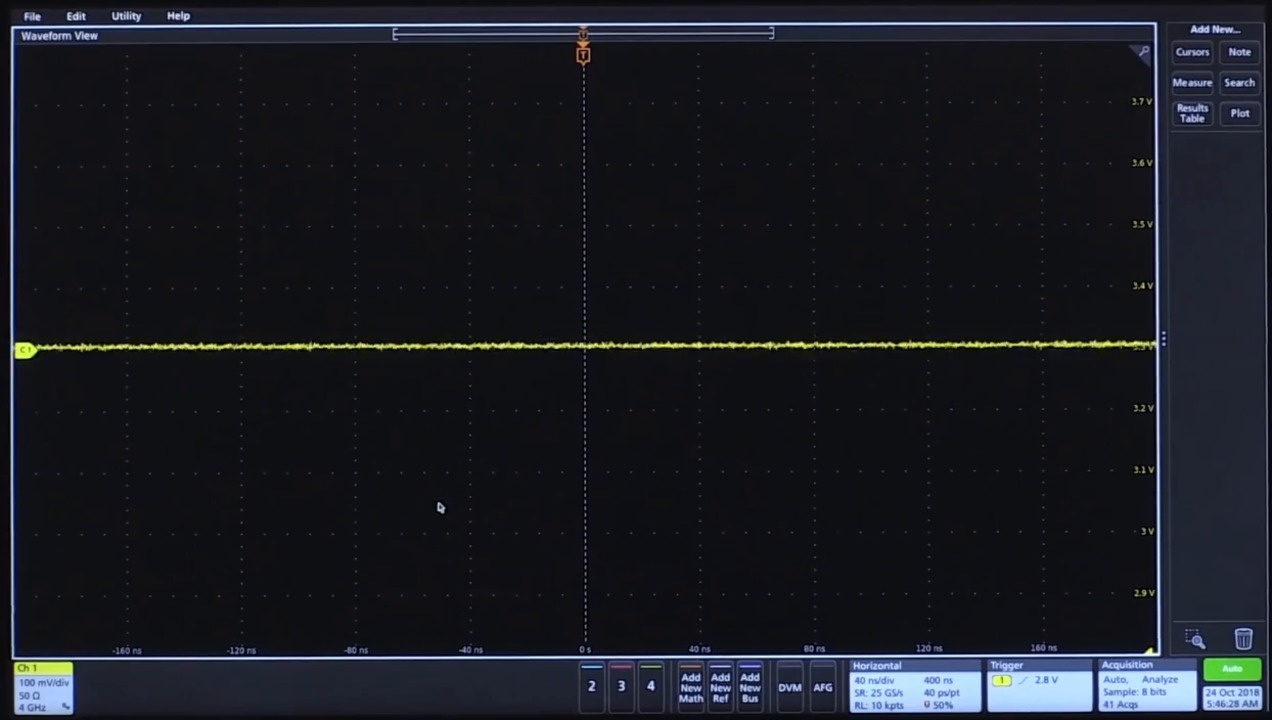

Making Power Rail Measurements Making Power Rail Measurements See the ultra-low noise performance of the TPR4000 Power Rail Probe, and how it can be used for measuring DC power rail noise in microvolts, especially when paired with the 6 Series MSO …
Automotive Ethernet Signal Separation Demo Automotive Ethernet 100BASE-T1 Signal Separation and Protocol Decoding Demo A demonstration of 100BASE-T1 Automotive Ethernet protocol decoding on a 6 Series MSO oscilloscope.  This video shows how full-duplex 100BASE-T1 can be separated and decoded without breaking the …

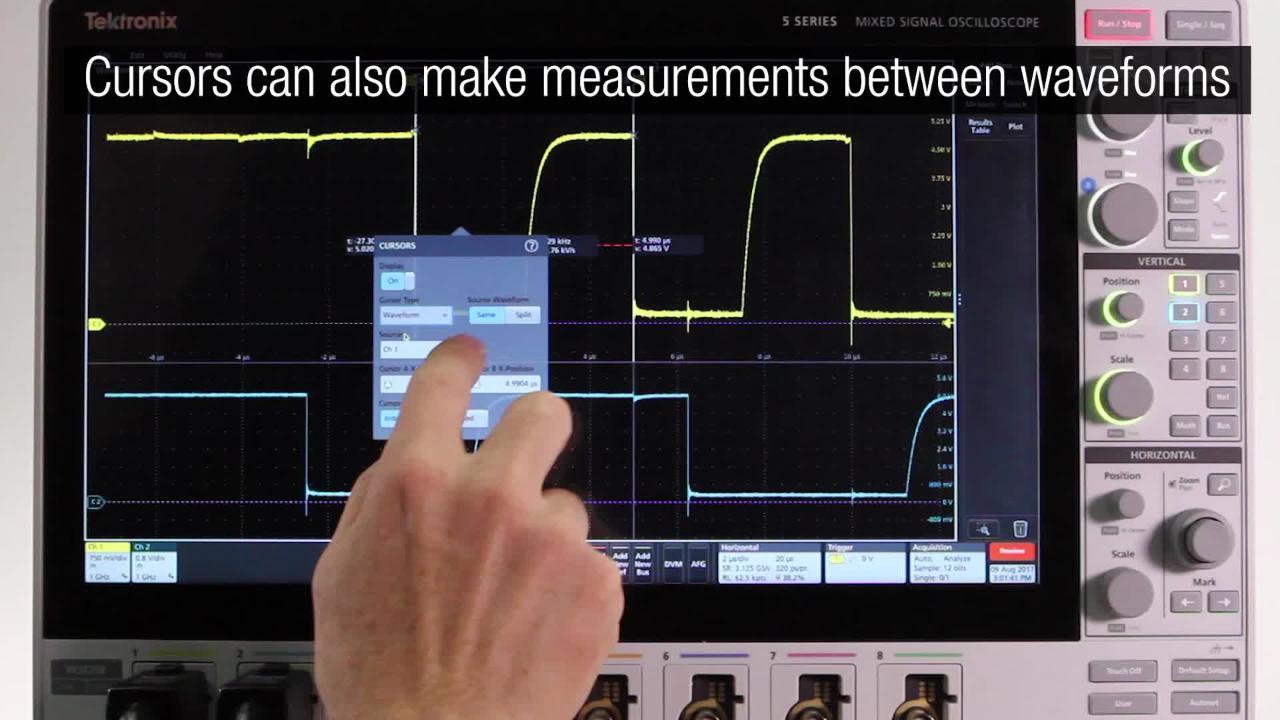

示波器 How to Use Cursors for Manual Measurements Cursors provide a quick method for making manual measurements. Here's how to use them.
美国进口示波器 Automotive Ethernet PAM3 and Signal Separation Introduction Automotive Ethernet with PAM3 introduces new test challenges. Tektronix' new, innovative, non-intrusive Signal Separation simplifies Automotive Ethernet testing and set-up, providing advanced …

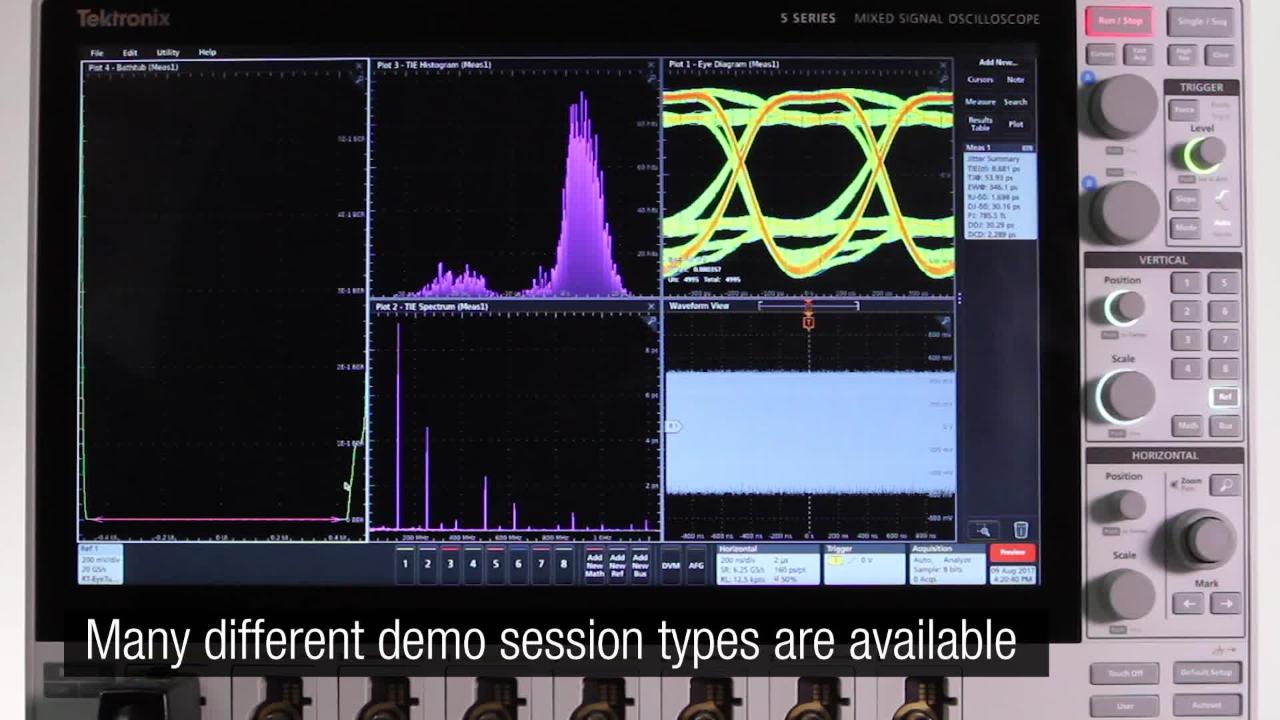

数字示波器 How to Recall Built-in Demo Sessions The 5 Series MSO contains many built-in demo examples. Here are just a few of them.

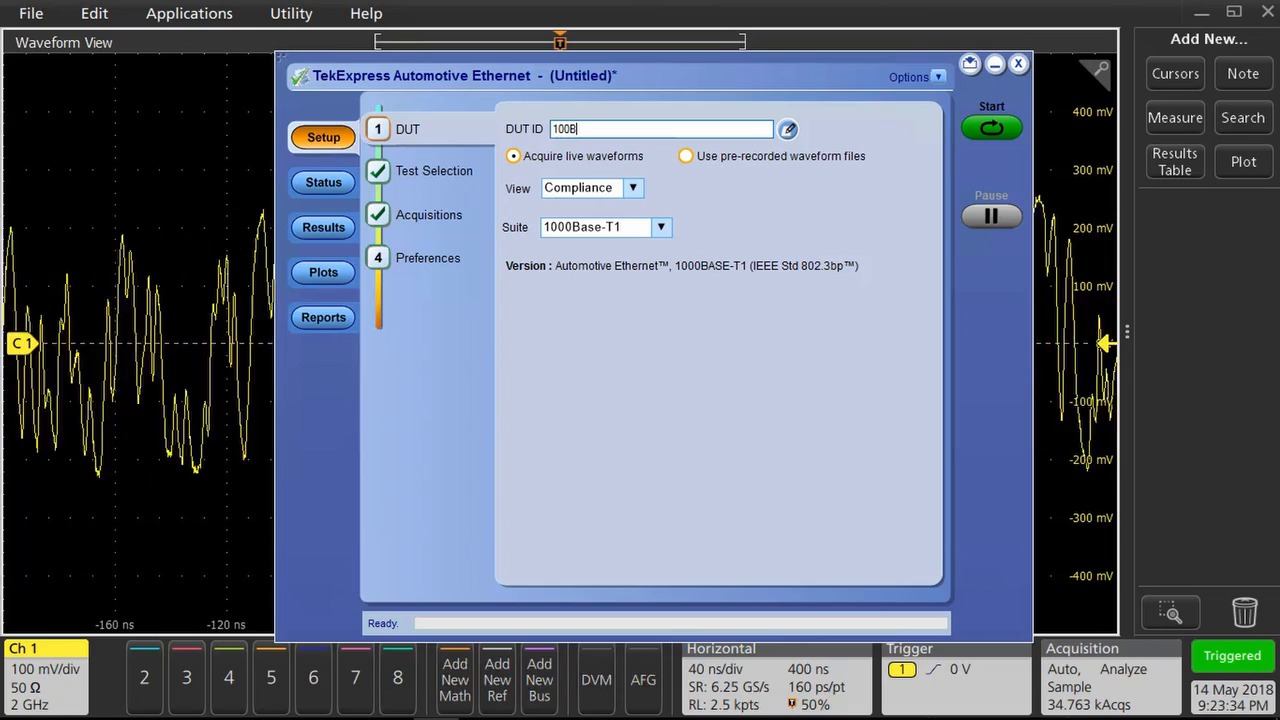

美国泰克5系列 MSO 混合信号示波器 Demonstration of Automated Automotive Ethernet Compliance Test System Test automation may be used to check automotive Ethernet transmitters for compliance with the BroadR-Reach, 100BASE-T1 (P802.3bw), and 1000BASE-T1 (802.3bp) standards. This demonstration shows the …

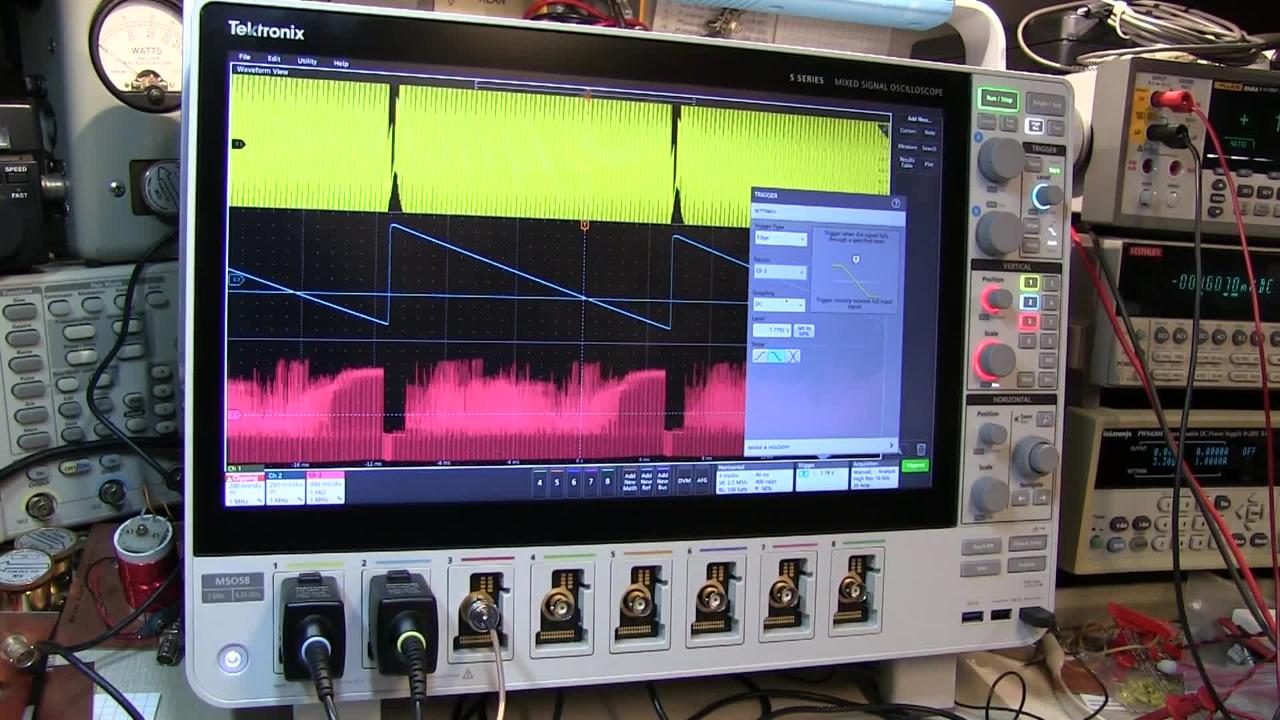

MSO综合示波器 Video Fun with XYZ plots on the 5 Series MSO See what happens when you mix a brand new oscilloscope, an apps engineer, and his composite video separator. Yes, you’ll see video on the scope display. But you’ll also learn about using 16-bit …

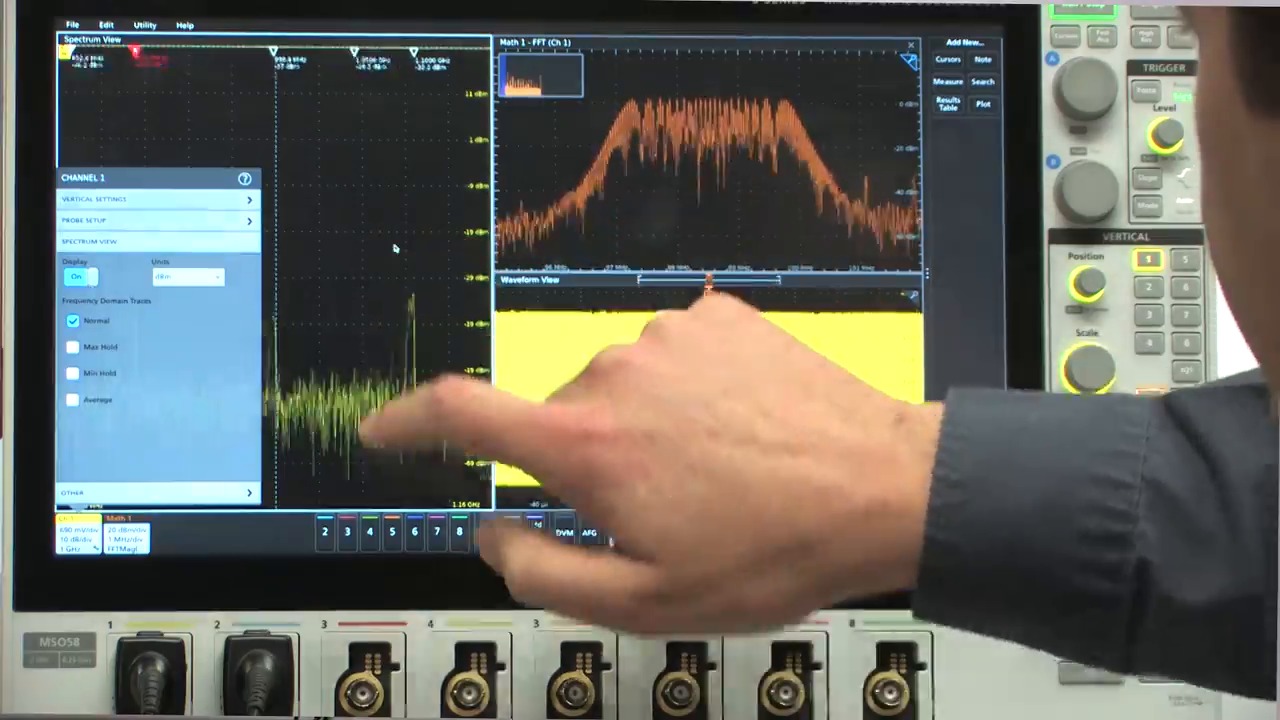

混合信号示波器 Spectrum View on the 5 and 6 Series MSOs How independent time and frequency controls beat traditional FFTs.

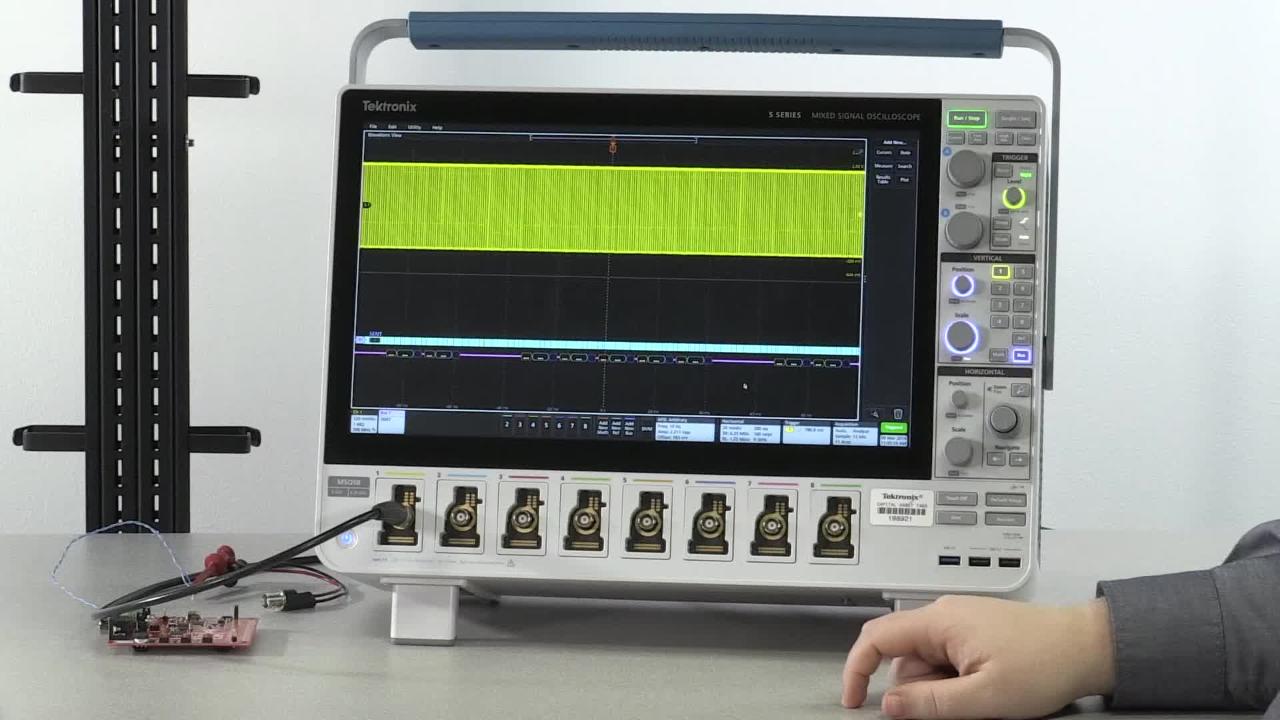

美国泰克示波器 SENT Bus Decode and Trigger on 5 Series MSO This video shows how to set up automated SENT bus (also known as SAE J2716) decoding, triggering, and search on the 5 Series MSO mixed signal oscilloscope. 时长 2m 57s Engineers React to the 5 Series MSO Mixed Signal Oscilloscope

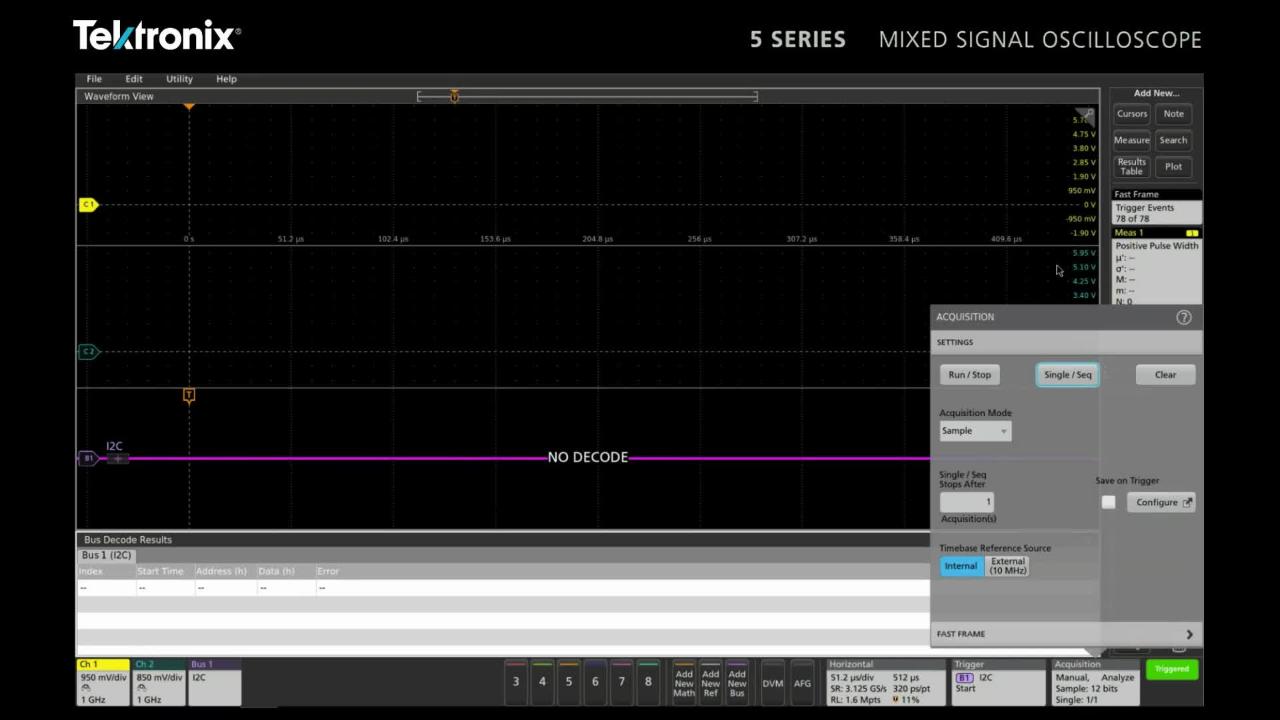

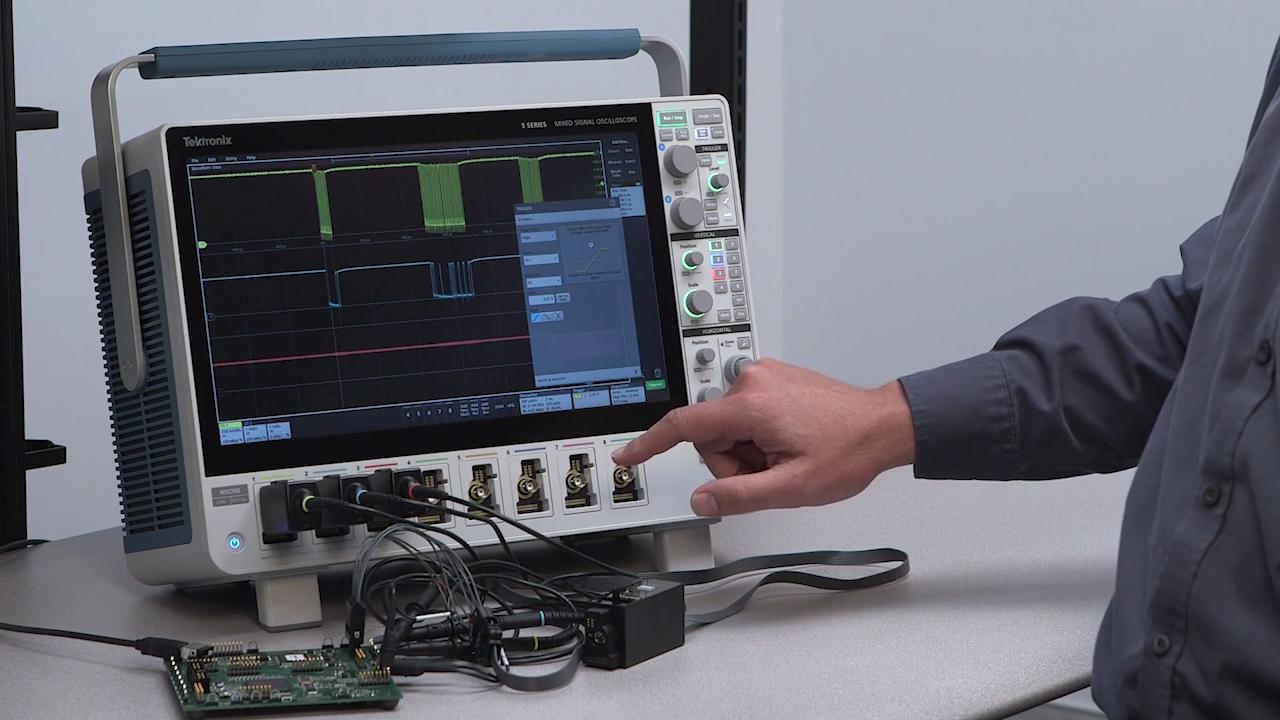

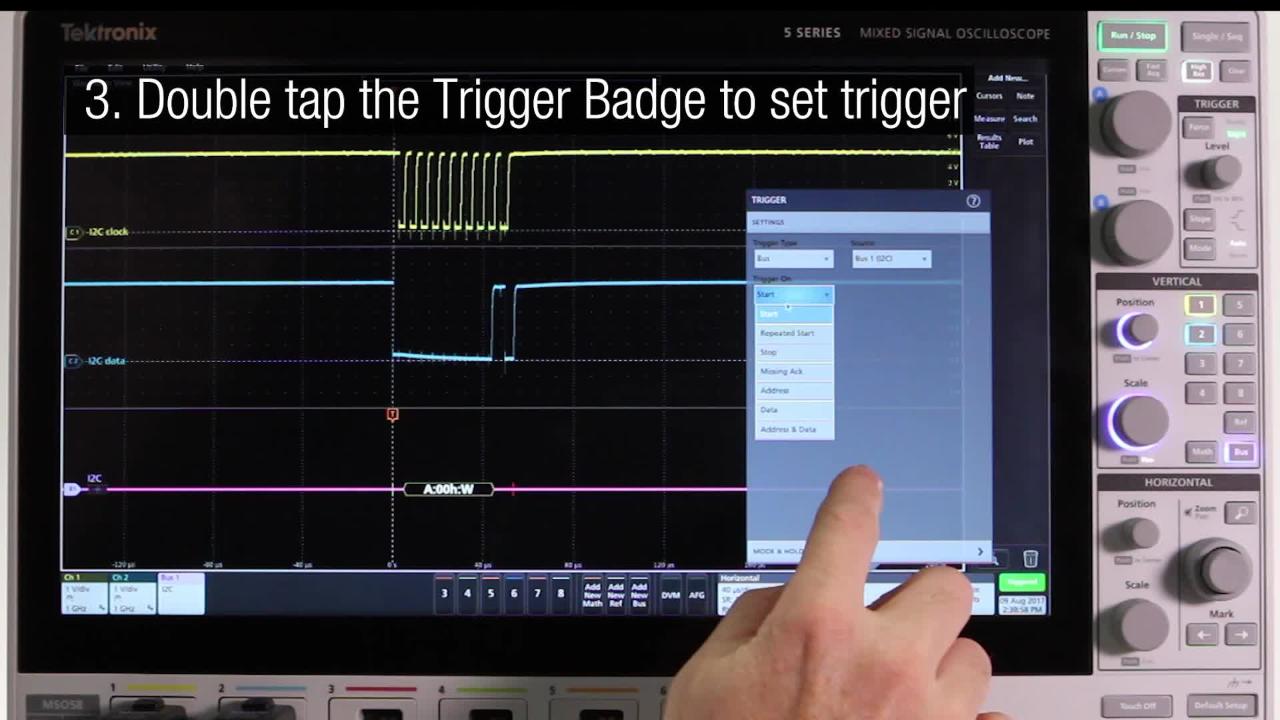

泰克测试仪 How to Set Up Bus Decode and Triggering Learn how to quickly trigger and decode serial busses.

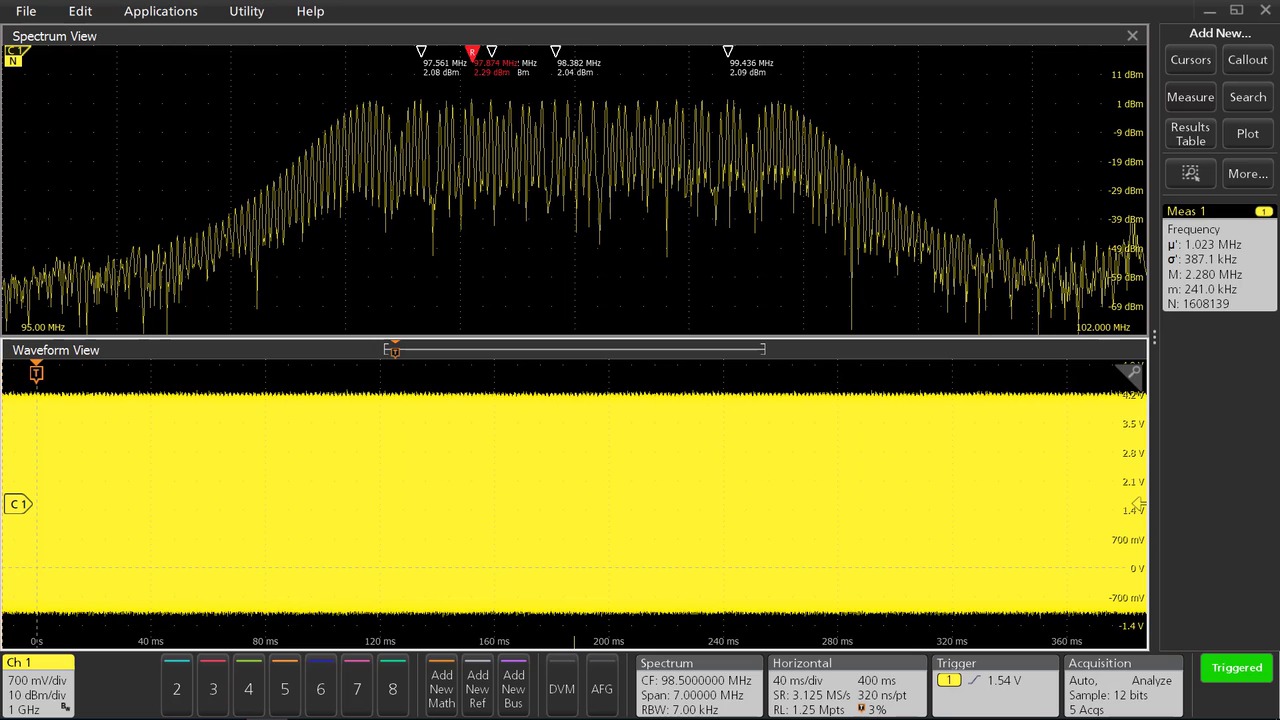

Analyzing turn on behavior of a spread spectrum clock with Spectrum View on 4_5_6 Series Analyzing turn on behavior of a spread spectrum clock with Spectrum View on 4, 5 and 6 Series See how Spectrum View provides ease-of-use and the ability to achieve optimal views in both RF and Time domains simultaneously when analyzing the turn on behavior of a spread spectrum clock.  This …

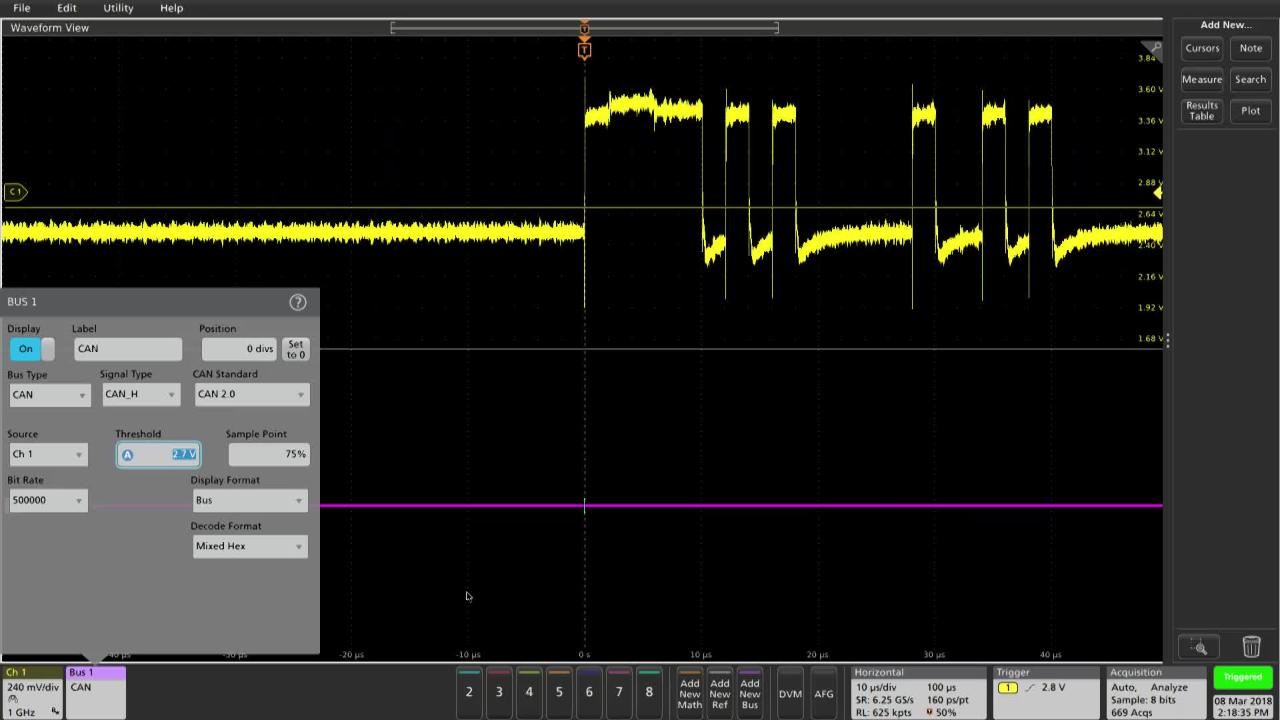

校验仪 CAN Bus Decode and Trigger on the 5 Series MSO This vides shows how to set up automated CAN or CAN FD bus decoding, triggering, and search on the 5 Series MSO mixed signal oscilloscope.
Capturing a Clock Frequency Glitch With RF vs Time Trigger Capturing a Clock Frequency Glitch With RF vs Time Trigger See how an edge trigger on the RF Frequency Deviation vs Time trace isolates and captures a short duration transient in the frequency of a clock signal.  The Spectrum View capability on the 4, 5 …

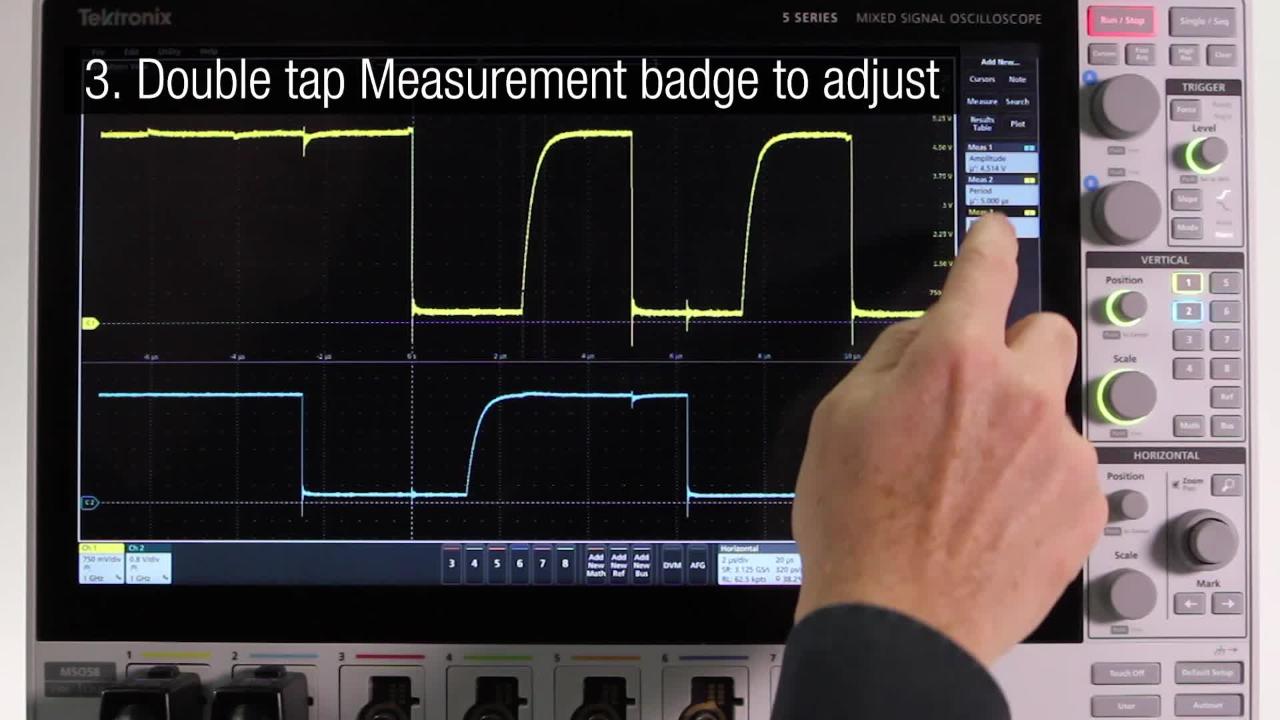

校准仪器 How to Make Automated Measurements Automated measurements provide quick, precise insights with a simple drag-and-drop.

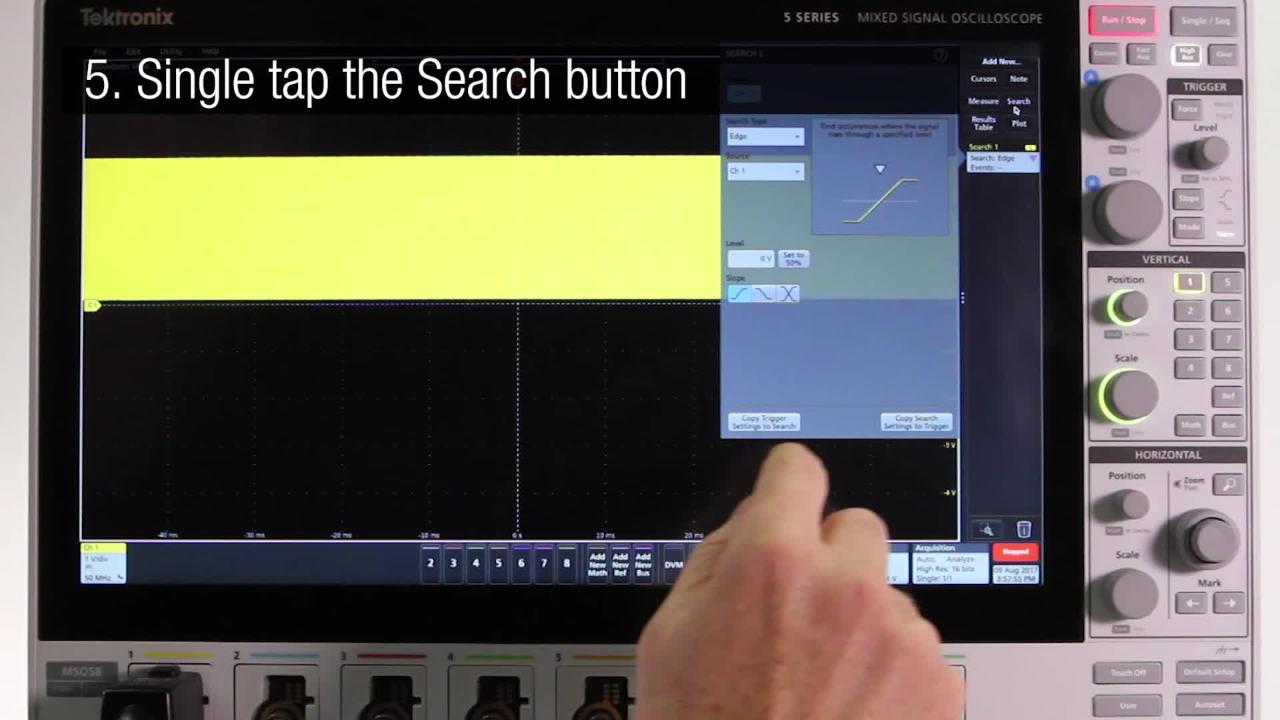

综合测试仪 How to Use Wave Inspector to Search and Mark Events Learn how the Wave Inspector can help you quickly set up event searches and mark all occurrences across the record.
电信号测试仪 The Team Behind the 5 Series MSO Watch some of the team members behind the innovative new Tektronix 5 Series MSO talk about the challenges they faced and how they overcame them.

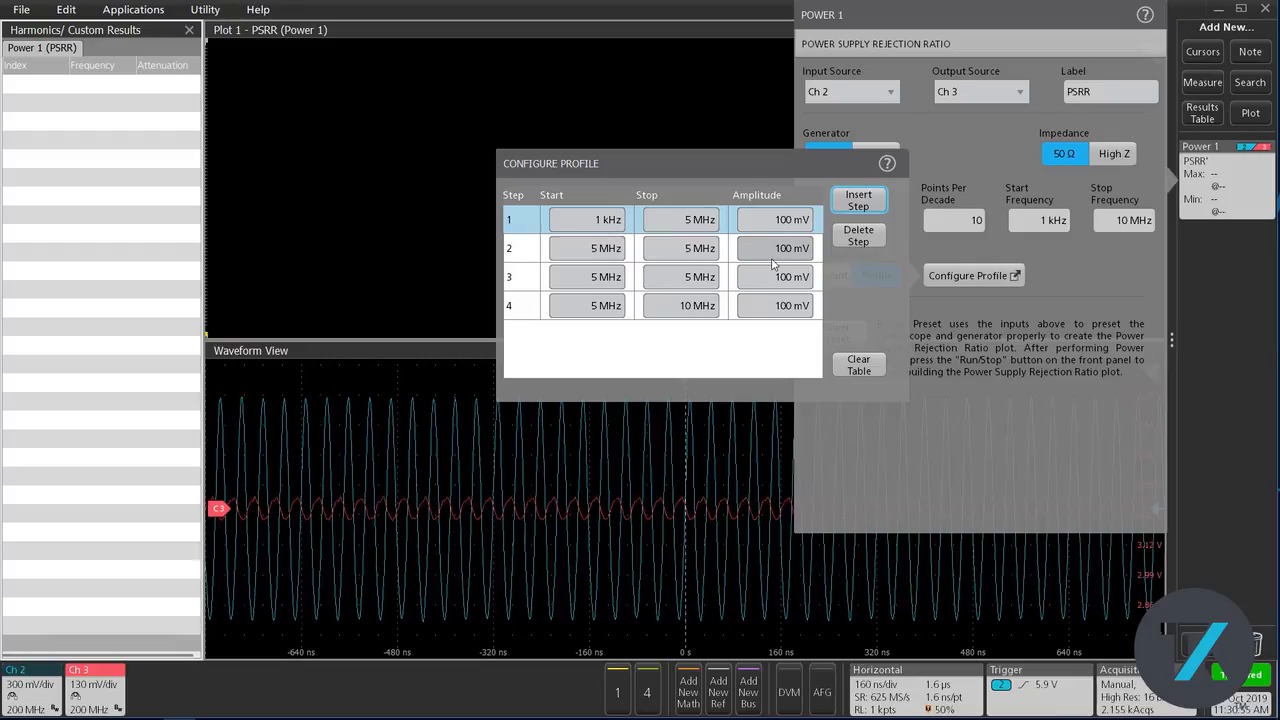

示波器 Power Supply Rejection Ratio on an Oscilloscope Learn how to get optimal results from your power supply design by checking the power supply rejection ratio. This video covers how DC-DC  converters or low voltage drop-out regulators (LDOs) …
Low amplitude RF emission analysis with RF vs Time Triggering Low amplitude RF emission analysis with RF vs Time Triggering See how the RF vs Time hardware triggering capability (Spectrum View) on the 4, 5, and 6 Series MSO oscilloscopes can capture a low amplitude RF emission.  This video focuses on the low amplitude …

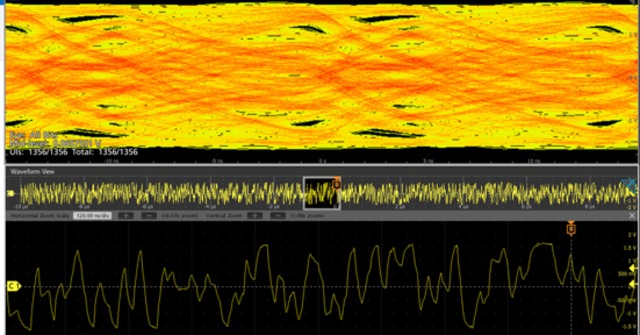

进口仪器 A New Way of Performing Multi-Channel Spectrum Analysis on an Oscilloscope If you're doing mixed frequency/time domain work, Spectrum View makes it easy. Learn how to set up 5 and 6 Series MSOs to display synchronized time and frequency domain views on multiple channels …

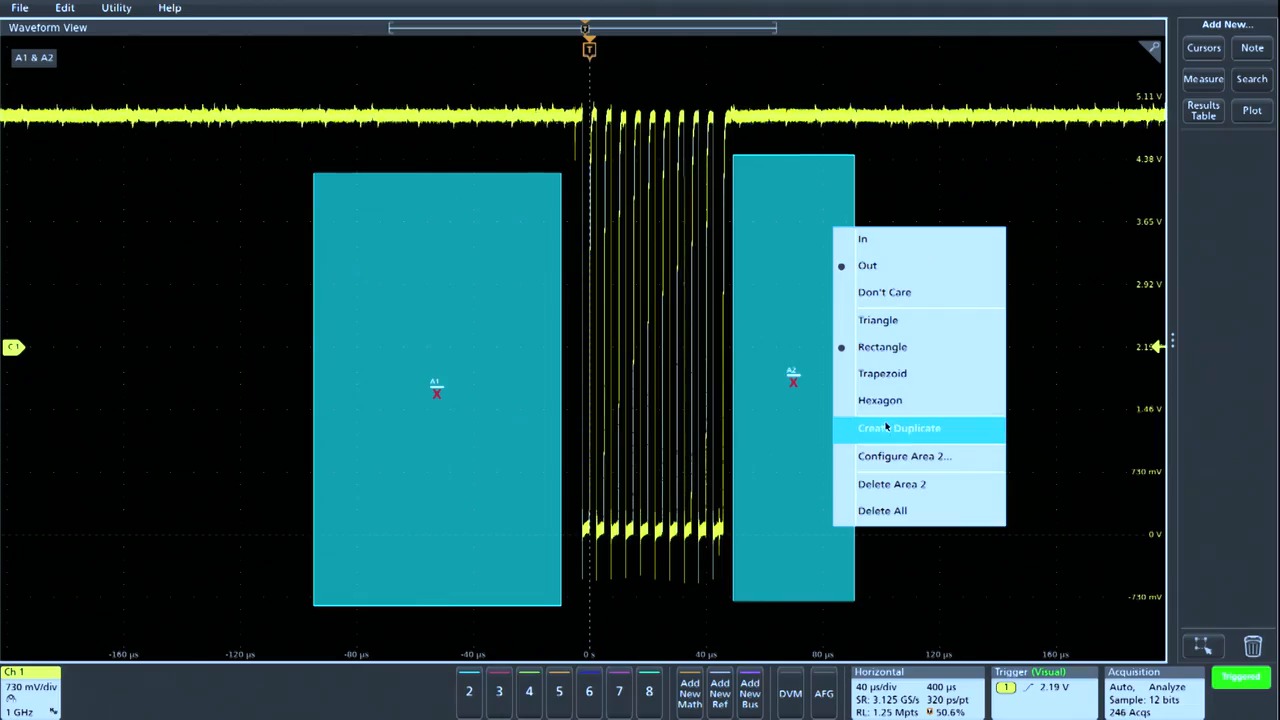

校验仪 How to Use Oscilloscope Visual Triggers Build complex waveform triggers simply by drawing shapes Learn how to quickly capture bursts just by drawing a couple of boxes, and how to apply logic and add more shapes to capture increasingly complex waveforms. See how visual triggers work on the 5 …
泰克数字测试方案 How to use FastFrame Segmented memory on the 5 Series MSO oscilloscope Get a 6-minute introduction to the Fastframe segmented memory feature on the 5 Series MSO. FastFrame enables high-quality data with the efficient use of memory. Learn how to get off the ground …

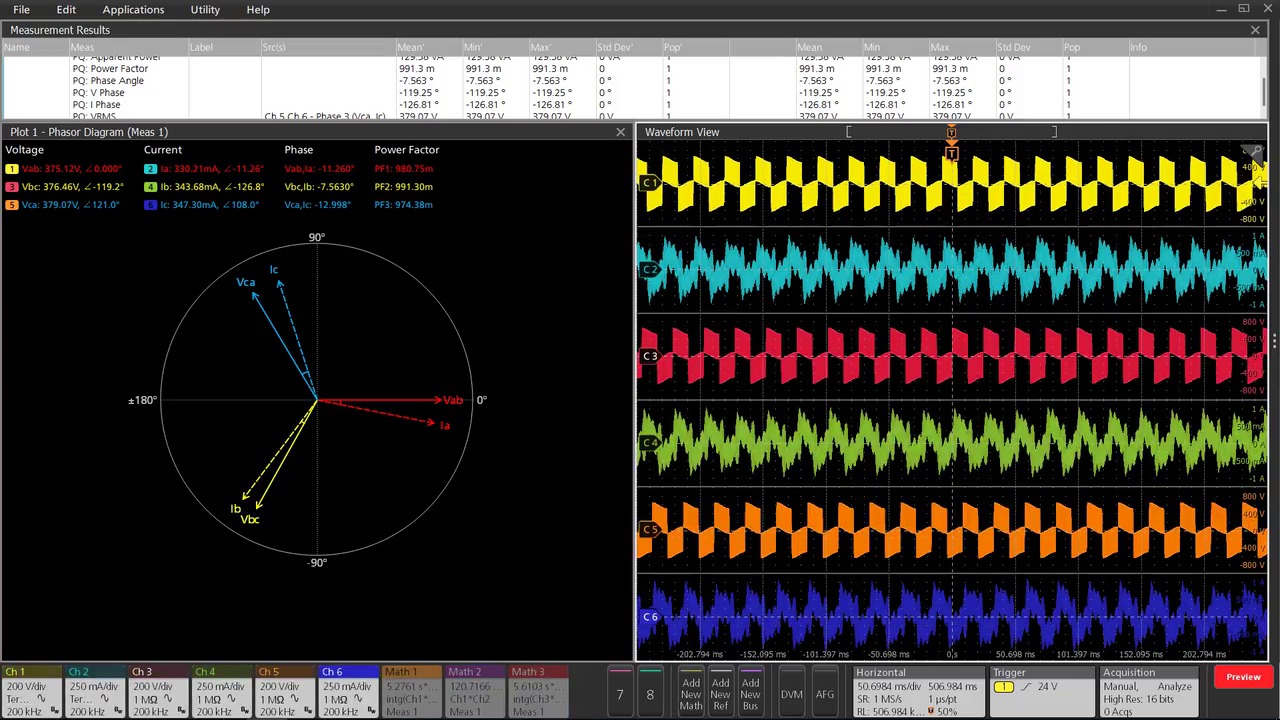

Tips and techniques for setting up your Tektronix 4_5 or 6 Series MSO display Tips and techniques for setting up your Tektronix 4 Series, 5 Series or 6 Series MSO display Watch how easy it can be to setup and analyze waveform behavior using the highly intuitive touch interface. Setting up your measurement and debugging your system has never been easier with the …

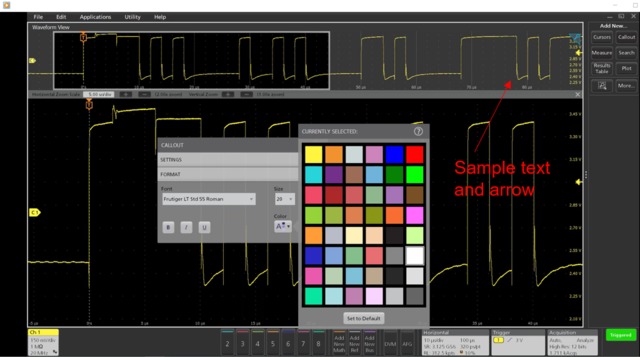

How to use Callouts on 4  5  6 Series MSOs How to use Callouts on the 4 Series, 5 Series and 6 Series Mixed Signal Oscilloscopes Learn how to annotate test results and methods with “Callouts” for easily documenting important information when sharing data across a team, recreating a measurement at a later date, or delivering …

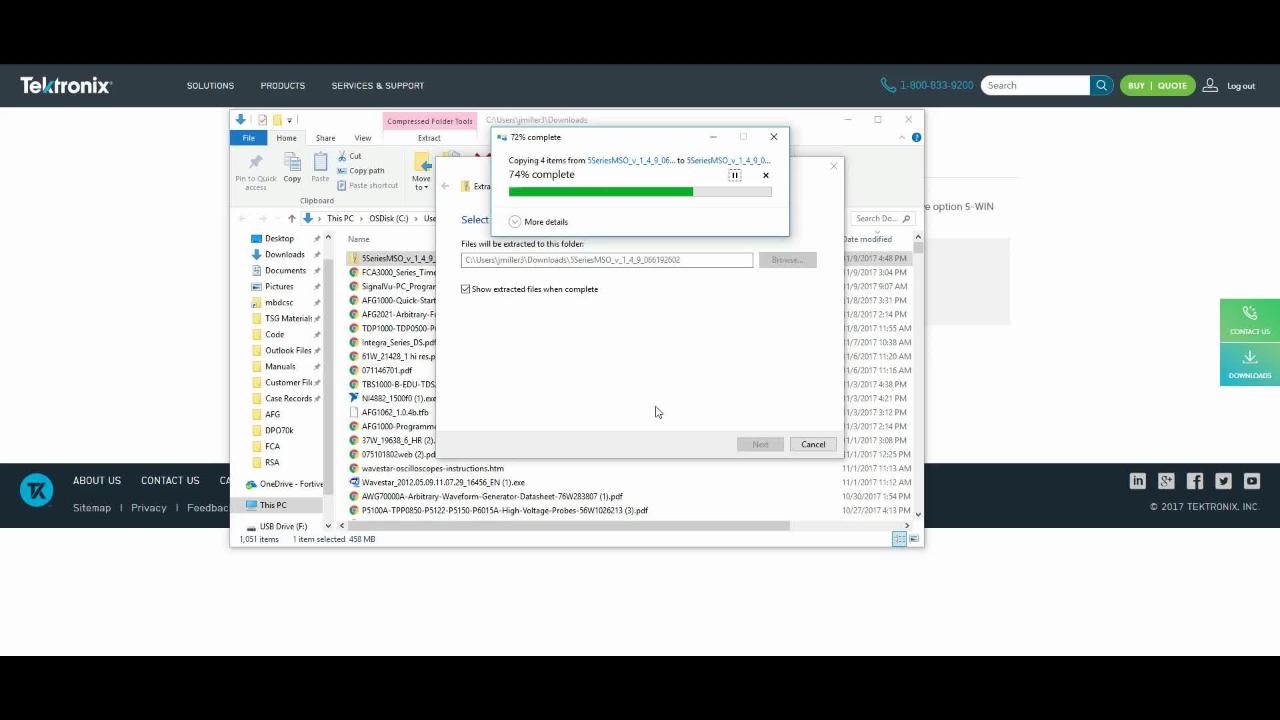

泰克解决方案 How to Install 5 Series MSO Firmware This video demonstrates how to update the firmware on the 5 Series MSO.
示波器测试 Introducing the 5 Series MSO Mixed Signal Oscilloscope Experience the 5 Series MSO, the scope that changes everything.

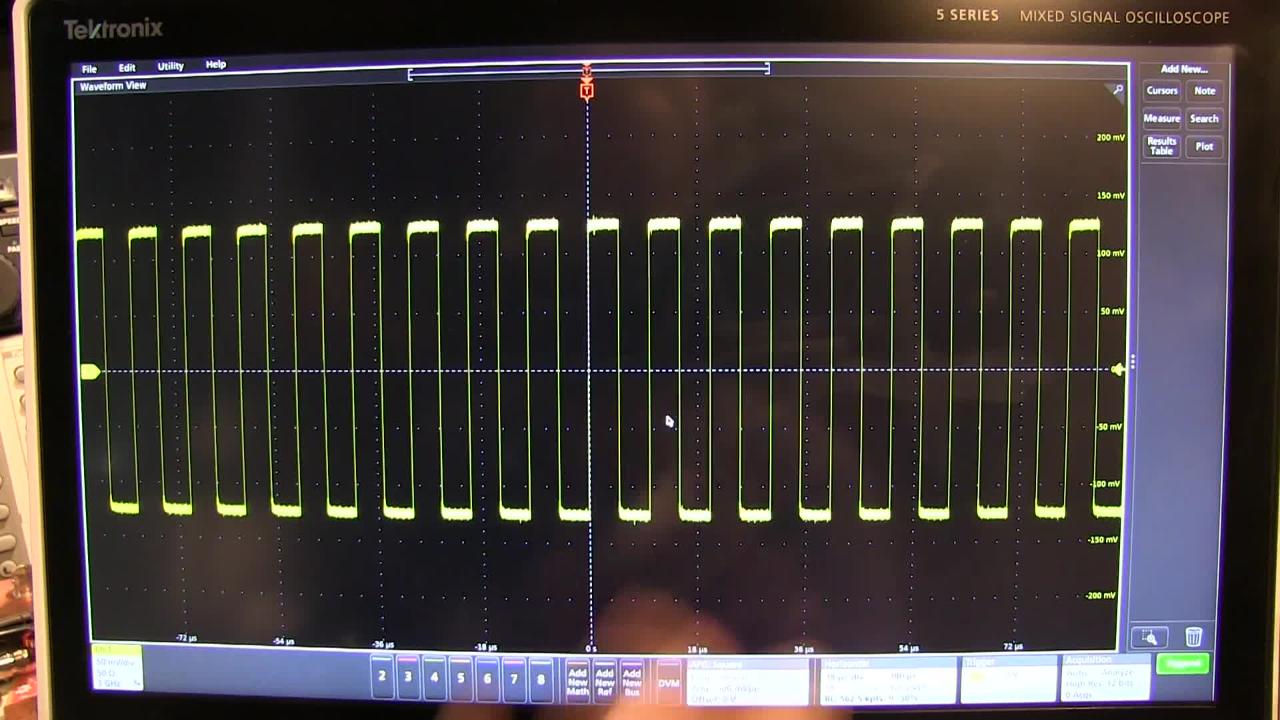

5 Series MSO Highlights 5 Series MSO Highlights Watch this short video to explore some of the great features of the new 5 Series MSO oscilloscope.
3 Phase Inverter Motor Drive Analysis IMDA on 5 Series MSO 3 Phase Inverter Motor Drive Analysis (IMDA) on the 5 Series MSO During the design and validation of systems that utilize 3 Phase power, it can be difficult to correlate control systems and power electronics with the performance of the overall system. Watch how …
How to change the font size on the 4 Series 5 Series or 6 Series MSO display How to change the font size on the 4 Series, 5 Series or 6 Series MSO display Watch how to easily change the font size used on your 4/5/6 Series MSO with just a few clicks. This will make it easier to read measurement values at a distance from your scope or maximize the …

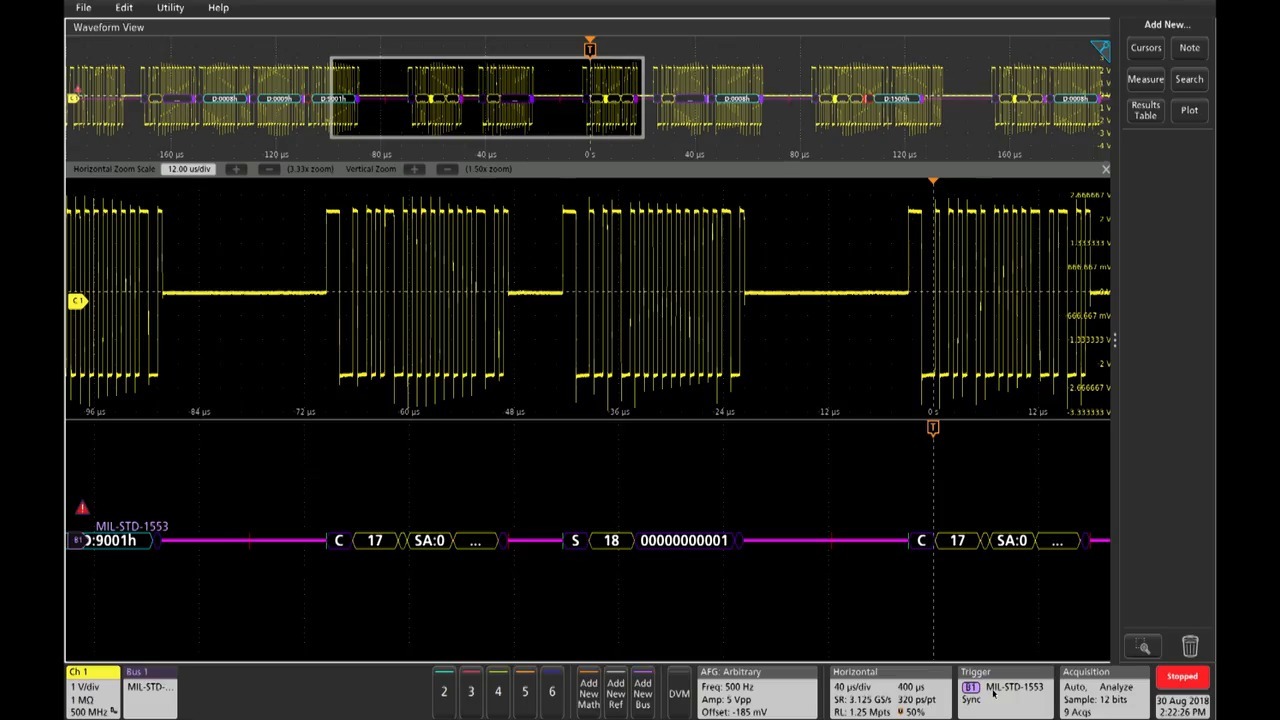

泰克数字测试仪 MIL-STD-1553 bus support Learn how 5 and 6 Series MSO Mixed-Signal Oscilloscopes and the optional embedded serial bus analysis software provide unparalleled system visibility by decoding MIL-STD 1553 messages, triggering …

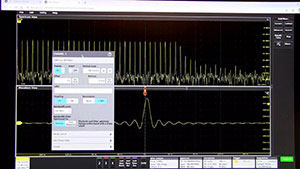

电信号分析仪 How to Control a Tektronix Oscilloscope Over a LAN Learn how to use the eScope function to remotely control a Tektronix oscilloscope over a network without any special software. This video shows how to find the IP address of the scope and use a …

升级

描述

TLP058 逻辑探头

各探头访问任一 5 系列 MSO 上任何 FlexChannel 上的8条数字通道

增加仪器功能

升级

描述

采购详情

SUP5-AFG

增加任意函数发生器

申请试用许可证

索取报价

SUP5-DVM

增加数字电压表/触发频率计数器

注册时提供的软件升级许可文件。
立即注册。

SUP5-RL-125M

将记录长度增至 125 M 点/通道

申请试用许可证

索取报价

SUP5-WIN

增加安装 Windows 10 系统许可的可移除固态硬盘。

无法试用

索取报价

增加协议分析

升级

描述

SUP5-SR8B10B

8b10b 协议解码器和搜索

SUP5-SRAERO

航空串行触发和分析(MIL-STD-1553、ARINC429)

SUP5-SRAUDIO

音频串行触发和分析(I2S、LJ、RJ、TDM)

SUP5-SRAUTO

汽车串行触发和分析(CAN、CAN FD、LIN 和 FlexRay)

SUP5-SRAUTOEN1

100BASE-T1 汽车以太网协议解码软件

SUP5-SRAUTOSEN

汽车传感器串行触发和分析 (SENT)

SUP5-SRCOMP

计算机串行触发和分析 (RS-232/422/485/UART)

SUP5-SREMBD

嵌入式串行触发和分析模块(I2C、SPI)

SUP5-SRENET

以太网串行触发和分析(10Base-T、100Base-TX)

SUP5-SRI3C

MIPI I3C 解码和分析

SUP5-SRNRZ

NRZ 协议解码器和搜索

SUP5-SRPM

电源管理串行触发和分析 (SPMI)

SUP5-SRPSI5

PSI5 串行解码和分析

SUP5-SRSPACEWIRE

SpaceWire 协议解码和分析

SUP5-SRUSB2

USB 2.0 串行总线触发和分析(LS、FS、HS)(HS 的 ≥ 1 GHz 建议模型)

增加串行一致性分析

升级

描述

SUP5-CMAUTOEN

汽车以太网(100Base-T1 和 1000BASE-T1)自动化一致性测试解决方案

SUP5-CMUSB2

USB 2.0 自动化一致性预测试解决方案

SUP5-CMENET

以太网 (10/100/1000BASE-T) 一致性测试解决方案

SUP5-DBLVDS

适用于 5 系列 MSO 示波器的自动化 LVDS 测试解决方案

SUP5-AUTOEN-BND

汽车以太网一致性、信号分离、PAM3 分析、100BASE-T1 解码软件

SUP5-AUTOEN-SS

使用 TekExpress 自动化平台的信号分离解决方案(很小带宽 1 GHz)

SUP5-CMINDUEN10

工业以太网(10Base-T1L 长距离)自动化一致性测试解决方案

SUP5-PAM3

使用 TekExpress 自动化平台的 PAM3 自动化一致性解决方案(很小带宽 1 GHz)

增加高级分析

升级

描述

SUP5-DPM

完整的数字电源管理分析和调试解决方案(包括 DPMBAS 中的所有测量 + 抖动分析和眼图分析)

SUP5-DPMBAS

基本数字电源管理分析和调试解决方案(包括电源序列分析、瞬态分析和纹波分析)

SUP5-DJA

高级抖动和眼图分析

SUP5-IMDA

逆变器、电机和驱动器分析

SUP5-MTM

模板和极限测试

SUP5-PWR

功率分析

SUP5-SV-BW-1

频谱视图捕获带宽达 500 MHz

SUP5-SV-RFVT

频谱视图射频与时间分析

SUP5-VID

模拟视频触发(NTSC、PAL、SECAM)

升级带宽

升级

描述

采购详情

SUP5-BWxTy8

MSO58 带宽从 x 升级为 y,其中,x 和 y 均为几百 MHz

  • 在现场把带宽很多升级到 1 GHz。

  • 升级为 2 GHz 需要在泰克维修中心通过 IFC 或 IFCIN 选件进行安装。

  • 从 350 或 500 MHz 到 1 或 2 GHz 的带宽升级中还包括每个通道附带一个 TPP1000 1 GHz 无源探头。

SUP5-BWxTy6

MSO56 带宽从 x 升级为 y,其中,x 和 y 均为几百 MHz

SUP5-BWxTy4

MSO54 带宽从 x 升级为 y,其中,x 和 y 均为几百 MHz
