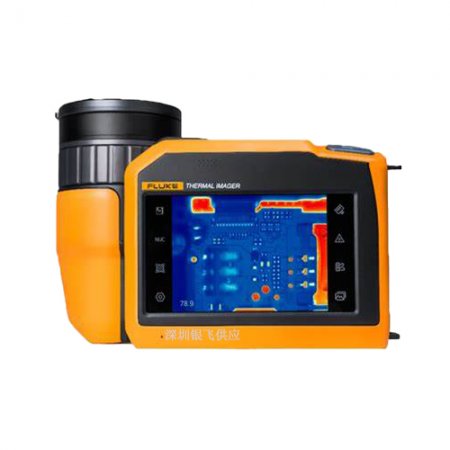

Fluke TiX1060红外热像仪 的技术分享。产品概述开始， 福禄克 TiX1060热像仪分辨率为1024x768的新型福禄克TiX1060热像仪具有卓越的图像质量，非常适合研发工程师和科研人员。帧率高达25Hz，可保留更多细节，满足捕捉快速变化温度的测试需求。 TiX800/TiX1000 系列热像仪（以下简称产品或成像仪）是诊断红外成像相机可用于许多应用，包括设备故障排除、诊断、预防性和预测性维护、建筑诊断和能源效率评估，以及各行业的产品开发或科学研究。 成像仪在高可......
产品描述
Fluke TiX1060红外热像仪的技术分享。产品概述开始，福禄克TiX1060热像仪分辨率为1024x768的新型福禄克TiX1060热像仪具有卓越的图像质量，非常适合研发工程师和科研人员。帧率高达25Hz，可保留更多细节，满足捕捉快速变化温度的测试需求。
TiX800/TiX1000 系列热像仪（以下简称“产品”或“成像仪”）是诊断红外成像相机可用于许多应用，包括设备故障排除、诊断、预防性和预测性维护、建筑诊断和能源效率评估，以及各行业的产品开发或科学研究。
成像仪在高可见度的工业级OLED触摸屏上显示热图像。这成像仪可以将图像保存到内部存储器或可移动SD存储卡中。您可以转移图像和数据存储在内部存储器或存储卡上，使用Type-C USB存储到 PC成像仪上的2.0高速接口和PC上的USB端口。您可以传输全辐射测量通过HDMI接口将视频实时传输到显示器、电视或其他视频显示设备。
该成像仪包括专业的热图像分析软件–SmartViewTM IR。这SmartView IR是一款高性能、专业的热图像分析软件，用于热图像分析、全辐射视频分析和专业热图像报告。
对于户外应用，TiX1060配备了自动对焦技术，允许用户从远处对焦目标。结合1至35倍的连续数码变焦，用户可以清晰地查看远处目标上的小细节。成像仪由智能可充电锂离子电池供电。方便户外使用。
福禄克 TiX1060红外热像仪配备全180度铰接镜头，使热像师能够轻松地在物体上方、下方和周围导航，从而轻松预览和捕获图像。结合超分辨率技术，TiX1060可以实现2048×1536像素的图像分辨率。
Fluke TiX1060热像仪主要特点
高清画质
非制冷红外探测器支持的1024×768分辨率。
<30mK 热灵敏度，可捕获清晰的图像。 手动/自动对焦技术可实现精确对焦并高效捕获高质量图像。 无可比拟的捕捉灵活性全180度铰接镜头。5.5英寸OLED触摸屏，操作高效方便。 锂电池提供> 3.5小时的电池续航时间，适合户外使用。
高级板载分析和流媒体
用于研发应用的SmartView IR PC软件。
视频流输出，用于可视化辅助显示器上的最小温度变化。
福禄克 TiX1060标准配置（装箱清单Accessories）
1、型号：Fluke TiX1060热像仪主机
2、福禄克 TiX1060热像仪（标准镜头）
3、可充电锂离子电池（3 节）
4、充电器
5、镜头盖
6、USB连接线
7、HDMI线
8、高速SD卡
9、读卡器
10、安全信息
11、快速参考指南
12、手带
13、颈带
14、硬质手提箱
可选镜头（Optional lens）
TIX1000 4倍长焦、TIX1000 9倍长焦
TIX1000 2倍长焦、TIX1000 12C 长焦镜头
TIX1000 2倍宽，TIX1000 46倍宽
TIX1000微型，TIX1000 50UM 微型
规格书Specifications: Fluke TiX1060Thermal Camera
| Detector | |
| Image resolution | 1024x768 |
| Super Resolution | Yes (enhanced to 2048x1536 pixels) |
| Thermal sensitivity (NETD) | <30 mK @ 30 °C |
| Field of View (FOV) | 25°x19° (standard lens) |
| Spatial Resolution (IFOV) | 0.43 mrad |
| Digital zoom | 1x to 35x continuous zoom |
| Detector type | Focal Plane Array (FPA), uncooled infrared detector |
| Detector pixel spacing | 17 μm |
| Spectral range | 8 to 14 μm |
| Lens aperture | F1.0 |
| Lens recognition | Auto |
| Minimum focus distance | 0.5 m |
| Focus System | Auto [motorized focus]/Manual |
| Frame rate | 13 Hz, full window; 25 Hz, 1/2 window |
| Measurement and Analysis | |
| Temperature range |
-40 °C to 700 °C（-40 °C to 150 °C; 0 °C to 350 °C; 0 °C to 700 °C) High temperature option: expanded to 2000 °C (300 °C to 2000 °C) |
| Temperature accuracy |
±1 °C or 1% of rdg (whichever is greater), -10 °C to 150 °C temperature measurement range ±2 °C or 2% of rdg. (whichever is greater), other temperature ranges |
| Auto high/low temperature capture | Yes |
| Reference temperature compensation | Yes. The full-screen and measurement mark temperature are displayed as the difference between the actual temperature and the fixed temperature |
| Automatic temperature difference calculation |
Calculation of the difference between measurement marks or between a measurement mark and the fixed reference temperature |
| Point temperature measurement | 10 points |
| Area temperature measurement | 5 areas (rectangle or circle) |
| Line temperature measurement | 10 lines |
| Temperature measurement methods |
The highest and lowest temperature can be set within an area, and the highest/lowest temperature point can be automatically located |
| Correction settings | Emissivity, Reflected Temperature (Background Temperature), Transmittance, Humidity, Ambient Temperature, Test Distance, Atmospheric Transmission Correction |
| Full-screen emissivity correction | 0.01 to 1.00 in steps of 0.01, built-in common material emissivity table |
| Area emissivity correction | Yes |
| On-imager analysis | Perform point, area and line temperature analysis on saved thermal images |
| Analysis software | Standard SmartView IR software |
| Supported languages | Simplified Chinese/English |
| Image Display | |
| Display | OLED touchscreen, 170° visual range |
| Display size | 5.5 inches |
| Display contrast | 100000 : 1 |
| Display resolution | 1920x1080 pixels, 1080P Ultra HD display |
| Digital image enhancement | Yes |
| Settings for On-Screen Display (OSD) |
Yes. Users can define OSD, such as the maximum, minimum, average temperature, full-screen emissivity and reflected temperature |
| Settings for information display of temperature measurement mark | Yes. Each temperature measurement mark can be set separately, such as emissivity |
| Built-in digital camera | 5.0 MP, auto focus |
| LED torch/flashlight | Yes |
| Picture-in-Picture (PIP) | Yes |
| Color palettes | 30 palettes (15 standard palettes, 15 inverted palettes) |
| Manual image adjustment | Yes |
| Auto image adjustment | Yes |
| Minimum temperature span (in manual mode) | 2 °C |
| Minimum temperature span (in auto mode) | 4 °C |
| Video | |
| Fully-radiometric infrared video recording | Recorded to the Imager and PC |
| Fully-radiometric infrared video recording (frame rate adjustable) | Adjustable frame rate range: 1 to 12 Hz |
| Fully-radiometric infrared video streaming | Transfer via USB 2.0 |
| Non-radiometric infrared video streaming | Transfer via HDMI |
| Auto capture | Customized frame rate or interval |
| Professional Function | |
| Color alarm (isotherm) | Yes |
| Audible alarm | High/low temperature alarm |
| Automatic naming of thermal images | QR code supported |
| Voice annotation | Yes. 200 s of voice annotation for every image |
| Text annotation | Simplified Chinese/English/Numbers |
| Storage and Transfer | |
| Image viewing | Thumbnail view navigation and view selection |
| Storage medium | Built-in 16 GB flash + 128 GB high-speed SD card |
| SD card | Yes |
| IR image file format | Standard JPEG format, including measurement data |
| Video file format | .mp4, .IS5 |
| Visible image file format | Standard JPEG format, automatically associate with infrared images |
| Audio | Yes |
| Transfer interface | USB Type-C, HDMI, SD card, Bluetooth |
| Bluetooth transfer | Yes. The saved files can be transferred to a PC via Bluetooth. |
| GPS | GPS location information is automatically added to each static image captured outdoors |
| Remote display viewing |
Yes. View thermal video stream on your PC or a display terminal (Connect to the Smartview IR software on PC via USB, or connect to a display terminal via HDMI) |
| Remote control operation | Yes. Through the SmartView IR Software |
| USB function |
Transfer fully-radiometric thermal image video stream to a PC; read the Imager’s internal flash memory data; read SD card data |
| USB | USB 2.0 |
| Antenna | Internal |
| Power and Environment | |
| Battery type | 3 Rechargeable Li-ion batteries |
| Battery life | > 3.5 hours for continuous use (ambient temperature of 25 °C) |
| Weight | 1822 g (with battery) |
| Dimensions | 151mmx214mmx92mm |
| Rotatable lens | 180° rotatable lens |
| Test Standards |
EN 61326-1 EN 301489-1/-17 EN 300328 EN 303413 IEC 301489-19 EN 60825-1 FCC 47 CFR Part 15 KS C 9832:2019 KS C 9835:2019 |
| Tripod mounting base | UNC 1/4''-20 standard tripod mounting thread |
| Warranty | 2 years for the Imager, 10 years for the detector |
| Recommended calibration period | 2 years (assuming normal operation and aging) |
