KINAX WT707多功能角位变送器多个使用案例
KINAX WT707多功能角位变送器多个使用案例。适用于恶劣环境下的工业应用。KINAX WT707是一种非常坚固的绝对角度位置变送器，由于其独特的电容测量原理，特别适合在恶劣环境中的应用。它以非接触方式获取轴的角度位置，并将其转换成与测量值成比例的外加直流电。WT707带无接触电容式感应系统的测量变送器，用于获取轴的角位置。在测量输出端读取范围为4到20 mA的与负载无关的DC信号。由于其坚固的设计，KINAX WT707主要用于机械制造和造船。
专利非接触式电容系统/无磨损
模拟测量方法，几乎无限分辨率
旋转角度测量范围：0 .. 5至0 .. 270°，不带齿轮箱0 .. 10°到0 .. 1600圈，带齿轮箱
测量输出：0 .. 1至0/4 .. 20 mA 2、3或4线制连接
符合Ex ia IIC T6的“本质安全”防爆保护，可在爆炸性环境中使用
用电位计调节量程/优化适应所需的量程
输出量特性：线性或特性曲线
驱动轴可以无限旋转：即使超出测量范围的上限值，也不会发生损坏。
坚固外壳中的表面安装装置：抗振动和冲击，适用于机械制造和造船业
具备海上执行能力（以前是GL，Germanischer Lloyd）
不久前，布鲁塞尔地铁(Figure2)以72km/h过弯道时产生很大噪音，法国铁路运输公司(S.T.I.B.)因此想要寻找一个系统来润滑弯道导轨。润滑可减少轨道磨损和降低噪音水平。
这个应用的核心是一个坚固的角位变送器KINAXWT707安装在火车转向架的轴承上，当向右转弯时，润滑右内轨道，当向左转弯时，润滑左侧轨道。角位置传感器的灵敏度足以在500米的长弯道和72公里/小时的相对高速下发挥润滑作用。

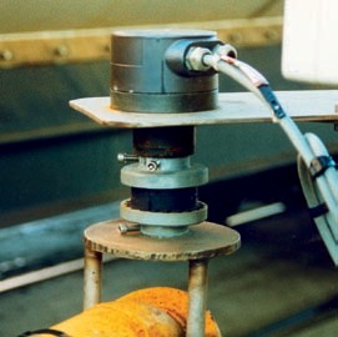

往气罐内装满液态氨是个细致活。装载过程中气罐一个小小的错误动作都会导致氨气的大量释放，对人和环境造成伤害，法国马津加德氨气工厂就成功使用了KINAXWT707角位变送器。WT707监测氨气填充过程中的气罐位移。为此，KINAX WT707安装在固定臂和活动臂之间的旋转点上。如果气罐移动导致活动臂移动超过±5...10cm(±1°)，这样的变化被传输到控制系统。触发器立刻执行安全操作，比如关闭充气管的阀门，发出警报并进行警报登记。
除此之外，KINAXWT707还有很多其它的应用，例如油罐或沼气池（易燃易爆环境）的液位测量，船舶上舵的位置测量，吊桥的倾角等等，我们的KINAX产品经受市场的多年验证，依然安全可靠的工作着。即使在恶劣的使用环境，也不会产生由于磨损原因的维修需要，大大节省了维修时间和成本。
更多参考文章可以查阅德国KINAX系列角位变送器的广泛行业应用案例、德国KINAX WT707角位变送器-粮油工程行业的应用、Kinax WT707-142DA051/HLM角位变动器精确测定航运船舵和螺旋桨位置、GMC-I 带轴角位变送器KINAX WT707、KINAX WT707多功能角位变送器多个使用案例。
文章来源于银飞
| Despription | Blocking code | No-go with blocking code | Order- Code | ||
| KINAX WT707 Order-Code 707 - xxxx xxxx xxxx xx | 707- | ||||
| 1. |
Version of the transmitter Standard |
A |
1 |
||
| ATEX EX II 2G Ex ia IIC T6 Gb | B | 2 | |||
| Sea water version | N | 3 | |||
| Sea water version with gear | O | 4 | |||
| ATEX EX II 2G Ex ia IIC T6 Gb, sea water version | BN | 7 | |||
| ATEX EX II 2G Ex ia IIC T6 Gb, sea water version with gear | BO | 8 | |||
| IECEx Ex ia IIC T6 Gb | B | A | |||
| IECEx Ex ia IIC T6 Gb, sea water version | BN | B | |||
| IECEx Ex ia IIC T6 Gb, sea water version with gear | BO | C | |||
| 2. |
Sense of rotation Calibrated for sense of rotation clockwise |
D |
1 |
||
| Calibrated for sense of rotation counter-clockwise | D | 2 | |||
| For V-characteristic (not possible for instruments with additional gear). | E | 3 | |||
| Calibrated for both senses of rotation (for measuring ranges ≤ 90° only) | M | 4 | |||
|
Lines 1 and 2: Instruments with ranges 0 … ≥ 5 to 0 … ≤ 150° are usable in both senses of rotation. Instruments with ranges 0 … > 150° to 0 … ≤ 270° can be changed to the other direction (Beginning and end of the measuring range must be readjusted). Sense of rotation for transmitters with additional gear see “Feature 13 and 14”. |
|||||
| 3. |
Measuring range (measuring input) 0...10° angle |
1 |
|||
| 0...30° angle | 2 | ||||
| 0...60° angle | 3 | ||||
| 0...90° angle | 4 | ||||
| 0...180° angle | 5 | ||||
| 0...270° angle | 6 | ||||
| Non-standard (0 to ≥ 5° to 0 to < 270°) [angle] | 9 | ||||
| V-characteristic [±angle] | A | ||||
| Despription | Blocking code | No-go with blocking code | Order- Code | ||
| KINAX WT707 Order-Code 707 - xxxx xxxx xxxx xx | 707- | ||||
|
Line 9: Non standard 0... ≥ 5 to 0... < 270 Calibrated for both senses of rotation, non standard range 0... ≥ 5 to 0... < 90° Line A: Specify start MA and end ME of measuring range! Observe the limits for (MA [± °] ≥ 10 and ME [± °] ≤ 150) and give both angles separated by an oblique stroke, e.g. [± °] 15 / 90! |
|||||
| 4. |
Output signal (measuring output) / Connection version 0...1 mA, 3- or (4)-wire connection |
A |
|||
| 0...5 mA, 3- or (4)-wire connection | B | ||||
| 0...10 mA, 3- or (4)-wire connection | C | ||||
|
4...20 mA, 2-wire connection or 0...20 mA, 3- or (4)-wire connection (adjustable with poteniometer) |
H | D | |||
| 4...20 mA, 3- or (4)-wire connection | E | ||||
| 0...20 mA, 4-wire connection (only possible with AC/DC-power supply (DC-, AC-power pack)) | L | F | |||
| Non standard, 3- or (4)-wire connection 0...>1.00 mA to 0... <20 mA [mA] | Z | ||||
|
Lines A to Z: Rext max. see Section “Technical data”, 4-wire connection, with electric isolation only possible with DC/AC power supply (AC/DC power pack). 2-, 3- or 4-wire connection, without electric isolation only possible with DC power supply. |
|||||
| 5. |
Power supply 24...60 VAC/DC, with electric isolation |
F |
BH |
1 | |
| 85...230 VAC/DC, with electric isolation | F | BH | 2 | ||
| 12...33 VDC, without electric isolation | K | BL | A | ||
| 12...30 VDC (Ex), without electric isolation | K | AL | B | ||
| Lines 1 and 2: Not possible for DC/AC power supply at output signal “Feature 4, line D”! | |||||
| 6. |
Mounting mode Without foot/flange |
0 |
|||
| With foot (mounted) | 1 | ||||
| With flange (mounted) | 2 | ||||
| 7. |
Material of transmitter rear cover / Routing of connection cable Plastic / connector less cable plug, socket mounted for cable routed to the rear |
P |
1 |
||
| Plastic / connector less cable plug, socket mounted for cable routed to the front | P | 2 | |||
| Plastic / connector with cable plug, socket mounted for cable routed to the rear | P | 3 | |||
| Plastic / connector with cable plug, socket mounted for cable routed to the front | P | 4 | |||
|
Metal / 2 glands PG11 Recommeded for AC/DC power supply, 4-wire connection with electric isolation |
5 |
||||
| 8. |
Special features Without (order code complete) |
Y |
0 |
||
| With | 1 | ||||
| 9. |
Settings (span adjustment) Without extended setting range |
0 |
|||
| Extended setting range + 5 % /-60 % | Y | A | |||
| Restriction: for angle ≥ 60°, supplementary error 0.2 % also possible on versions with additional gear | |||||
| Despription | Blocking code | No-go with blocking code | Order- Code | |||
| KINAX WT707 | Order-Code 707 - xxxx xxxx xxxx xx | 707- | ||||
| 10. |
Improved climatic rating Without improved climatic rating |
0 |
||||
|
Temperature -40 to +70 °C, annual mean relative humidity ≤ 90 % |
BY | H | ||||
| With Ex version, temperature -40 to +55 °C at T6 resp. -40 to +70 °C at T5 resp. -40 to +75 °C at T4, annual mean relative humidity ≤ 95 % | AY | J | ||||
| 11. |
Marine version Without |
Y |
0 |
|||
| Maritime execution (formely Germ. Lloyd) | Y | L | ||||
| 12. |
Increased vibration restistance Standard |
G |
FYO |
0 |
||
| Version with DC power supply, without electric isolation | G | KYO | M | |||
| Version with AC/DC power supply (AC/DC power pack), with electric isolation | N | |||||
|
0 … 200 Hz, 25 g continuous, 30 g for 2 h 200 … 500 Hz, 15 g continuous Not possible with additional gear! |
||||||
| 13. |
Additional gear 2 : 1 to 144 : 1 Choose the full scale value of KINAX WT 707 (without gear) ME ≤ 150°. Limit of error: ≤ 0,5 % for ME ≤ 150° and ≤ 1,5 % for ME ≥ 150°. Determine the required reduction ratio to the following formula: n · 360 [°] i = Reduction ratio i = ME [°] n = No. of turns (end of range of object being measured) ME = Full scale value of KINAX WT 707 (without gear). If “ME” is higher but max. ≤ 150°) and “i” is as small as possible the the hysteresis error will be smaller. Example of calculation of the error of the hysteresis; known are: n = 4.1 rotations, i = 10, ME = 147.6° and j = approx. 1.0° j = gear backlash F % = 100% · j · i = 100 · 1.0 · 10 = approx. 0.68% error of the n · 360° 4.1 · 360 hysteresis Gear backlash approx. 1.0° for 2 ≤ i ≤ 12.5 approx. 1.5° for 12.5 < i ≤ 60 approx. 2.0° for 60 < i ≤ 1600 |
|||||
| Without gear 2 : 1 - 144 : 1 | 0 | |||||
| Transformation | 2 : 1 | J | EGYN | 1 | ||
| Transformation | 4 : 1 | J | EGYN | 2 | ||
| Transformation | 5 : 1 | J | EGYN | 3 | ||
| Transformation | 6 : 1 | J | EGYN | 4 | ||
| Transformation | 8 : 1 | J | EGYN | 5 | ||
| Transformation | 10 : 1 | J | EGYN | A | ||
| Transformation | 12 : 1 | J | EGYN | B | ||
| Transformation | 12.5 : 1 | J | EGYN | C | ||
| Transformation | 15 : 1 | J | EGYN | D | ||
| Transformation | 16 : 1 | J | EGYN | E | ||
| Transformation | 20 : 1 | J | EGYN | F | ||
| Transformation | 22 : 1 | J | EGYN | G | ||
| Despription | Blocking code | No-go with blocking code | Order- Code | |
| KINAX WT707 Order-Code 707 - xxxx xxxx xxxx xx | 707- | |||
| Transformation 24 : 1 | J | EGYN | H | |
| Transformation 25 : 1 | J | EGYN | J | |
| Transformation 30 : 1 | J | EGYN | K | |
| Transformation 32 : 1 | J | EGYN | L | |
| Transformation 36 : 1 | J | EGYN | M | |
| Transformation 40 : 1 | J | EGYN | N | |
| Transformation 50 : 1 | J | EGYN | O | |
| Transformation 60 : 1 | J | EGYN | P | |
| Transformation 64 : 1 | J | EGYN | Q | |
| Transformation 72 : 1 | J | EGYN | R | |
| Transformation 75 : 1 | J | EGYN | S | |
| Transformation 80 : 1 | J | EGYN | T | |
| Transformation 100 : 1 | J | EGYN | U | |
| Transformation 120 : 1 | J | EGYN | V | |
| Transformation 144 : 1 | J | EGYN | W | |
| 14. |
Additional gear 150: 1 to 1600 : 1 Without gear 150 : 1 - 1600 : 1 |
0 |
||
| Transformation 150 : 1 | EGJYN | 1 | ||
| Transformation 160 : 1 | EGJYN | 2 | ||
| Transformation 180 : 1 | EGJYN | 3 | ||
| Transformation 200 : 1 | EGJYN | 4 | ||
| Transformation 240 : 1 | EGJYN | A | ||
| Transformation 250 : 1 | EGJYN | B | ||
| Transformation 300 : 1 | EGJYN | C | ||
| Transformation 330 : 1 | EGJYN | D | ||
| Transformation 360 : 1 | EGJYN | E | ||
| Transformation 375 : 1 | EGJYN | F | ||
| Transformation 400 : 1 | EGJYN | G | ||
| Transformation 450 : 1 | EGJYN | H | ||
| Transformation 480 : 1 | EGJYN | J | ||
| Transformation 500 : 1 | EGJYN | K | ||
| Transformation 550 : 1 | EGJYN | L | ||
| Transformation 600 : 1 | EGJYN | M | ||
| Transformation 660 : 1 | EGJYN | N | ||
| Transformation 720 : 1 | EGJYN | O | ||
| Transformation 750 : 1 | EGJYN | P | ||
| Transformation 800 : 1 | EGJYN | Q | ||
| Transformation 880 : 1 | EGJYN | R | ||
| Transformation 900 : 1 | EGJYN | S | ||
| Transformation 1000 : 1 | EGJYN | T | ||
| Transformation 1024 : 1 | EGJYN | U | ||
| Transformation 1200 : 1 | EGJYN | V | ||
| Transformation 1600 : 1 | EGJYN | W | ||
| 15. |
Test Protocole Without protocole |
0 |
||
| Protocole in German | D | |||
| Protocole in English | E | |||
