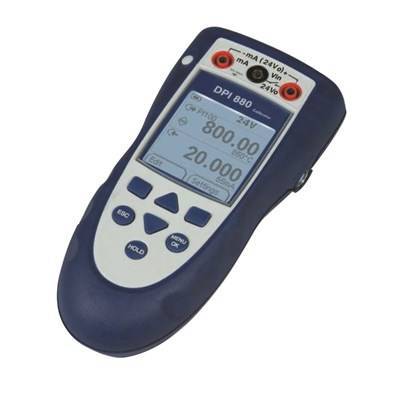

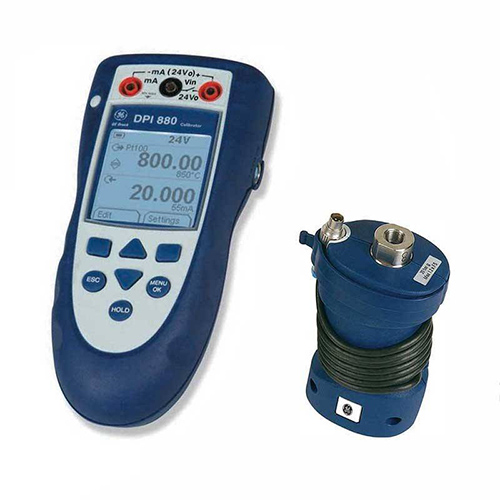

DRUCK德鲁克DPI880多功能校验仪
Druck DPI880多功能校验仪是一款小型便携式设备，用于测试、配置和校准各种工艺参数。相比竞品，DPI880体积小35%，并且拥有类似Windows的菜单驱动显示，操作简单易懂，减少了按键数量，界面更加直观。这款多功能校验仪集成了数据记录功能，无需携带额外的记录工具，极大地方便了用户。它就像一个手持式的校准实验室，可以迅速获取高精度数据并解决任何问题，大大节省了宝贵的操作时间。例如，使用Druck DPI 880多功能校验仪进行开关、跳闸和警报的准确测试，并在短时间内打印结果，而传统校验仪可能需要更长的时间且需要手动输入数据。另外，对于热电偶变送器的校准，使用传统方法可能需要一个小时，但使用DPI 880只需5分钟就能提供现成的打印结果。Druck DPI 880多功能检验仪能够测量并提供mA、mV、V、Ω、F、热电偶、RTD、脉冲和压力等多种参数，并支持捕捉开关值和24伏回路供电。这种强大的多功能性使得DPI 880成为测试、配置和校准几乎所有过程参数的理想工具。同时，它的双读数功能简化了校准和系统诊断过程，从而减少了技术人员的服务时间。
Compact and easy-to-use, the Druck DPI 880 multi-function calibrator tests, configures, and calibrates virtually all process parameters. The Druck DPI 880 multi-function calibrator is 35% smaller than competitive models and its Windows-like menu-driven display means fewer keys and simpler, easier-to-understand interface. The data logging capability means that users no longer need to carry additional recording tools.
The Druck DPI 880 multi-function calibrator is virtually a calibration lab in the palm of your hand. The user has the ability to obtain high precision data and address any issue in as much time as it takes to press a button, saving valuable operating time. For example, the Druck DPI 880 multi-function calibrator can accurately test switches, trips, and alarms and print the results in 5 minutes, while a traditional device would take up to 40 minutes and would require manual data entry. Thermocouple transmitter calibrations may take up to an hour using a conventional (older, more dated) tool that requires the use of look-up tables. The Druck DPI 880 multi-function calibrator is capable of providing the ready to print results in just 5 minutes.
The Druck DPI 880 multi-function calibrator measures and sources milliamps, millivolts, volts, ohms, frequency, thermocouples, RTDs, pulses, and pressure, captures switch values and provides 24 volt loop power. As such, the Druck DPI 880 multi-function calibrator is a powerful tool for testing, configuring, and calibrating virtually any process parameter. Dual readings of both input and output parameters simplify calibration and system diagnostics, reducing the amount of service time required by technicians.
The Druck DPI 880 multi-function calibrator shares common features with the other DPI 800 series models including a large, bright, backlit, full graphic display for easy reading in poor lighting conditions. Users benefit from the full graphic capability of the screen that creates multi-level readings and in depth reports. The rubberized exterior makes Druck DPI 880 multi-function calibrator an outstandingly robust device in rugged process field conditions that wear other meters out before their time.
The Druck DPI 880 multi-function calibrator has a built-in Hart® loop resistor which alleviates the need to add an inline resistor when calibrating Hart devices.
DPI880多功能过程信号校准器与其他DPI 800系列型号一样，拥有许多高级功能。其中值得注意的是其大型、明亮的背光全图形显示，即使在光线条件不理想的环境中也能轻松读取。这种屏幕设计使得用户可以充分利用完整的图形功能，创建多级读数和深度报告。
此外，DPI 880采用了橡胶外壳设计，使其在恶劣的工艺现场条件下具有极高的耐用性，比其他仪表更能抵御磨损。这意味着该设备能够在严苛的工业环境中保持稳定性能，减少因意外损坏导致的停机时间和维护成本。
Druck DPI 880多功能过程信号校验仪还内置了哈特（Hart）回路电阻器。这意味着在校准哈特设备时，无需额外添加在线电阻器，简化了操作流程并提高了效率。这种一体化的设计使DPI 880成为一种高度集成且易于使用的工具，为用户提供了一种方便、准确的过程信号校准解决方案。
DRUCK DPI880多功能校验仪主要特点：
产生和测量mA、mV、欧姆、频率和脉冲
模拟并测量8个RTD和12个热电偶
32个IDOS“即插即用”压力模块，从10 in H2O到10000psi（25 mbar到700 bar）
同时双读功能
自动开关试验和压力泄漏试验
24V回路电源
数据记录选项
结构紧凑，使用简单，便于携带
方便的单手操作
Features
Sources and reads mA, mV, ohms, frequency and pulses
Simulates and reads 8 RTDs and 12 thermocouples
32 IDOS ‘Plug-N-Play' Pressure modules from 10 in H2O to 10,000psi (25 mbar to 700 bar)
Simultaneous dual reading capability
Automatic switch test and pressure leak test
24 V loop power supply
Datalogging option
Compact, simple to use, easy to carry
