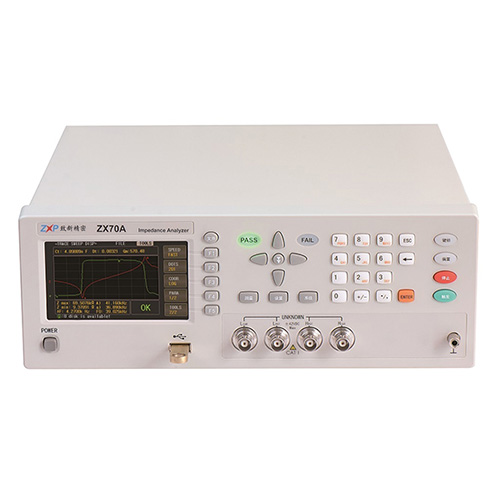

ZXP ZX70A超声阻抗分析仪
ZXP ZX70A超声阻抗分析仪，文章来源于ZXP，市场上有些传统型号的超声阻抗分析仪需要在电脑上运行软件实现扫描分析功能，而常州致新提供的ZX70A/ZX80A系列超声阻抗分析仪除了具有电脑扫描分析功能外，还提供在仪器上直接显示压电器件阻抗-频率扫描曲线分析功能。这样客户不再需要为每台仪器配置一台电脑。这种方式既保证了测试效率，又降低了测试成本、还方便客户在生产线上使用。同时，ZX70A/ZX80A系列产品使用的是矢量测试原理，其良好的测量精度、超宽的频率范围和极好的稳定性，可以满足超声器件与材料的绝大部分测量要求。ZX70A/ZX80A系列超声阻抗分析仪在仪器上就实现扫描图形，还可以把仪器上屏幕显示图形和测试数据直接拷贝到U盘。同时仪器自带电脑软件界面，标配版无需另行购买。ZX70A/ZX80A系列超声阻抗分析仪配备RS232C、USBDEVICE、USBHOST、HANDLER接口，并可选配RS485接口、GPIB接口，可方便地与PC进行数据通讯和远程控制，以组建自动测试系统。
Some traditional models of ultrasonic impedance analyzers on the market need to run software on the computer to achieve the scanning analysis function, while Changzhou Zhixin provides ZX70A/ZX80A series ultrasonic impedance analyzers in addition to computer scanning analysis function, but also to provide a direct display of piezoelectric device impedance-frequency scanning curve analysis function on the instrument. In this way, customers no longer need to configure a computer for each instrument. This approach ensures testing efficiency, reduces testing costs, and is convenient for customers to use on their production lines. Meanwhile, ZX70A/ZX80A series of products use the vector test principle, its good measurement accuracy, ultra-wide frequency range and excellent stability, can meet most of the ultrasonic device and material measurement requirements. ZX70A/ZX80A series of ultrasonic impedance analyzers can realize the scanning graphs on the instrument, and you can also copy the screen display graphs and test data to the USB flash drive directly. U disk. At the same time, the instrument comes with computer software interface, standard version without the need to purchase separately.ZX70A/ZX80A series ultrasonic impedance analyzer is equipped with RS232C, USBDEVICE, USBHOST, HANDLER interfaces, and can be equipped with RS485 interfaces, GPIB interfaces, it is convenient to communicate with the PC data and remote control, in order to set up an automatic test system.
应用领域：
ZX70A/ZX80A系列阻抗分析仪主要适用对象为各类超声、水声器件阻抗特性的测量，包括：压电陶瓷、蜂鸣片、换能器、超声清洗机、超声塑焊机、超声测距、超声马达等所有使用超声的设备。Application: ZX70A/ZX80A series of impedance analyzers are mainly applied to all kinds of ultrasound, hydroacoustic device impedance characteristics of the measurement, including: piezoelectric ceramics, beeper, transducer, ultrasonic cleaner, ultrasonic plastic welder, ultrasonic ranging, ultrasonic motors and other ultrasound equipment.
其他信息：
通过导纳圆和对数曲线判断产品缺陷一目了然；测试数据可在电脑上存储、打印，可对数据溯源；可打印阻抗扫描曲线图形，方便送样分析和存档；一键启动测试功能，操作简单，生产效率高。阻抗分析软件测量结果：ZX70A/80A阻抗分析仪可以测量和评定压电陶瓷片、压电换能器、蜂鸣片等各种器件、设备的参数和性能优劣。通过阻抗-相位-频率曲线图和导纳圆进行判断，一目了然。丰富的数据保存和图像保存功能：新建参数结果，用于新建一个EXCEL文档保存测试的谐振频率、反谐振频率、谐振阻抗等参数。打开参数结果，用于打开查看保存的EXCEL文档。保存扫频数据，用于保存扫描过程中测得的R-X值。保存扫描图形，用于保存扫描的图形，保存设置条件，用于保存本次设置好的扫描测量条件，下次使用时可直接调用。加载设置条件，用于根据文件名调用以前用过的测量文件。Other information: Judge product defects at a glance through the conductivity circle and logarithmic curve; test data can be stored on the computer, print, traceable to the data; impedance scanning curve can be printed graphically, convenient to send samples to analyze and archive; one-key to start the test function, easy to operate, and high production efficiency. Impedance analysis software measurement results: ZX70A/80A impedance analyzer can measure and evaluate the parameters and performance advantages and disadvantages of piezoelectric ceramic sheet, piezoelectric transducer, beeper and other kinds of devices and equipment. Judgement by impedance-phase-frequency curve graph and conductivity circle, at a glance. Rich data saving and image saving functions: new parameter results, used to create a new EXCEL document to save the test resonance frequency, anti-resonance frequency, resonance impedance and other parameters. Open parameter results, used to open and view the saved EXCEL file. Save Sweep Data, used to save the R-X value measured during the scanning process. Save Scanning Graph, used to save the scanning graph, Save Setting Conditions, used to save the scanning measurement conditions set up this time, which can be directly called when used next time. Load setup conditions, used to call the previously used measurement file according to the file name.
阻抗曲线和导纳圆在超声器件的加工、生产过程中的应用如下：
换能器：导纳圆不能出现寄生圆，谐振频率尽可能接近设计频率，动态阻抗要低，品质因素Qm要接近设计要求，电容要与电路匹配。压电陶瓷片：可以直接从导纳圆图和对数坐标判断器件优劣，如果陶瓷片内部出现分层，或者出现裂纹，对数曲线将出现多峰。导纳圆图上出现多个寄生小圆。变幅杆：设计、加工和装配是否合理或有缺陷，直接从导纳圆图上可以明显地可以看到。超声波焊接机：生产加工时，利用导纳圆的结果分析焊接机的状态，通过参数和图形分析，找到焊接机存在的问题。超声清洗机：生产和加工时，振动子的选择要求其振动性能尽可能一致(带宽、品质因数、谐振频率、动态阻抗)。在导纳圆图上，尽可能没有寄生圆或在谐振点附近没有寄生圆。通过导纳圆可以对换能器的制造、来料检验、粘接后的换能器、清洗机进行阻抗特性分析和测量。清洗机的整机测量可以标定机器的谐振频率和静态电容，以便匹配电源，可以分析其新的谐振点、注水后的阻抗、电容及整机的振动模态的特性。多种坐标特性图，阻抗坐标系RXF坐标曲线，对数坐标系。Impedance curve and the conductivity circle in the ultrasonic device processing, production process is as follows: transducer: the conductivity circle can not appear parasitic circle, resonant frequency as close as possible to the design frequency, dynamic impedance should be low, the quality factor Qm should be close to the design requirements, capacitance should be matched with the circuit. Piezoelectric ceramic sheet: can be directly from the conductivity circle diagram and logarithmic coordinates to determine the device advantages and disadvantages, if the ceramic sheet internal delamination, or cracks, the logarithmic curve will appear multiple peaks. Multiple parasitic small circles appear on the conduction circle diagram. Variable amplitude rod: Whether the design, processing and assembly is reasonable or defective, directly from the conduction circle diagram can obviously be seen. Ultrasonic welding machine: When production and processing, the results of the conductivity circle are used to analyze the state of the welding machine, and the problems of the welding machine are found through parameter and graphical analysis. Ultrasonic cleaning machines: When producing and processing, the selection of vibrators requires that their vibration properties are as consistent as possible (bandwidth, quality factor, resonance frequency, dynamic impedance). On the diagram of the conductivity circle, there are no parasitic circles or no parasitic circles near the resonance point as far as possible. Impedance characterization and measurement of transducer manufacturing, incoming material inspection, transducer after bonding, and cleaning machine can be performed by means of the conductivity circle. Measurement of the whole machine of cleaning machine can calibrate the resonant frequency and static capacitance of the machine in order to match the power supply, and can analyze the characteristics of its new resonance point, impedance, capacitance and vibration modes of the whole machine after water injection. Multiple coordinate characteristic graphs, impedance coordinate system RXF coordinate curve, logarithmic coordinate system.
Some traditional models of ultrasonic impedance analyzers on the market need to run software on the computer to achieve the scanning analysis function, while Changzhou Zhixin provides ZX70A/ZX80A series ultrasonic impedance analyzers in addition to computer scanning analysis function, but also to provide a direct display of piezoelectric device impedance-frequency scanning curve analysis function on the instrument. In this way, customers no longer need to configure a computer for each instrument. This approach ensures testing efficiency, reduces testing costs, and is convenient for customers to use on their production lines. Meanwhile, ZX70A/ZX80A series of products use the vector test principle, its good measurement accuracy, ultra-wide frequency range and excellent stability, can meet most of the ultrasonic device and material measurement requirements. ZX70A/ZX80A series of ultrasonic impedance analyzers can realize the scanning graphs on the instrument, and you can also copy the screen display graphs and test data to the USB flash drive directly. U disk. At the same time, the instrument comes with computer software interface, standard version without the need to purchase separately.ZX70A/ZX80A series ultrasonic impedance analyzer is equipped with RS232C, USBDEVICE, USBHOST, HANDLER interfaces, and can be equipped with RS485 interfaces, GPIB interfaces, it is convenient to communicate with the PC data and remote control, in order to set up an automatic test system.
1、高速阻抗分析仪，可适用于高速测试系统
2、0.1%的测试精度，测量速度快(100次/秒)
3、与国际品牌厂家测试数据可比性高
4、键盘锁定功能，掉电数据保护功能
5、简体中文、英文操作界面
6、阻抗的频响特性扫描功能、分析功能
7、支持U盘升级仪器软件
8、仪器内部50组、U盘500组测试文件，可随时调用
9、丰富的接口，RS232C、USBDEVICE、HANDLER、GPIB（选件）
Performance Characteristics: high-speed impedance analyzer, can be applied to high-speed test system, 0.1% testing accuracy, fast measurement speed (100 times / sec), and international brand manufacturers test data comparability is high, Keyboard lock function, power-down data protection function, Simplified Chinese and English operation interface, impedance frequency response characteristics of the scanning function, analysis function, Support U disk upgrade instrument software, instrument internal 50 groups, U disk 500 groups of test files, can be called at any time, a wealth of interfaces, RS232C, USBDEVICE, HANDLER, GPIB (optional).
产品参数| 规格 型号 | ZX70A_200k | ZX70A_500k | ZX70A_1M | ZX80A-2M | ZX80A-5M |
| 频率范围 | 20Hz～200kHz | 20Hz～500kHz | 20Hz～1MHz | 20Hz～2MHz | 20Hz～5MHz |
| 扫描参数 | R-X,Z-θ,Y-θ,G-B | ||||
| 基本精度(具体以精度 表为准) | 0.05% | 0.05% | 0.1% | 0.1% | 0.1% |
| 测量速度(等效400点) | 4秒/件(仪器扫描) | ||||
| 频率精度 | 1mHz | ||||
| 相位分辨率 | 0.01° | ||||
| 阻抗范围 | 0.01mΩ～99.99MΩ | ||||
| 接口 | RS232C,USB DEVICE,Handler,GPIB(选装) | ||||
| 温度湿度 | 0℃～40℃，相对湿度≤75%RH | ||||
| 电源要求 | 电压：100～120Vac 或 198～242 Vac 频率：46～64Hz 功率：>85VA | ||||
| 体积（ＷxＨxＤ） | 310x110x315mm | 400mmx132mmx300mm | |||
| 重量（净重） | 5.5Kg | 8.5Kg | |||
应用领域：
ZX70A/ZX80A系列阻抗分析仪主要适用对象为各类超声、水声器件阻抗特性的测量，包括：压电陶瓷、蜂鸣片、换能器、超声清洗机、超声塑焊机、超声测距、超声马达等所有使用超声的设备。Application: ZX70A/ZX80A series of impedance analyzers are mainly applied to all kinds of ultrasound, hydroacoustic device impedance characteristics of the measurement, including: piezoelectric ceramics, beeper, transducer, ultrasonic cleaner, ultrasonic plastic welder, ultrasonic ranging, ultrasonic motors and other ultrasound equipment.
其他信息：
通过导纳圆和对数曲线判断产品缺陷一目了然；测试数据可在电脑上存储、打印，可对数据溯源；可打印阻抗扫描曲线图形，方便送样分析和存档；一键启动测试功能，操作简单，生产效率高。阻抗分析软件测量结果：ZX70A/80A阻抗分析仪可以测量和评定压电陶瓷片、压电换能器、蜂鸣片等各种器件、设备的参数和性能优劣。通过阻抗-相位-频率曲线图和导纳圆进行判断，一目了然。丰富的数据保存和图像保存功能：新建参数结果，用于新建一个EXCEL文档保存测试的谐振频率、反谐振频率、谐振阻抗等参数。打开参数结果，用于打开查看保存的EXCEL文档。保存扫频数据，用于保存扫描过程中测得的R-X值。保存扫描图形，用于保存扫描的图形，保存设置条件，用于保存本次设置好的扫描测量条件，下次使用时可直接调用。加载设置条件，用于根据文件名调用以前用过的测量文件。Other information: Judge product defects at a glance through the conductivity circle and logarithmic curve; test data can be stored on the computer, print, traceable to the data; impedance scanning curve can be printed graphically, convenient to send samples to analyze and archive; one-key to start the test function, easy to operate, and high production efficiency. Impedance analysis software measurement results: ZX70A/80A impedance analyzer can measure and evaluate the parameters and performance advantages and disadvantages of piezoelectric ceramic sheet, piezoelectric transducer, beeper and other kinds of devices and equipment. Judgement by impedance-phase-frequency curve graph and conductivity circle, at a glance. Rich data saving and image saving functions: new parameter results, used to create a new EXCEL document to save the test resonance frequency, anti-resonance frequency, resonance impedance and other parameters. Open parameter results, used to open and view the saved EXCEL file. Save Sweep Data, used to save the R-X value measured during the scanning process. Save Scanning Graph, used to save the scanning graph, Save Setting Conditions, used to save the scanning measurement conditions set up this time, which can be directly called when used next time. Load setup conditions, used to call the previously used measurement file according to the file name.
阻抗曲线和导纳圆在超声器件的加工、生产过程中的应用如下：
换能器：导纳圆不能出现寄生圆，谐振频率尽可能接近设计频率，动态阻抗要低，品质因素Qm要接近设计要求，电容要与电路匹配。压电陶瓷片：可以直接从导纳圆图和对数坐标判断器件优劣，如果陶瓷片内部出现分层，或者出现裂纹，对数曲线将出现多峰。导纳圆图上出现多个寄生小圆。变幅杆：设计、加工和装配是否合理或有缺陷，直接从导纳圆图上可以明显地可以看到。超声波焊接机：生产加工时，利用导纳圆的结果分析焊接机的状态，通过参数和图形分析，找到焊接机存在的问题。超声清洗机：生产和加工时，振动子的选择要求其振动性能尽可能一致(带宽、品质因数、谐振频率、动态阻抗)。在导纳圆图上，尽可能没有寄生圆或在谐振点附近没有寄生圆。通过导纳圆可以对换能器的制造、来料检验、粘接后的换能器、清洗机进行阻抗特性分析和测量。清洗机的整机测量可以标定机器的谐振频率和静态电容，以便匹配电源，可以分析其新的谐振点、注水后的阻抗、电容及整机的振动模态的特性。多种坐标特性图，阻抗坐标系RXF坐标曲线，对数坐标系。Impedance curve and the conductivity circle in the ultrasonic device processing, production process is as follows: transducer: the conductivity circle can not appear parasitic circle, resonant frequency as close as possible to the design frequency, dynamic impedance should be low, the quality factor Qm should be close to the design requirements, capacitance should be matched with the circuit. Piezoelectric ceramic sheet: can be directly from the conductivity circle diagram and logarithmic coordinates to determine the device advantages and disadvantages, if the ceramic sheet internal delamination, or cracks, the logarithmic curve will appear multiple peaks. Multiple parasitic small circles appear on the conduction circle diagram. Variable amplitude rod: Whether the design, processing and assembly is reasonable or defective, directly from the conduction circle diagram can obviously be seen. Ultrasonic welding machine: When production and processing, the results of the conductivity circle are used to analyze the state of the welding machine, and the problems of the welding machine are found through parameter and graphical analysis. Ultrasonic cleaning machines: When producing and processing, the selection of vibrators requires that their vibration properties are as consistent as possible (bandwidth, quality factor, resonance frequency, dynamic impedance). On the diagram of the conductivity circle, there are no parasitic circles or no parasitic circles near the resonance point as far as possible. Impedance characterization and measurement of transducer manufacturing, incoming material inspection, transducer after bonding, and cleaning machine can be performed by means of the conductivity circle. Measurement of the whole machine of cleaning machine can calibrate the resonant frequency and static capacitance of the machine in order to match the power supply, and can analyze the characteristics of its new resonance point, impedance, capacitance and vibration modes of the whole machine after water injection. Multiple coordinate characteristic graphs, impedance coordinate system RXF coordinate curve, logarithmic coordinate system.
我司有售ZXP ZX70A超声阻抗分析仪，文章来源于数字电桥
