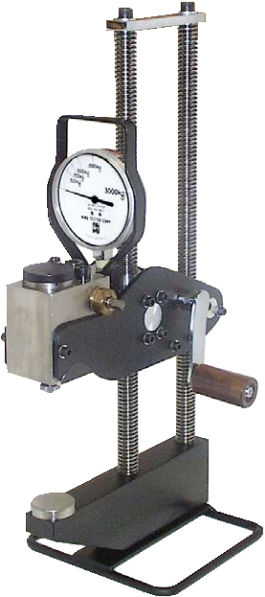

KB Series Manual Tester

The Newage® KB Series is a popular, manually-controlled tester that meets ASTM E-110. This lightweight, portable tester is ideal for virtually any size or shape of metal specimen. Simply place the specimen between the anvil and test head; manually crank the test head downward onto the specimen; and apply the desired load using the hydraulic lever. Overload protection is standard. The tester applies up to 3000 kg load on a 10mm ball, making a visible indentation that is read using a Brinell scope or our B.O.S.S. system. The calibrated accuracy is better than 0.5% of the applied load.

The KB Series is available with load measurement systems of 1000 kgf and 3000 kgf with variations for extended rams or with a chain adapter. The chain adapter is 4 ft in length and is used for large cylinder samples. It secures onto the test head and wraps around the specimen holding the specimen securely during the test procedure. The test head may also be supplied with an extended ram length. The extended length is ideal for recessed areas or over raised edges. Other options include a reverse direction load adapter used for measuring inside diameters on pipe, tube, etc.

All KB Series testers, except the models with chain adapter accessory, are supplied with a 10mm carbide ball indenter, flat anvil, vee anvil and dome anvil.

Features
 Meets ASTM E110

 Versatile- use on virtually any shape or size

 Manual operation locks sample into position

 Economical

Specifications
Measurement Range: HB100 - 700
Operation: Manual
Load Measurement: Hydraulic
Accuracy: +0.5%
Load Range (kgf): 3000, 1000
Vertical Capacity: 13-1/2” or 20”
Throat Depth: 4”
Indenter: 10mm carbide
Warranty: 1 year

Optical Scopes

Model	Description
35-450	Pocket Brinell scope, 20X, fixed focus, with carrying case
5620-05	HighLight Scope, 20X, adjustable focus with case
5620-05A	HighLight Scope, 20X, adjustable focus with “Auto Motion” automatic On/Off and case.
5620-01	HighLight Scope, 20X with 0.1mm resolution (special order)

Scopes are supplied with storage case, hand strap and removable snap-on base.

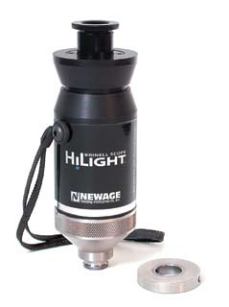

The Newage® 5620 Series HiLight Brinell Scopes features a high-efficiency LED array for its light source, providing excellent illumination and improved readability over conventional “flash light” scopes. The LED array consists of four individual LEDs positioned to provide an even and consistent defini-tion of the Brinell impression’s edge. The 5620 Series uses a 3V lithium CR2 battery. Up to 200 hours of continuous use is typical before a battery change is required. An optional motion sensor/timer can be used to automatically turn the scope On/Off.
