Chatillon MSE100系列人体工程测力计

chatillon MSE100系列人体工程测力计
Chatillon MSE100 系列机械测功计适用于人体工程学评估、工作任务分析、功能性和肌肉力量分析。

该测功计配备 2.25 英寸的大尺寸刻度盘,易于读取。此同心刻度盘只能顺时针测量。峰值保持按钮用于捕获峰值读数,并可迅速归零。测功计精度为 全量程的±0.5%,其机械过载功能可保护测功计免于损坏。

耐用的塑料外壳适于人手操作,即使在最大负载时也同样可自然地握住舒适而坚固的手柄。此测功计可安装到测试台上,由此可在重复多次的测试应用中实现更佳控制和结果一致性。刻度盘可旋转 360 度进行去皮操作。

MSE100是拉伸或压缩测试的出色的手持式解决方案。

MSE100 系列主要特点:
-大尺寸读数刻度盘
- 峰值负载开关
- 可选测量单位(磅力、千克力和牛)
- 大量的人体工程学工装选项

The CHATILLON® MSE100-M Series is ideal for functional capacity evaluations and basic muscle strength measurements where ecomony is required. This compact, easy-to-use force gauge is designed for physical medicine, occupational medicine and sports medicine applications and general patient assess-ment in family, neurological and orthopedic practices. Simplicity was a key design criteria for both clinicians and technicians. Measurement accuracy is better than 0.5% full scale. A large, easy-to-read, dial indicator displays peak strength. The gauge has a 100 lbf capacity. The MSE100-M gauge comes standard with carrying case, handle assembly and NIST Certificate of Calibration with data. A variety of testing fixtures are optionally available.


Features
Operating Modes

- Normal

- Peak Strength

Accuracy +0.5% Full Scale Standard Accessories

- Carrying Case

- Handle Assembly Optional Accessories
- FCEK Functional Capacity Kit NIST Calibration with Data

2 Year Warranty


chatillon MSE100系列人体工程测力计

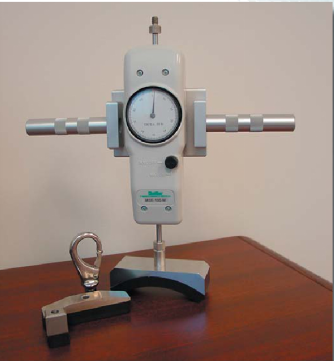

Shown with optional accessories.


Ordering

Muscel Strength Evaluator (Gauge Only)

Model     lbf

MSE100-M   100 x 0.5

Note: Gauge is supplied with Handle Assembly and Carrying Case. Order fixtures separately.

Common Accessories

Item Capacity Part No. Included

Carrying Case   NC002753 Standard1

Handle Assembly   SPK-FMG-HANDLE   Standard

Handles, 4-inch length 13406 Standard

Hook, Stationary 50 lbf (225 N) SPK-FMG-012A Optional

Hook, Stationary 100 lbf (500 N) SPK-FMG-012B Optional

Flat 100 lbf (500 N) SPK-FMG-011A Optional

Hook, Swivel 20 lbf (112 N) ML3867 Optional

Hook, Swivel 100 lbf (500 N) ML3850 Optional

Chisel Point 100 lbf (500 N) SPK-FMG-008A Optional

Point 100 lbf (500 N) SPK-FMG-009A Optional

Notch 100 lbf (500 N) SPK-FMG-010A Optional

Adapter, #10-32 to 5/16-18 P-10020 Optional






Functional Capacity Evaluation Kit & Accessories

Item Capacity Part No. Included

FCE Kit   FCEK Optional

Soft Case   NC002845

Hook, Clasp 250 lbf NC002500

Adapter, Flat disc 1/2” 250 lbf SPK-FMG-143

Adapter, Curve Fixture 250 lbf SPK-FMG-142

Adapter, V-Notch 1” 500 lbf NC000725

Pistol Grip Assembly   SPK-FMG-141

Grasping Cable 500 lbf NC002844

Extension Rod, 6-inch (152mm) SPK-FMG-013C


Knurled Nut, 5/16-18 NC000857

Note: You may order the entire kit or an individual component.
