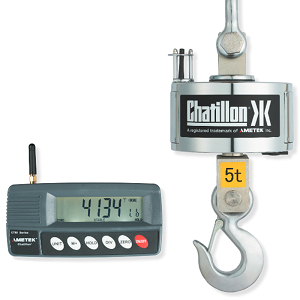

查狄伦CTR系列数显起重机称重系统
查狄伦 CTR系列数显起重机称重系统 。查狄伦CTR系列，数显起重机称重系统是一套专为高载荷称重设计的高精度称重解决方案。CTR系列包含一套高精度称重传感器，和一套无线遥控控制器/显示器。CTR系列共有三个测量范围，从6600磅到6600磅，或是3000-30000公斤。 所有CTR系列的测量精度优于0.2%满量程。显示器可在侧头三十米外读取试验结果结果以磅或公斤显示。CTR系列采用可充电式电池包供电。测试系统可显示峰值。 系统可增加测量附件，并去除高达百分......
产品描述
查狄伦CTR系列数显起重机称重系统。查狄伦CTR系列，数显起重机称重系统是一套专为高载荷称重设计的高精度称重解决方案。CTR系列包含一套高精度称重传感器，和一套无线遥控控制器/显示器。CTR系列共有三个测量范围，从6600磅到6600磅，或是3000-30000公斤。
所有CTR系列的测量精度优于0.2%满量程。显示器可在侧头三十米外读取试验结果结果以磅或公斤显示。CTR系列采用可充电式电池包供电。测试系统可显示峰值。
系统可增加测量附件，并去除高达百分百量程的皮重。手抄显示器----遥控器，可更改单位，清零，以及去除皮重。CTR系列测量系统配有吊钩（s钩），遥控器----显示器，充电适配器（美标欧标英标插头）。CTR系列配有校准证书，NIST校准证书可选。
所有CTR系列的测量精度优于0.2%满量程。显示器可在侧头三十米外读取试验结果结果以磅或公斤显示。CTR系列采用可充电式电池包供电。测试系统可显示峰值。
系统可增加测量附件，并去除高达百分百量程的皮重。手抄显示器----遥控器，可更改单位，清零，以及去除皮重。CTR系列测量系统配有吊钩（s钩），遥控器----显示器，充电适配器（美标欧标英标插头）。CTR系列配有校准证书，NIST校准证书可选。
特征
*磅和公斤单位可选，坚固铝合金称重传感器
*高亮LCD背光式遥控器----显示器
*无线遥控式显示器可于三十米外进行测量及控制。力值捕捉
*力值称重捕捉
*150%安全性过载（500%极限超载）
*可充电电池
*1年保修
订货信息
CTR Series w/ Conformance Cert
CTR Series w/ NIST Cert
Dimensions
附件及选件
Specifications - Weigh Sensor
Accuracy: Better than 0.2% of full scale Safe Overload: 150% of rated capacity Ultimate Overload: 500% of rated capacity
Display: None
Data Sampling Rate: 60Hz
Power: Rechargeable Battery
Continuous Operation: 70 hrs (typical) Operating Temperature: 32o to 104oF (0o to 40oC) Storage Temperature: -4o to 104oF (-20o to 40oC) Relative Humidity: 0 to 85%
RoHS Compliant: Yes
WEEE Compliant: Yes
Specifications - Indicator
Enclosure: NEMA 3
Display: Backlighted, LCD
Display Update Rate: 15 Hz Antenna: Integral
Antenna Range: 100 ft (30 m) Frequency: 429-433MHz Output Level: 10 mW
Battery Life: 30 hrs (estimated continuous)
Operating Temperature: 32o to 104oF (0o to 40oC) Storage Temperature: -4o to 104oF (-20o to 40oC) Relative Humidity: 0 to 85%
Connectors: 9-pin RoHS Compliant: Yes WEEE Compliant: Yes
Note: Weights are approximate.
关键词：Chatillon,AMETEK,查狄伦CTR系列,数显起重机称重系统
标准配件
顶部圆环吊钩
底部Swivel Hook（永久固定）
电池充电器/适配器
遥控器/显示器
合格证书
用户说明书订货信息
CTR Series w/ Conformance Cert
| Model | Capacity | Capacity |
| CTR-6K | 6600 lb x 1 lb | 3000 kg x 0.5 kg |
| CTR-11K | 11,000 lb x 2 lb | 5000 kg x 1 kg |
| CTR-22K | 22,000 lb x 5 lb | 10,000 kg x 2 kg |
| CTR-33K | 33,000 lb x 10 lb | 15,000 kg x 5 kg |
| CTR-44K | 44,000 lb x 20 lb | 20,000 kg x 10 kg |
| CTR-66K | 66,000 lb x 20 lb | 30,000 kg x 10 kg |
CTR Series w/ NIST Cert
| Model | Capacity | Capacity |
| CTR-6K-N | 6600 lb x 1 lb | 3000 kg x 0.5 kg |
| CTR-11K-N | 11,000 lb x 2 lb | 5000 kg x 1 kg |
| CTR-22K-N | 22,000 lb x 5 lb | 10,000 kg x 2 kg |
| CTR-33K-N | 33,000 lb x 10 lb | 15,000 kg x 5 kg |
| CTR-44K-N | 44,000 lb x 20 lb | 20,000 kg x 10 kg |
| CTR-66K-N | 66,000 lb x 20 lb | 30,000 kg x 10 kg |
Dimensions
附件及选件
| Part No. | Description |
| CMAI | Remote Controller |
| TR-Loop-X | Top Loop, 33,000 lb capacity |
| TR-Loop-2X | Top Loop, 44,000 lb capacity |
| TR-Loop-3X | Top Loop, 66,000 lb capacity |
| TR-Hook-X | Hook, 33,000 lb capacity |
| TR-Hook-2X | Hook, 44,000 lb capacity |
| TR-Hook-3X | Hook, 66,000 lb capacity |
| MA-Power | Charger/Adapter, Universal |
Specifications - Weigh Sensor
Accuracy: Better than 0.2% of full scale Safe Overload: 150% of rated capacity Ultimate Overload: 500% of rated capacity
Display: None
Data Sampling Rate: 60Hz
Power: Rechargeable Battery
Continuous Operation: 70 hrs (typical) Operating Temperature: 32o to 104oF (0o to 40oC) Storage Temperature: -4o to 104oF (-20o to 40oC) Relative Humidity: 0 to 85%
RoHS Compliant: Yes
WEEE Compliant: Yes
Specifications - Indicator
Enclosure: NEMA 3
Display: Backlighted, LCD
Display Update Rate: 15 Hz Antenna: Integral
Antenna Range: 100 ft (30 m) Frequency: 429-433MHz Output Level: 10 mW
Battery Life: 30 hrs (estimated continuous)
Operating Temperature: 32o to 104oF (0o to 40oC) Storage Temperature: -4o to 104oF (-20o to 40oC) Relative Humidity: 0 to 85%
Connectors: 9-pin RoHS Compliant: Yes WEEE Compliant: Yes
| Inches | Instrument | Shipping | |||||||||||
| Model | A | B | C | D | E | F | G | H | J | K | L | Weight | Weight |
| CTR-6K | 5.31” 25.60” 5.11” 11.00” 5.70” 10.70” 3.15” | 0.94” | 1.44” | 1.58” | 1.75” | 66 lbs | 72 lbs | ||||||
| CTR-11K | 5.12” 28.35” 5.98” 10.63” 5.83” 12.99” 2.76” | 1.10” | 1.44” | 2.08” | 2.17” | 130 lbs | 139 lbs | ||||||
| CTR-22K | 6.30” 33.86” 7.28” 10.63” 6.62” 16.14” 3.54” | 1.38” | 1.77” | 2.52” | 2.56” | 170 lbs | 190 lbs | ||||||
| CTR-33K | 6.69” 35.31” 7.28: 11.81” 5.55” 16.14” 5.31” | 1.38” | 1.38” | 2.36” | 2.76” | 203 lbs | 230 lbs | ||||||
| CTR-44K | 7.28” 38.74” 7.87” 11.81” 5.83” 16.14” 5.31” | 1.57” | 1.57” | 2.87” | 2.95” | 207 lbs | 236 lbs | ||||||
| CTR-66K | 7.87” | 45.28” | 9.06” | 14.57” | 8.66” | 18.5” | 5.71” | 1.77” | 1.77” | 3.15” | 2.95” | 340 lbs | 396 lbs |
| mm | Instrument | Shipping | |||||||||||
| Model | A | B | C | D | E | F | G | H | J | K | L | Weight | Weight |
| CTR-6K | 135 | 650 | 130 | 280 | 145 | 272 | 80 | 24 | 36 | 40 | 44 | 30 kg | 33 kg |
| CTR-11K | 130 | 720 | 152 | 270 | 148 | 330 | 70 | 28 | 36 | 52 | 55 | 59 kg | 63 kg |
| CTR-22K | 160 | 860 | 185 | 270 | 168 | 410 | 90 | 35 | 45 | 64 | 65 | 77 kg | 86 kg |
| CTR-33K | 170 | 897 | 185 | 300 | 141 | 410 | 135 | 35 | 35 | 60 | 70 | 92 kg | 104 kg |
| CTR-44K | 185 | 984 | 200 | 300 | 148 | 410 | 135 | 40 | 40 | 73 | 75 | 94 kg | 107 kg |
| CTR-66K | 200 | 1150 | 230 | 370 | 220 | 470 | 145 | 45 | 45 | 80 | 75 | 155 kg | 180 kg |
