ESS-600-1000温湿度振动综合试验箱

ESS-600-1000 温湿度振动综合试验箱 又叫做环境应力筛选系统(environmental stress screening(ESS)),为发现和排除产品中不良零件、元器件、工艺缺陷和防止出现早期失效,在环境应力下所做的一系列可靠性试验,也可以做为产品制造过程中的一道工序。高低温循环的筛选效果取决于高/低温的设定值、保持的时间、温度变化速率和循环的次数这四个方面。可以对温度进行调到需要的高度来观察温度的变化速率,这样的试验效果较好。Environmental Stress Screening Sys......

产品描述

ESS-600-1000温湿度振动综合试验箱又叫做环境应力筛选系统(environmental stress screening(ESS)),为发现和排除产品中不良零件、元器件、工艺缺陷和防止出现早期失效,在环境应力下所做的一系列可靠性试验,也可以做为产品制造过程中的一道工序。高低温循环的筛选效果取决于高/低温的设定值、保持的时间、温度变化速率和循环的次数这四个方面。可以对温度进行调到需要的高度来观察温度的变化速率,这样的试验效果较好。Environmental Stress Screening System (ESS), also known as "Temperature and Humidity Vibration Comprehensive Test Box", is suitable for a series of environmental stress screening (ESS) tests under environmental stress to detect and eliminate undesirable parts, components, process defects and prevent early failure. It is a type of reliability test and a process in product manufacturing. The results show that the screening effect of high and low temperature cycles depends on four aspects: the setting values of high and low temperature, the holding time of high and low temperature, the rate of temperature change and the number of cycles. It is better to increase the rate of temperature change.

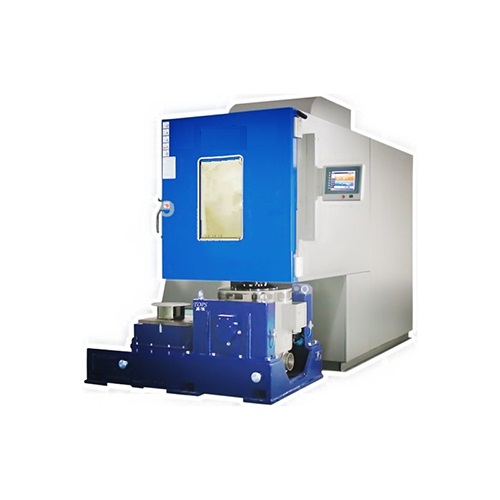

ESS-600-1000

ESS-600-1000温湿度振动试验箱使用说明书

型号 Model ESS-300-512 (F“G) ESS-600-1000 (F“G) ESS-1000-1000
靠前部分 Part 1
(温湿度试验Temp./humidity test chamber)
内部尺寸 Inside size:(W*H*D)cm 80x80x80 100x100x100 100x100x100
外部尺寸 Outside size:(W*H*D)cm 128x180x275 148x200x320 148x200x320
温度范围 Temperature range F: -60℃ ~ 150℃ G : -70℃~ 150℃;
湿度范围 Humidity range 20%~98%R.H.
温度均匀度 Temperature uniformity ≤2℃
湿度均匀度 Humidity uniformity ≤3.0%R.H.
升温/降温时间 Heating / cooling time 升温速率≥3.0C/min; 降温速率≥1.0C/min(可定制升温/降温速率
2~15℃/min);Heating rate  ≥3.0°C/min; Cooling rate  ≥1.0C/min and can be customized linear heating /cooling 2~15℃/min
第二部分 Part 2
(振动试验
Vibration tester)
推力Push force 300Kg.f 600Kg.f 1000Kg.f
频率范围 Frequency scope 2-2000Hz 2-2000Hz 2-2000Hz
高达加速度 Maximum acceleration 100g 100g 100g
较大位移 maximum displacement 25.4mm 51.0mm 51.0mm
较大载重 maximum payload 100KG 150KG 180KG
台面直径 Table diameter 150mm 200mm 200mm
扩展台尺寸 Extended table size L*W 400x400mm 500x500mm 500x500mm
配套装置 Z轴液压升降平台;X 轴水平电动滑动导轨(配置水平滑台设备具有)
Z-Axis Hydraulic Lifting Platform; X-Axis Horizontal Electric Sliding Guide (Equipped with Horizontal Sliding Platform Equipment)
ESS-600-1000环境应力筛选系统在操作说明书对3C电子设备做温湿度试验中,如果设备中的元器件数量多,则循环次数应该相应的增加。在保证不会对产品造成损坏的情况下,可以适当地增强振动,这样测量的效果也很好。因此,也广泛应用于航空航天产品、高速列车、军用器械、资讯电子仪器仪表、高级复合材料、电工、 车辆、金属、汽车电子、各种电子元器件在高低温或湿热振动环境下对产品进行环境应力筛选试验。 If the number of components in the equipment is large, the number of cycles should be increased. Random vibration screening effect is better than sweep sinusoidal vibration, without causing damage to the product, vibration stress is stronger, then the effect is better. Therefore, it is widely used in aerospace products, high-speed trains, military equipment, information electronic instruments, advanced composite materials, electricians, vehicles, metals, automotive electronics, and various electronic components to carry out environmental stress screening tests under high-temperature or
humid-thermal vibration environment.
