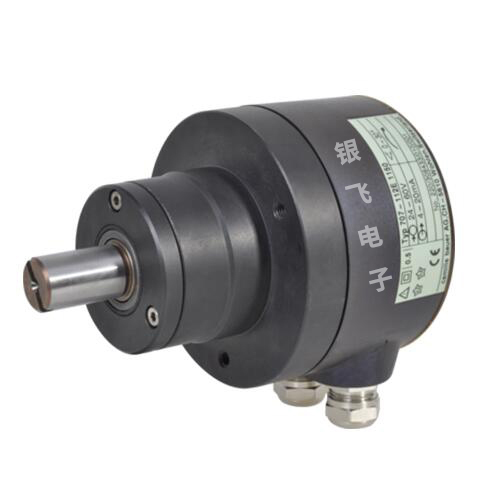

KINAX WT707旋转角度测量传感器 具有非接触式电容式感应系统的测量传感器,用于获取轴的角位置并转换为与负载无关的直流信号,与角位置成比例。由于其坚固的设计,它主要用于工厂范围的重型角位置传感器,尤其是机械制造和造船。典型应用在发电行业应运有涡轮叶片,风门和闸板,重型阀门位置;船用和船舶应用的有方向舵,稳定器,推进器位置;其他制造业的应运有滚子位置,铝加工,可以直接替代KINAX 7W1。在测量输出端读取轴上的负载:较大......

产品描述

KINAX WT707旋转角度测量传感器具有非接触式电容式感应系统的测量传感器,用于获取轴的角位置并转换为与负载无关的直流信号,与角位置成比例。由于其坚固的设计,它主要用于工厂范围的重型角位置传感器,尤其是机械制造和造船。典型应用在发电行业应运有涡轮叶片,风门和闸板,重型阀门位置;船用和船舶应用的有方向舵,稳定器,推进器位置;其他制造业的应运有滚子位置,铝加工,可以直接替代KINAX 7W1。在测量输出端读取轴上的负载:较大1000 N(径向)较大500 N(轴向),如果受到振动,轴负载应尽可能低,以确保轴承的较好寿命。

KINAX WT707旋转角度测量传感器

KINAX WT707旋转角度测量传感器

专利非接触式电容系统/无磨损
模拟测量方法,几乎​​无限分辨率
旋转角度测量范围:0~5到0~270°,不带齿轮箱0~10°到0~1600圈,带齿轮箱
测量输出:0~1至0/4~20 mA 2、3或4线制连接
允许振动(无附加齿轮):0~200赫兹,10g连续,15 g持续2h; 200~500 Hz,连续5g,10g,2h;
贮存温度:–40~+80 °C
符合Ex ia IIC T6的“本质安全”防爆保护,可在爆炸性环境中使用
电位计调节量程/优化适应所需的测量范围
输出量特性:线性或V型曲线
驱动轴可以无限旋转:即使超出测量范围的上限值,也不会发生损坏。
坚固外壳中的表面安装装置:抗振动和冲击,适用于机械制造和造船业
具备海上执行能力(以前是GL,Germanischer Lloyd)

KINAX WT707旋转角度测量传感器规格说明书

Despription Blocking code No-go with blocking code Order- Code
KINAX WT707 Order-Code 707 - xxxx xxxx xxxx xx     707-
1. Version of the transmitter
Standard
A
1
ATEX EX II 2G Ex ia IIC T6 Gb B   2
Sea water version N   3
Sea water version with gear O   4
ATEX EX II 2G Ex ia IIC T6 Gb, sea water version BN   7
ATEX EX II 2G Ex ia IIC T6 Gb, sea water version with gear BO   8
IECEx Ex ia IIC T6 Gb B   A
IECEx Ex ia IIC T6 Gb, sea water version BN   B
IECEx Ex ia IIC T6 Gb, sea water version with gear BO   C
2. Sense of rotation
Calibrated for sense of rotation clockwise

D

1
Calibrated for sense of rotation counter-clockwise D   2
For V-characteristic (not possible for instruments with additional gear). E   3
Calibrated for both senses of rotation (for measuring ranges ≤ 90° only) M   4
Lines 1 and 2: Instruments with ranges 0 … ≥ 5 to 0 … ≤ 150° are usable in both senses of rotation. Instruments with ranges 0 … > 150° to 0 … ≤ 270°
can be changed to the other direction (Beginning and end of the measuring range must be readjusted).
Sense of rotation for transmitters with additional gear see “Feature 13 and 14”.

3. Measuring range (measuring input)
0...10° angle

1
0...30° angle     2
0...60° angle     3
0...90° angle     4
0...180° angle     5
0...270° angle     6
Non-standard (0 to ≥ 5° to 0 to < 270°) [angle]     9
V-characteristic [±angle]     A
Line 9: Non standard 0... ≥ 5 to 0... < 270 Calibrated for both senses of rotation, non standard range 0... ≥ 5 to 0... < 90°
Line A: Specify start MA and end ME of measuring range!
Observe the limits for (MA [± °] ≥ 10 and ME [± °] ≤ 150) and give both angles separated by an oblique stroke, e.g. [± °] 15 / 90!


4. Output signal (measuring output) / Connection version
0...1 mA, 3- or (4)-wire connection

A
0...5 mA, 3- or (4)-wire connection     B
0...10 mA, 3- or (4)-wire connection     C
4...20 mA, 2-wire connection or
0...20 mA, 3- or (4)-wire connection (adjustable with poteniometer)
H   D
4...20 mA, 3- or (4)-wire connection     E
0...20 mA, 4-wire connection (only possible with AC/DC-power supply (DC-, AC-power pack)) L   F
Non standard, 3- or (4)-wire connection 0...>1.00 mA to 0... <20 mA [mA]     Z
Lines A to Z: Rext max. see Section “Technical data”,
4-wire connection, with electric isolation only possible with DC/AC
power supply (AC/DC power pack).
2-, 3- or 4-wire connection, without electric isolation only possible with DC power supply.

5. Power supply
24...60 VAC/DC, with electric isolation

F

BH
1
85...230 VAC/DC, with electric isolation F BH 2
12...33 VDC, without electric isolation K BL A
12...30 VDC (Ex), without electric isolation K AL B
Lines 1 and 2: Not possible for DC/AC power supply at output signal “Feature 4, line D”!
6. Mounting mode
Without foot/flange

0
With foot (mounted)     1
With flange (mounted)     2
7. Material of transmitter rear cover / Routing of connection cable
Plastic / connector less cable plug, socket mounted for cable routed to the rear

P

1
Plastic / connector less cable plug, socket mounted for cable routed to the front P   2
Plastic / connector with cable plug, socket mounted for cable routed to the rear P   3
Plastic / connector with cable plug, socket mounted for cable routed to the front P   4
Metal / 2 glands PG11
Recommeded for AC/DC power supply, 4-wire connection with electric isolation

5
8. Special features
Without (order code complete)

Y

0
With     1
9. Settings (span adjustment)
Without extended setting range

0
Extended setting range + 5 % /-60 %   Y A
Restriction: for angle ≥ 60°, supplementary error 0.2 % also possible on versions with additional gear

KINAX WT707旋转角度测量传感器环境条件及符合标准

气候等级:标准(Non-Ex):温度– 25~+70 °C,相对湿度≤95%,不凝结。
带有改进气候等级(Non-Ex):温度– 40~+70 °C,相对湿度≤95%,不凝结。
防爆保护:温度T6 – 40~+55 °C,温度在T5 –40~+70 °C,温度在T4– 40~+75 °C
外壳保护:IP67符合EN60529标准,IP69k符合EN40050-9标准
抖动:IEC60068-2-6,10g连续,15g(每2小时在3个方向内)/0...200Hz,5g连续,10g(每2小时在3个方向内)/200 … 500 Hz
震动:IEC 60 068-2-27, 3 x 50g(每个轴和方向10个脉冲)
电磁适应性:标准适用于抗扰度EN61000-6-2和观察干扰发射EN61000-6-4
防爆保护:本质安全Ex II 2 G / Ex ia IIC T6 符合EN 60 079-0: 2006和EN 60 079-11: 2007
Camillebauer公司位于景色旖旎的瑞士沃伦(苏黎世附近),成立于1900年(瑞士巴塞尔),1944年起开始自主研发和生产,是一家秉承瑞士品质和创新精神的中型企业,在全球范围内向能源生产、输送及用户端,提供客户化产品和解决方案,为用户创造价值,Camillebauer公司以传承瑞士品质和积极创新的姿态,重新定义基于新能源时代的四大核心技术领域(1)测量和显示(2)电能质量(3)控制和监控(4)软件和系统解决方案,藉此从容应对世界对能源日趋复杂要求之挑战。电力,不像墙上的插座那么简单!
文章来源于Camillebauer
上一篇:KINAX 3W2电容式位置传感器
下一篇:KINAX HW730可编程空心轴变送器
