TSI4040质量流量计FAQ常见问题解答

TSI4040质量流量计FAQ常见问题解答现在开始,首先是中文的,中文的问题和解答都是从英文版翻译过来的,限于编者水平,翻译得不好的或不对的地方,请以英文版的为准。

流量计是双向的吗?
流量计只能检测流量的大小,不能检测流量的方向。同时,按照流量计底部箭头指示的方向校准仪表。请参阅应用说明TSI通用流量计上的反向流量效应,了解反向流量的校正。

模拟输出是否有特殊的连接要求?
对。模拟信号接地回路连接到流量计内的电源接地。因此,您的设备必须使用带差分输入或浮地的电压表或模拟输入电路。不使用这种类型的接地将导致测量误差。

这些不同的气体有修正系数吗?
不需要。这些流量计分别校准空气和100%氧气。其他气体的校准涉及仪表中的内部算法。通过RS232命令选择所需气体。一旦设置好,LCD显示屏将指示气体校准。LCD上显示的流速和流量计的输出随后会自动针对所选气体进行校正。

这些流量计有压力补偿吗?
对。只要这些压力变化在0.5到2.0大气压绝对压力范围内,输出读数就可以补偿压力变化。

这些流量计有温度补偿吗?
对。只要这些温度变化在温度补偿范围内,输出读数就会对温度变化进行补偿。

我可以改变模拟输出信号的比例吗?
对。通过使用“tsiseup.exe”实用程序,您可以设置10伏以表示流量计满刻度的1 l/min流量(仅限l/min的积分值)。此外,您可以调整模拟输出的零截距。注意,这不是真正的调零,因为流量计的模拟输出不能低于零伏。这些参数可以通过使用随仪器提供的TSI设置程序进行更改。

我可以清洗流量计中的传感器吗?
不可以。如果没有专用的工厂工具,就无法接近传感器元件。它也是易碎的,如果试图从外面清洗它,它会被损坏。不要试图通过液体来清洁传感器。

我可以通过流量计测量两个方向的流量吗?
流量计的设计和校准适用于流量计主体上压印的箭头方向的流量。如果气体清洁,倒流不会造成损坏。对于较高的流量,流量计可用于有腐蚀的逆流。有关此校正的讨论,请参阅应用程序“反向流量4000和4100系列流量计”。这些流量计不能确定流向。如果您的设置显示流量计具有瞬时流量反转,例如在泵或阀操作期间,您可能会看到明显的测量错误。叶片式泵尤其容易出现这种问题。如果您怀疑流量反向,请查看示波器上的模拟输出,查看瞬时流量是否接近零。这种瞬时倒流会导致流量计读数过高。更多信息请联系工厂。

我能在任何方向操作流量计吗?
对。

我可以减缓模拟输出信号的响应吗?
对。通过使用“tsiseup.exe”实用程序,模拟输出的采样率可以从1毫秒设置为1秒。

我需要过滤进入流量计的气体吗?
对。这些流量计使用暴露在气流中的微小传感器元件。如果此传感器受到污染,精度可能会永久性地改变,传感器可能会损坏。建议在流量计上游使用HEPA级过滤器。重要事项:如果始终使用清洁气体,您的流量计将保持稳定和准确。

湿度会影响我的读数吗?
对。用干气标定流量计。水蒸气改变了气体的性质。见TSI通用流量计湿度影响校正应用说明。

如何配置流量计选项?
通过使用RS-232接口,您可以控制流量计上的许多选项。其中包括:1)设置返回数据的采样率。2)选择要使用的气体校准。3)选择标准或体积流量单位。4)设置音量测量的开始和结束触发电平。5)设置模拟输出零点和量程。6)设置模拟输出采样率。7)设置LCD显示器的更新速率。8)为4140型设置特殊的显示滚动选项。

如何使用提供的两条电缆连接流量计?
(有关插脚和连接的详细信息,请参阅操作手册)。计算机电缆,PN 1303583,8针Mini-Din至9针D-Sub。——用于将流量计连接至计算机上的RS232连接。--必须向流量计的直流电源输入插孔提供直流电源。模拟电缆,PN1

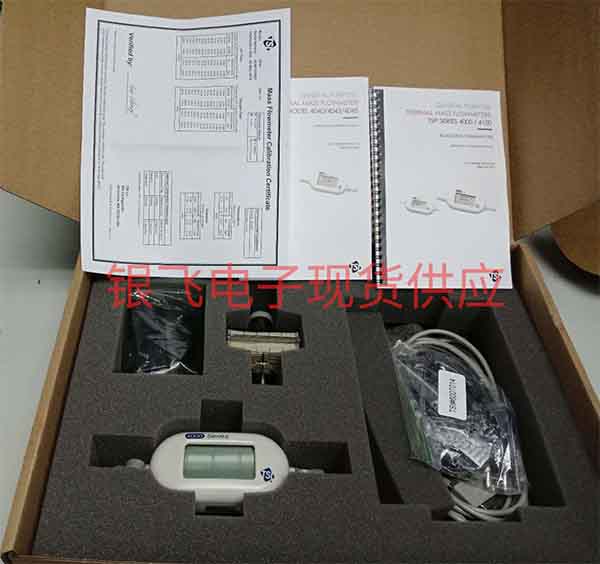

TSI4040测试问题解答

ARE THE FLOWMETERS BI-DIRECTIONAL?
The flowmeters cannot detect the direction of the flow only the magnitude of the flow. Also the meters are calibrated in the direction indicated by the arrow on the bottom of the flowmeter. See the application note Reverse Flow Effects on TSI General Purpose Flowmeters for the correction for reverse flows.

ARE THERE ANY SPECIAL CONNECTION REQUIREMENTS FOR THE ANALOG OUTPUT?
Yes. The analog signal ground return is connected to the power ground inside the flowmeter. For this reason your equipment must use a voltmeter or analog input circuit with a differential input or floating ground. Failure to use this type of ground will result in measurement errors.

ARE THERE CORRECTION FACTORS FOR THESE DIFFERENT GASSES?
No. These flowmeters are separately calibrated for air and 100% O2. Calibrations for the other gasses involves an internal algorithm in the meter. The desired gas is selected by an RS232 command. Once set, the LCD display indicates the gas calibration. The flow rate displayed on the LCD and the flowmeter’s outputs is then automatically corrected for the selected gas.

ARE THESE FLOWMETERS PRESSURE COMPENSATED?
Yes. The output readings are compensated for pressure changes as long as those pressures changes are within 0.5 to 2.0 atmospheres absolute pressure.

ARE THESE FLOWMETERS TEMPERATURE COMPENSATED?
Yes. The output readings are compensated for temperatures changes as long as those temperature changes are within the temperature-compensated range.

CAN I CHANGE THE SCALING OF THE ANALOG OUTPUT SIGNAL?
Yes. By using the "TSISetup.exe" utility program you can set 10 Volts to represent a flow 1 L/min to the full scale of the meter (interger values of L/min only). In addition, you can adjust the zero intercept of the analog output. Note that this is not a true zero adjust because the flowmeter’s analog output cannot go below zero Volts. These parameters can be changed by using the TSI Setup program that is supplied with the instrument.

CAN I CLEAN THE SENSOR IN MY FLOWMETER?
No. The sensor element is not accessible without special factory tools. It is also fragile and would be damaged by attempts to clean it from the outside. NEVER attempt to clean the sensor by running liquids through it.

CAN I MEASURE FLOW IN BOTH DIRECTIONS THROUGH MY FLOWMETER?
The flowmeter is designed and calibrated for flows in the direction of the arrow embossed on the flowmeter body. No damage will occur if the flow is reversed provided that the gas is clean. For higher flowrate the meter can be used in reverse flow with a correciton. See application "FLOW-Reverse Flow 4000 and 4100 Series Flowmeters" for a discussion on this correction. These flowmeters cannot determine the direction of the flow. If your setup presents the flowmeter with momentary flow reversals, such as during pump or valve operation, you may see significant measurement errors. Vane type pumps are especially prone to this problem. If you suspect flow reversals, look at the analog output on an oscilloscope to see if the instantaneous flow is going near zero. This type of momentary flow reversal will cause the flowmeter to read high. Contact the factory for more information.

CAN I OPERATE MY FLOWMETER IN ANY ORIENTATION?
Yes.

CAN I SLOW DOWN THE RESPONSE OF THE ANALOG OUTPUT SIGNAL?
Yes. By using the "TSISetup.exe" utility program, the sample rate of the analog output can be set from 1 msec to 1 second.

DO I NEED TO FILTER THE GAS GOING INTO MY FLOWMETER?
Yes. These flowmeters use a tiny sensor element exposed to the gas stream. If this sensor becomes contaminated, the accuracy can be permanently changed and the sensor may be damaged. A HEPA grade filter is recommended and should ALWAYS be used upstream of the flowmeter. IMPORTANT: Your flowmeter will remain stable and accurate if it is always presented with clean gas.

DOES HUMIDITY AFFECT MY READINGS?
Yes. The flowmeters are calibrated with dry gas. Water vapor changes the gas properties. See the application note on humidity effects Correcting for Humidity Effects on TSI General Purpose Flow Meters.

HOW CAN I CONFIGURE THE FLOWMETER’S OPTIONS?
By using the RS-232 interface, you can control a number of options on the flowmeter. These include: 1) Set the sample rate at which data is returned. 2) Select the gas calibration to be used. 3) Select either standard or volumetric units of flow. 4) Set the beginning and end trigger levels for volume measurements. 5) Set the analog output zero and span. 6) Set the analog output sampling rate. 7) Set the update rate for the LCD display. 8) Set special display scroll options for the Model 4140.

HOW DO I CONNECT MY FLOWMETER USING THE TWO CABLES SUPPLIED?
(See the operator’s manual for pin-out and connection details). Computer Cable, PN 1303583, 8 pin mini-DIN to 9 pin D-SUB. --Used to connect the flowmeter to the RS232 connection on a computer. --DC power must be supplied to the flowmeter’s DC power input jack. Analog Cable, PN 1303584, 8 pin mini-DIN to tinned leads --Used to connect the flowmeter to external devices or systems. --Analog output signal available --RS232 signal available --DC power can be supplied through this cable or to the DC power input jack.

HOW DO I RECALIBRATE MY FLOWMETER?
TSI flowmeters must be returned to the factory for calibration. They are linearized and calibrated using very specialized, automated flow calibration systems. The calibration system then stores the calibration data in an EPROM in the flowmeter. It is not possible to calibrate these flowmeters without such systems. Users that have accurate flow standards can, of course, verify the calibration.

HOW DO THESE FLOWMETERS MEASURE VOLUME?
They integrate flow rate over time to produce a volume measurement. The volume measurement is only available via the RS232 output.The START and STOP trigger criteria are controlled by RS232 settings. The start and stop triggers can be controlled by a flow or pressure. Also, the volume measurement can be set for a fixed amount of time. See the RS232 Command Set Manual for more information on volume measurements.

HOW OFTEN SHOULD I RECALIBRATE MY FLOWMETER?
To maintain a high degree of accuracy in your measurements, TSI recommends that you return your instrument to the factory for an annual NIST traceable recalibration.

I NEED TO DEVELOP CUSTOM SOFTWARE USING LABVIEW® TO INTERFACE WITH THE TSI FLOWMETER. WHAT HELP IS AVAILABLE?
You can download a demonstration program called ”Real Time Demo Program” from our web site. This incorporates many common elements of control, data collection and display. The LabView® source code for this demo program can be downloaded from the web site as ”Source Code for Real Time Demo Program”.

IS THE READOUT STANDARD LITERS PER MINUTE OR ACTUAL LITERS PER MINUTE?
The default output is standard liters per minute. By using the TSI flowmeter setup program supplied with the instrument, users can switch the output to actual liters per minute.

IS THERE AN RS-232 INTERFACE AVAILABLE ON THE FLOWMETER?
Yes. The RS232 interface can be used to (1) select user options and settings, (2) obtain outputs of flow, volume, temperature, and pressure.

PLEASE EXPLAIN NIST TRACEABILITY
NIST is the National Institute of Standards and Technology. All test and calibration data supplied by TSI has been obtained using standards whose accuracies are traceable to NIST or has been verified with respect to instrumentation whose accuracy is traceable to NIST.

WHAT ABOUT OTHER GASSES AND MIXTURES?
Corrections for gasses not listed above are not available at this time. Correction algorithms for other gasses need to be developed and programmed into the flowmeter’s microcomputer by TSI. Additional gasses will be added in the future.

WHAT ARE SOME APPLICATIONS FOR WHICH THESE FLOWMETERS ARE NOT DESIGNED?
Dirty or unfiltered gas; Liquids or condensing vapor; Pressure greater than 15 psig; Combustible mixtures; Gasses/mixtures that are not supported (see specs); Hydrogen; Gasses outside the temperature range of 0-50°C.

WHAT ARE SOME TYPICAL APPLICATIONS FOR THESE FLOWMETERS?
Production Testing; Quality Assurance; Product Development; Research; Field Service; Process Monitoring.

WHAT ARE SOME TYPICAL INDUSTRIES THAT USE THESE FLOWMETERS?
Medical –Ventilators, –Anesthesia; Pharmaceutical; Industrial Hygiene; Metrology; Aerosol Science; Fuel Cell.

WHAT ARE THE AVAILABLE OUTPUTS OF FLOW DATA?
On the Model 4040/4043/4045, the flow is continuously displayed on the LCD screen. On the Model 4140/4043, the flow can be displayed continuously or scrolled on the LCD screen. The modes of display are controlled by the use of the TSI Setup utility program. On all models the flow is available as an anolog output (0V to 10V). See questions under Analog output for more details. On all models the flow is available via the RS232 interface. See the RS232 Command Set Manual for more information. This is available to download from our product page.

WHAT ARE THE AVAILABLE OUTPUTS OF PRESSURE DATA?
On the Model 4040/4043/4045 the pressure is continuously displayed on the LCD screen. On the Model 4140/4143 the pressure can displayed continuously or scrolled on the LCD screen. The modes of display are controlled by RS232 commands. On all models the pressure is available via the RS232 interface. See the RS232 Command Set Manual for more information. This is available to download from our product page.

WHAT ARE THE AVAILABLE OUTPUTS OF TEMPERATURE DATA?
On the Model 4040/4043/4045 the temperature is continuously displayed on the LCD screen. On the Model 4140/4143 the temperature can displayed continuously or scrolled on the LCD screen. The modes of display are controlled by RS232 commands. On all models the temperature is available via the RS232 interface. See the RS232 Command Set Manual for more information. This is available to download from our product page.

WHAT ARE THE AVAILABLE OUTPUTS OF VOLUME DATA?
The volume measurement is only available via the RS232 output. See the RS232 Command Set Manual for more information.

WHAT ARE THE SPECIAL FEATURES OF THESE FLOWMETERS?
Easy to Use; High Accuracy: 2% of reading, not % of full scale; Low Pressure Drop; Fast response flow time: 4 ms to 63% step change; Simultaneous measurement of pressure and temperature; High Stability; LCD Display; Digital and Analog outputs; Temperature & Pressure compensated; User-configurable.

WHAT DATA IS AVAILABLE FROM THE ANALOG OUTPUT?
The analog output signal represents the flow rate. Temperature, pressure, and volume information are not available from the analog output.

WHAT IS THE ACCURACY AND RANGE OF THE TEMPERATURE MEASUREMENT?
The measurement range for gas temperature is 0-50°C. The accuracy is ± 1°C at flows greater than 1 L/min. At flows below 1 L/min the heat generated by the flow sensor element heats the gas inside the flow tube. The indicated temperature is therefore higher than the actual flow temperature.

WHAT IS THE DIFFERENCE BETWEEN “% OF READING” AND “% OF FULL SCALE” ACCURACY SPECIFICATIONS?
The accuracy of many non-TSI of flowmeters is specified as a percent of full-scale. For example, if a 300 L/min flowmeter is specified as 2% of full-scale, the best accuracy is at 300 L/min where the maximum error is 300 * .02 = 6 L/min. At 5 L/min, the allowable error is still 6 L/min which is 120% of the reading. At 2.5 Std L/min, the allowable error is 240% of the reading! TSI flowmeters are specified as a percent of reading. The basic sensor technology used by TSI allows us to make this critical difference. It gives TSI flowmeters an extremely wide dynamic range and excellent accuracy over a wide range of flows. For a TSI flowmeter with a full scale of 300 Std L/min, the accuracy is 2% of reading from 300 Std L/min all the way down to 2.5 Std L/min. Even at 0.5 Std L/min the accuracy is still a very useful 10% of reading. You can download the spec sheet for our General Purpose Flowmeters from our product page. The spec sheet has additional information about the accuracy specification as well as graphical representations of the specifications.

WHAT IS THE DIFFERENCE BETWEEN STANDARD FLOWRATE AND VOLUMETRIC FLOWRATE?
Please download from our web site: Applications Note FLOW-Standard vs Volumetric.

WHAT IS THE FLOW ACCURACY OF THE FLOWMETERS?
Models 4040/4043/4045 (high flow) -- Air and O2: ±2% of reading or 0.05 Std L/min, whichever is greater. This means that from full scale (300 or 200 Std L/min) all the way down to 2.5 Std L/min the accuracy is 2% of reading. Even at 0.5 Std L/min the accuracy is still a very useful 10% of reading! N2 and Air/O2 Mixtures: ±3% of reading or 0.1 Std L/min, whichever is greater. This means that from full scale (300 or 200 Std L/min) all the way down to 3.3 Std L/min the accuracy is 3% of reading. Models 4140/4143 (low flow) -- Air and O2: ±2% of reading or 0.005 Std L/min, whichever is greater. This means that from 20 Std L/min all the way down to 0.25 Std L/min the accuracy is 2% of reading. N2: ±3% of reading or 0.01 Std L/min, whichever is greater. This means that from 20 Std L/min all the way down to 0.33 Std L/min the accuracy is 3% of reading. Even at 0.1 Std L/min the accuracy is still a very useful 10% of reading! N2O: ±4% of reading or 0.01 Std L/min, whichever is greater. This means that from 20 Std L/min all the way down to 0.25 Std L/min the accuracy is 3 of reading. See the specifications section of the operator’s manuals for additional specifications regarding temperature and pressure.

WHAT IS THE RANGE AND ACCURACY OF THE PRESSURE MEASUREMENT?
The pressure range is 50-199 kPa (0.5 - 1.99 Bar, 7.3-28.9 psi) absolute. The pressure transducer will not be harmed by overpressure up to 620 kPa. The accuracy is ±1 kPa.

WHAT IS THE RANGE OF THE ANALOG OUTPUT SIGNAL?
0 to 10 Volts = 0 to full scale flow

WHAT IS THE RANGE OF VOLUME MEASUREMENT?
4040/4043/4045: 0.001 to 999.999 Liters. 4140/4143: 0.0001 to 99.999 Liters.

WHAT IS THE RESPONSE OF THE PRESSURE MEASUREMENT?
Less than 4 msec to 63% of the final value for a 30 kPa step change.

WHAT IS THE RESPONSE OF THE TEMPERATURE MEASUREMENT?
Less than 75 msec to 63% of final value for a 20°C step change in temperature at full scale flow.

WHAT IS THE RESPONSE TIME OF THE FLOW MEASUREMENT?
Less than 4 milliseconds to 63% of final value at full scale flow.

WHAT SOFTWARE DO I NEED TO CONFIGURE THE FLOWMETER’S OPTIONS?
The most convenient way to configure the flowmeter’s options is with a small utility program called “TSI Setup”. This is included on a CD ROM with newer flowmeters or can be downloaded at no cost. You can also enter commands manually using a communications utility program such as Hyperterminal which is supplied as an accessory with most versions of Microsoft Windows. You can download an applications note from our web site that describes how to set up Hyperterminal for use with TSI flowmeters. Download TSI Applications note FLOW-Hyperterminal.

WHERE IS THE PRESSURE TAP LOCATED?
The pressure measurement is the absolute pressure inside the flow tube near the exit.

WHICH GASSES CAN I MEASURE?
Models 4040/4043/4045: Air, 100% O2, Air/O2 mixtures, 100% N2 Models 4140/4143: Air, 100% O2, 100% N2 Models 41403/41433: Air, 100% O2, 100% N2, 100% N2O The calibration can be switched for these gasses by using the utility program “TSI Setup”, supplied with the instrument.
文章来源于TSI4040进口质量流量计
