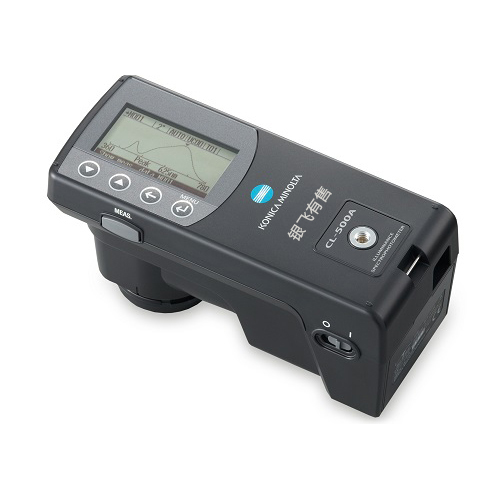

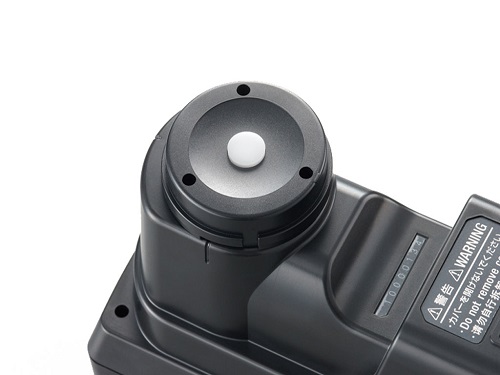

柯尼卡美能达CL-500A手持式分光辐射照度计|光度计
柯尼卡美能达CL-500A手持式分光辐射照度计|光度计是一款特别为LED照明精准检测而研发的便携式照度与分光光度测量仪器，其核心功能在于覆盖360至780纳米宽波段范围内的全面光谱数据分析能力。基于这些详细数据，美能达CL-500A分光辐射照度计能够对光源的各项关键光学特性进行准确评估，包括但不限于显色指数（CRI）、光照强度（照度）、色彩温度以及相关的颜色属性指标，并且所有测量结果均严格符合国际认可的标准体系。这款紧凑轻便的手持式设备采用了先进的传感器技术，确保了其在面对广泛光源类型时，如LED、EL照明以及其他各种光源，都能进行高效而细致的性能评测。CL-500A分光辐射照度计还配备了用户友好的显示屏，以便实时读取和分析数据；内置电池设计使其无需外接电源即可独立运作；同时，具备三脚架安装接口及USB连接功能，极大地增强了其在实验室研究环境、生产现场或户外应用场合下的灵活性与实用性。
The Konica Minolta CL-500A is a compact, handheld spectroradiometer designed for precise color and illuminance measurements in LED lighting applications. It measures across the 360 to 780nm wavelength range, providing comprehensive spectral data to accurately assess Color Rendering Index (CRI), illuminance, chromaticity, and correlated color temperature (CCT). The device meets international standards such as DIN 5032 Part 7 Class B and JIS C 1609-1:2006 General AA level, ensuring high accuracy in illuminance readings. With an onboard display, rechargeable battery, tripod mount, and USB connectivity, the CL-500A offers versatile use in lab, production, or field environments. It supports measurement of various light sources including LEDs, OLEDs, and EL lighting, making it a go-to solution for evaluating next-generation lighting technologies.
The Konica Minolta CL-500A is a compact, handheld spectroradiometer designed for precise color and illuminance measurements in LED lighting applications. It measures across the 360 to 780nm wavelength range, providing comprehensive spectral data to accurately assess Color Rendering Index (CRI), illuminance, chromaticity, and correlated color temperature (CCT). The device meets international standards such as DIN 5032 Part 7 Class B and JIS C 1609-1:2006 General AA level, ensuring high accuracy in illuminance readings. With an onboard display, rechargeable battery, tripod mount, and USB connectivity, the CL-500A offers versatile use in lab, production, or field environments. It supports measurement of various light sources including LEDs, OLEDs, and EL lighting, making it a go-to solution for evaluating next-generation lighting technologies.
CL-500A手持式分光辐射照度计|光度计规格参数
- 光谱范围：覆盖360至780纳米的可见光全波段，实现对光源全面的光谱分析。
- 波长间隔：以1纳米为单位输出精确的光谱数据。
- 光谱分辨率：半波宽约为10纳米，确保了测量结果的准确性。
- 波长精度：在JIS Z8724规定的校正波长（435.8nm、546.1nm和585.3nm）处达到±0.3纳米的严格标准。
- 测量范围：照度测量范围宽广，从0.1lx到100,000lx，并且在5lx以上可以显示色度信息。
CL-500A手持式分光辐射照度计|光度计特点与功能
- 显色指数测定：能够准确计算并显示光源的显色指数(CRI或Ra)，评估光源还原物体颜色的能力。
- 照度测量：提供精确的照度读数，满足室内照明设计、建筑光照规划和工业生产环境中的量化需求。
- 色温计算：可获取光源的相关色温(CCT)，反映其视觉上的暖冷感觉。
- 高级色彩分析：支持色坐标、特殊显色指数(R1-R15)以及色容差(Δuv、ΔE*ab)等多种色彩特性参数的测量。
CL-500A手持式分光辐射照度计|光度计应用领域与特性
- 应用广泛：适用于商业展示照明、舞台灯光设计、显示器背光调校、印刷业色彩管理、农业光照研究等诸多领域。
- 操作便捷：轻巧紧凑的设计便于现场携带操作，配备直观易用的用户界面，支持数据存储和传输功能。
- 符合国际标准：符合JIS C 1609-1:2006 AA普通级标准以及DIN 5032第7部分B级标准，保证了其在全球市场上的权威性和一致性。
| Model | CL-500A Spectroradiometer |
|---|---|
| Luminance meter grade | JIS1809-1:2006 General standard value (*1) |
| DIN5032 Part 7 E-grade standards | N/A |
| Wavelength range | 380 to 780 nanometers |
| Output wavelength interval | 1 nanometer |
| Bandwidth of light wave | Approximately 10 nanometers (half-width) |
| Measurement accuracy (*4.5) |
+ / – 0.3 nanometers (calibration wavelengths specified by Z8724 at 435.8, 546.1 and 358.3 nm with correction for each wave length) (*1) |
| Measuring range | 0.1 to 100,000 lux (color display is C or higher) |
| Precision (*4.5) | EV: + / – 0.0015; UVV: + / – 0.002 (at 5 to 10 kilolux); Standard illuminant A (A) |
| Relative sensitivity within visible light region (f1′) | Within 1.5 percent |
| Cosine response characteristic (T2) | EV: + / – 3 percent when measured continuously while connected to power supply |
| Temperature dependence (FT) | EV: + / – 0.3%, xy: + / – 0.003 |
| Humidity dependence (FH) | EV: + / – 0.3%, xy: + / – 0.003 |
| Measurement time |
Super-fast mode: approximately 0.2 seconds (only available when measuring continuously while connected to power supply) Fast mode: approximately 0.5 seconds Slow mode: approximately 2.5 seconds Auto exposure flash time (High mode): approximately 0.5 to 27 seconds |
| Display modes |
XYZ, X/Y/Z/EV, EV u/v, Characteristic wavelength, Chromaticity, EV, Related temperature Truv index, Color rendering index, Spectral graph, Peak wavelength, d/XYZ, d/(X/Y/Z/EV), d(EV), Graded display |
| Other functions |
Data storage (up to 100 data points), User calibration function (when connected to charger), Continuous measurement (while connected to charger), Automatic on-off function |
| Display language | Japanese, English, Simplified Chinese |
| Interface | USB 2.0 |
| Power source | Built-in rechargeable lithium-ion battery (operating time per full charge varies depending on usage). AC adapter, USB cable |
| Working temperature and humidity range | -10°C to +40°C, relative humidity ≤ 85% (35°C without condensation) Storage temperature and humidity range |
| Dimensions | 70 x 185 x 83 millimeters |
| Weight | 350 grams |
Note: The symbols "*" indicate that this parameter meets specific standards or specifications.
"f1′" represents the sensitivity of the instrument to changes in incident angle within the visible light spectrum.
"T2" indicates cosine response characteristics.
"FT" refers to temperature dependency.
"FH" stands for humidity dependency.
文章来源柯尼卡美能达，深圳银飞公司有售CL-500A手持式分光辐射照度计|光度计
