Commodity Description
METRA HIT 27AS (M227C) aircraft set Gossen MetraHit 27I & 27AS - aircraft insulation tester, Millohmeter, universal meter and data recorder MetraHit 27I is a million ohm, universal meter and data recorder, set insulation testing ability in one. Metrahit 27AS is an aeronautical test suite, including METRAHIT 27I. METRAHIT 27I and 27AS can be used for a wide range of applications, especially aeronautical technology, field service and maintenance. Application of METRAHIT 27I is an ideal choice for universal low resistance measurement. It can also be applied to contact resistance measurement, riveting joints and other special purposes. METRAHIT 27AS is an ideal choice for voltage, insulation, kilohm and temperature measurement in electrical applications of aircraft or helicopters. It is also an ideal choice for evaluating aircraft skin, used for lightning protection and wick test.
In addition to a milliohmmeter and a multimeter, an insulation tester has been integrated into the MetraHit 27I for measurements up through the gigaohm range.
This instrument can be used in a broad range of applications, especially where service and repairs in the field of aviation technology are involved.
-
Insulation resistance measurement 30 MOhm to 3 GOhmwith adjustable test voltage of 50, 100, 250 or 500 V
-
Milliohmmeter 3 mOhm to 300 mOhm with 1 A measuring current and 30 mOhm to 30 Ohm with 200 mA measuring current
-
Kelvin connection (4-wire measurement)
-
Resistance measurement from 0 to 30 MOhm
-
Voltage measurement from 3 to 600 VDC and 3 to 600 VAC with ±30.000 digits
-
Frequency measurement from 300 Hz to 3 kHz
-
DATA hold memory for up to 1200 measured values
-
Continuity and diode testing
-
Overload protection
-
DAkkS calibration certificate as standard feature
-
LCD including background illumination
-
Provided with 3 rechargeable NiMH batteries and a charger as standard equipment

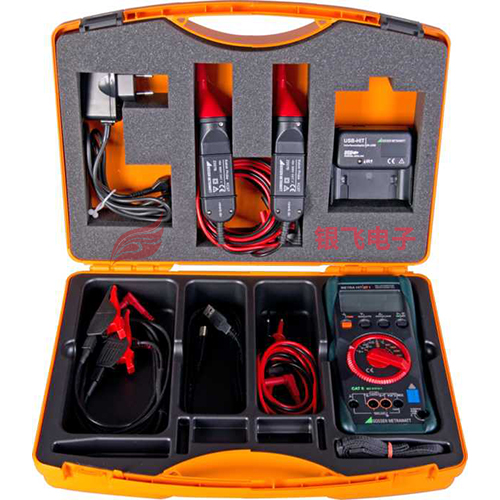

METRA HIT 27AS (M227C) avionics set consisting of
1 METRA HIT 27I
1 GH18 protective rubber cover with carrying strap 3 size AA NiMH storage batteries
1 NA HIT 27 mains power battery charger
1 KS17-S measurement cable set
1 set of Kelvin clips KC4 (1 set = 2 each)
1 set of Kelvin probes KC27 (1 set = 2 each)
1 HC30 hard case
1 abbreviated operating instructions
1 operating instructions D/GB/F
1 adapter USB-HIT including USB cable and System software METRAwin10/METRA HIT on CD-ROM
1 DAkkS calibration certificate
