ATC-5000NG NextGen Transponder/ DME Test Set and ADS-B Target Generator.

ATC-5000NG NextGen Transponder/ DME Test Set and ADS-B Target Generator.NextGen ATC/DME Test Set--Prepare for Global ATC Modernization with NextGen test technology

Software-driven design allows for field updates for adding new features, capability or modifications due to industry changes

The ATC-5000NG is an RF signal generator/receiver for testing Mode A, C and S transponders. The ATC-5000NG was designed with modern software defined radio technology and is the replacement product for the commercial functionality of the SDX-2000, ATC-1400A and S-1403DL. The test set was designed for engineering development, design validation, manufacturing and return-to-service testing.

ATC-5000NG
ATC-5000NG Software-driven design allows for field updates for adding new features, capability or modifications due to industry changes
ADS-B Target Generator
ADS-B squitter encode/decode
DO-260, DO-260A and DO-260B data parsing
DO-260B canned tests available (option)
Generates ATCRBS/Mode S interrogations Multi-receiver test capability (option)
UAT TX/RX capability (optional)
Pulse and frequency measurement
10.4 inch touch screen LCD display for operator control of all test set capabilities
Remote controlled via GPIB or Ethernet
Two independent transmitters and receivers
TX/RX data logging capability
Full diversity testing capability
Data parsing in engineering units

Equipment Tested of ATC-5000NG
Transponders Mode S/ADS-B Out
ADS-B In Receivers
UAT Transceivers
1090MHz DF18 Emitters (surface vehicles)
ADS-B In Ground Station Receivers
ADS-R, TIS-B Ground Station Transmitters
DMEs

Technical Specs
Applications
Engineering development, certification, manufacturing and service
Capable of performing most MOPS tests for DO-181E, DO-260, DO-260A, DO-260B, DO-282B
Size
ATC-5000NG:10.5”H x 19”W x 24”D (26.7 cm x 48.3 cm x 60.9 cm)
Weight: 41 lbs. (18.6 kg)

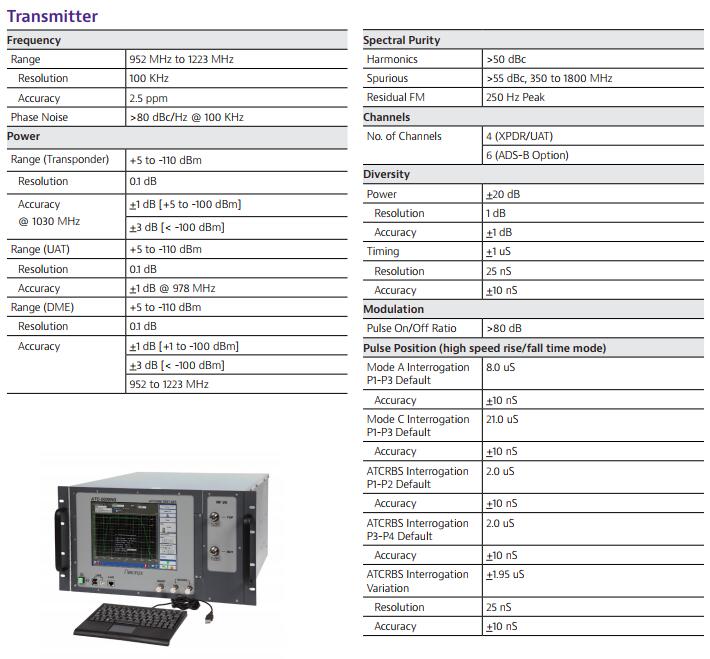

ATC5000NG DATA
