TOS5200

TOS5200五仟伏直流耐压测试仪具有PWM放大器系统提供高稳定的输出 ,5kV/100mA(500VA)交流Hipot(耐压)测试,高精度测量1.5%读数(电压表500V或更高,电流表1mA或更高),上升/下降时间控制,钥匙锁定功能和钥匙操作保护罩,配备RS-232C/USB接口。 TOS5200设计用于交流Hipot测试 ,具有500VA容量和200mA短路电流输出能力。TOS5200采用PWM放大器,输出稳定可靠,不受交流电源线的影响。因此,它是符合IEC、EN、UL、VDE和JIS等要求的电子设备或器件的完美解决方案。 日......

产品描述

TOS5200五仟伏直流耐压测试仪具有PWM放大器系统提供高稳定的输出,5kV/100mA(500VA)交流Hipot(耐压)测试,高精度测量±1.5%读数(电压表500V或更高,电流表1mA或更高),上升/下降时间控制,钥匙锁定功能和钥匙操作保护罩,配备RS-232C/USB接口。TOS5200设计用于交流Hipot测试,具有500VA容量和200mA短路电流输出能力。TOS5200采用PWM放大器,输出稳定可靠,不受交流电源线的影响。因此,它是符合IEC、EN、UL、VDE和JIS等要求的电子设备或器件的完美解决方案。
日本菊水在50多年的市场经验基础上,研发生产实现了低成本的理想交流Hipot测试仪,由于TOS5200直流耐压测试仪5KV涵盖了我们用于交流Hipot测试的高级模型的大部分功能,对于需要200VA或500VA容量的用户,或同时需要这两种容量的用户,它达到了超高的性价比。此外,由于它配备了联锁功能和其他安全功能,操作员可以在安全的情况下进行更高电流值的测试。

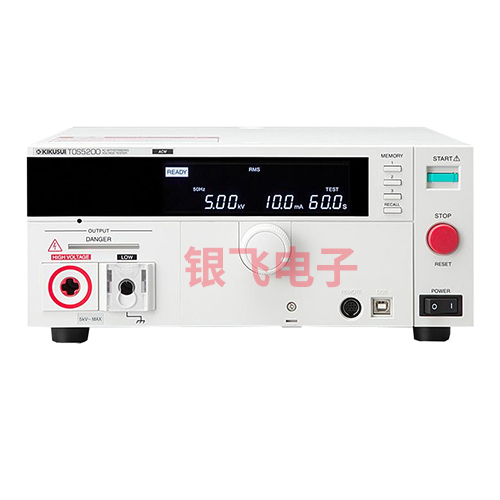

TOS5200

TOS5200直流耐压测试仪5KV特征

施加电压的上升/下降时间控制功能
[配备上升/下降时间控制功能]
防止对EUT或标准试验施加过大的应力。
高稳定输出
[新开发的高效率PWM开关放大器!]
提供稳定的高压输出而不受交流线路变化的影响。确保用户有信心进行高可靠性测试,即使是在电压变化较大的地区。(输入电压波动率:±0.3%)
高精度高分辨率
[±1.5%读数*]
高精度测量±读数的1.5%
*(电压表500 V或更高,电流表1 mA或更高)
减少接触时间
[提高生产力!]
能够将测试时间设置为0.1秒
支持全球范围的输入电压
[通用性!/可选择的输出频率!]
可在任何国家使用,无需改变输入电源。不依赖输入电源环境。它提供50/60赫兹频率的稳定测试电压。
追求可用性和安全性
[全新智能设计的控制面板和输出端子!]
消除了输出端子的突出部分,并配备了一种新型的低端端子。追求提高生产线的安全性和便利性,如为前面板提供保护罩。

TOS5200替代TOS5050A 参数对比区别

Specification comparison item TOS5200 TOS5050A




Test voltage
Output method PWM switching amp system Slide transformer method
Distortion 3 % or less As per commercial power supply waveform
Frequency 50 Hz or 60 Hz Synchronized with commercial power supply waveform
Output voltage waveform Sine Commercial power supply waveform
Voltage regulation 10 % or less 15 % or less
Input voltage variation ±0.3 % -

Test time
Minimum setting value 0.1 s 0.5 s
Accuracy ±(100 ppm + 20 ms) excluding Fall Time ±(100  ppm + 20 ms)



Judgment feature
Upper limit setting AC: 0.01 mA to 110 mA AC: 0.1 mA to 110 mA
Lower limit setting AC: 0.01 mA to 110 mA AC: 0.1 mA to 110 mA
Accuracy 1.00 mA ≤ i: ±(1.5 % of set),
i <1.00 mA: ±(1.5 % of set +30 μA)
Upper limit: ±(5 % + 20 μA)
Rise Time and Fall Time control features 3 -

Voltmeter
Display Digital Digital, analog
Measurement accuracy ±1.5 % of reading (V>500V) ±1.5 % f.s
Voltmeter/Ammeter Measurement method True rms/mean-value Mean-value/rms value
RS232C Interface POWER Switch and all function except Key lock Output for data, test result
Weight Approx. 14 kg (30.9 lbs) Approx. 15 kg (33.07 lbs)
Other Input power supply 100 Vac to 240 Vac 100 V ± 10 %





Appearance

TOS5200

TOS5050A

TOS5200直流耐压测试仪5KV选配件

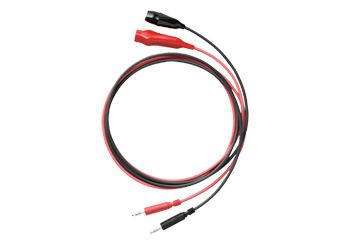

TL31-TOS
Option(s) for Electrical Safety Testers
High-voltage test lead for TOS53XX, 1.5m (5kV Max.)
TL31-TOS

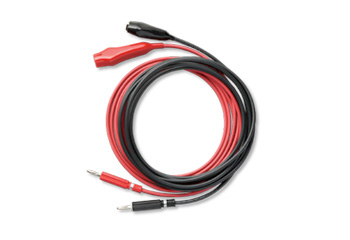

TL32-TOS
Option(s) for Electrical Safety Testers
High-voltage test lead for TOS53XX, 3m (5kV Max.)
TL32-TOS

HP01A-TOS
Option(s) for Electrical Safety Testers
High-voltage test probe, Cable Length 1.8m (AC4kV,DC5kV Max.) , Note: The optional Adapter DD-5P/9P (DIN to Mini DIN) is required for the connection with TOS53XX,TOS93XX
HP01A-TOS

HP02A-TOS
Option(s) for Electrical Safety Testers
High-voltage test probe, Cable Length 3.5m (AC4kV,DC5kV Max.), Note: The optional Adapter DD-5P/9P (DIN to Mini DIN) is required for the connection with TOS53XX,TOS93XX
HP02A-TOS

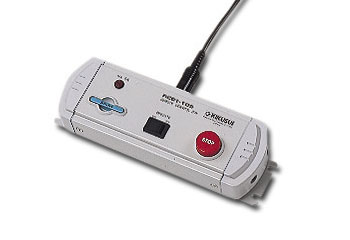

RC01-TOS
Option(s) for Electrical Safety Testers
Remote control box (For one hand operation, cable length:1.5m) Note1: The optional Adapter DD-5P/6P (DIN to Mini DIN) is required for the connection with TOS7200, Note2: The optional Adapter DD-5P/9P (DIN to Mini DIN) is required for the connection with TOS53XX,TOS93XX
RC01-TOS

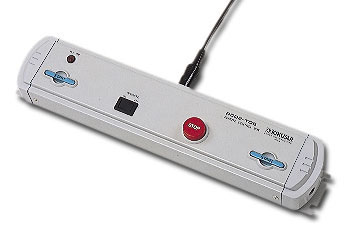

RC02-TOS
Option(s) for Electrical Safety Testers
Remote control box (For both-hand operation, cable length:1.5m) Note1: The optional Adapter DD-5P/6P (DIN to Mini DIN) is required for the connection with TOS7200, Note2: The optional Adapter DD-5P/9P (DIN to Mini DIN) is required for the connection with TOS53XX,TOS93XX
RC02-TOS

DD-5P/9P
Option(s) for Electrical Safety Testers
Conversion cable(DIN to Mini DIN) for connecting the remote control box (RC01-TOS or RC02-TOS) or high-voltage test probe (HP01A-TOS or HP02A-TOS ) with TOS53XX,TOS93XX
DD-5P/9P

TU01-TOS
Option(s) for Electrical Safety Testers
The TU01-TOS is a terminal unit that converts the 25 pin SIGNAL I/O connector of the Kikusui TOS5300/ 5301/ 5302 Withstanding Voltage Tester to the 14 pin SIGNAL I/O connector of the TOS5050A/ 5051A. You can insert this unit between a controller and a TOS5300/ 5301/ 5302 to perform the same external control that you can perform on the TOS5050A/ 5051A.
TU01-TOS

PL02-TOS
Option(s) for Electrical Safety Testers
Warning light unit for only TOS9200/TOS9201/TOS93XX
PL02-TOS
KRA4-TOS
Rack Adapter
Rack adapter (Inch size) *Applicable model name: TOS53XX
KRA200-TOS
Rack Adapter
Rack adapter (Metric size) *Applicable model name: TOS53XX

TOS5200直流耐压测试仪5KV规格参数表












AC
Output section
Output range 0.05 kV to 5.00 kV
  Setting accuracy ± (2 % of set + 20 V) [at no load]
Setting range 0.00 kV to 5.50 kV
Resolution 10 V STEP
Max. rated output *1 500 VA (5 kV/100 mA)
Max. rated voltage 5 kV
Max. rated current 100 mA [output voltage 0.5 kV or higher]
Transformer rating 500 VA
Output voltage waveform *2 Sine
  Distortion If the output voltage is 0.5 kV or more: 3 % or less (when no load or a pure resistive load is connected)
Crest factor Within √2 ± 3 % (output voltage 800 V or higher, at no load)
Frequency 50 Hz or 60 Hz
  Accuracy ± 0.5 % (excluding during voltage rise time)
Voltage regulation 10 % or less (when changing from maximum rated load to no load)
Input voltage variation ±0.3 % (5 kV when no load is connected; power supply voltage: 90 V to 250 V)
Short-circuit current 200 mA or more (when the output voltage is 1.0 kV or greater)
Output method PWM switching
Start voltage The voltage at the start of withstanding voltage tests can be set to 50 % of the test voltage.
Limit voltage The test voltage upper limit can be set . AC: 0.00 kV to 5.50 kV

Output voltage monitor feature
If output voltage exceeds the specified value + 350 V or is lower than the specified value - 350 V, output is turned off, and protective features are activated.



Voltmeter



Digital
Measurement range 0.000 kV to 6.500 kV AC
Display □.□□□ kV
Accuracy V < 500 V: ± (1.5 % of reading + 20 V), V ≥ 500 V: ±1.5 % of reading
Response *3 True rms, Average value response/rms display switchable
Hold feature After a test is finished, the measured voltage is retained until the PASS or FAIL judgment is cleared.





Ammeter





Digital
Measurement range 0.00 mA to 110 mA


Display
i = measured current
Accuracy *4 1.00 mA ≤ i: ± (1.5 % of reading), i < 1.00 mA: ± (1.5 % of reading + 30 μA)
Response *3 True rms/ Mean-value response rms display Can be switched
Hold feature After a test is finished, the measured current value is retained until the PASS judgment is cleared.
















Judgment feature
Judgment method and judgment operation • If PASS HOLD is enabled, the PASS signal is generated continuously until the TOS5300 Series receives a STOP signal.
• The UPPER FAIL and LOWER FAIL signals are generated continuously until the TOS5300 Series receives a STOP   signal.
• The FAIL and PASS buzzer volume levels can be changed.
• For PASS judgments, the length of time that the buzzer sounds for is fixed to 0.2 seconds. Even if PASS HOLD is enabled, the buzzer turns off after 0.2 seconds.
Upper limit setting 0.01 mA to 110 mA
Lower limit setting 0.01 mA to 110 mA / OFF
Judgment accuracy *4 1.00 mA ≤ i: ± (1.5 % of set), i < 1.00 mA: ± (1.5 % of set + 30 μA)
Current detection method Calculates the current’s true rms value and compares this value with the reference value
Calibration Calibrated with the rms of a sine wave using a pure resistive load




Time
Voltage rise time 0.1 s to 10.0 s
  Resolution 0.1 s
Voltage fall time 0.1 s / OFF (only enabled when a PASS judgment occurs)
Test Time 0.1 s to 999 s, can be turned off (TIMER OFF)
  Resolution 0.1 s to 99.9 s: 0.1 s/100 s to 999 s: 1 s
Accuracy ±(100 ppm + 20 ms) excluding Fall Time
