现货德鲁克Druck不同规格的压力转接头
银飞电子现有德鲁克Druck不同规格的压力转接头现货。以下是德鲁克Druck压力转接头选型参数表格。这些转接头适用于德鲁克Druck的PV210、PV211、PV212和PV411A等压力泵。
注：外螺纹的用M表示，内螺纹用F表示。
特殊规格、型号，特殊螺纹可订做。

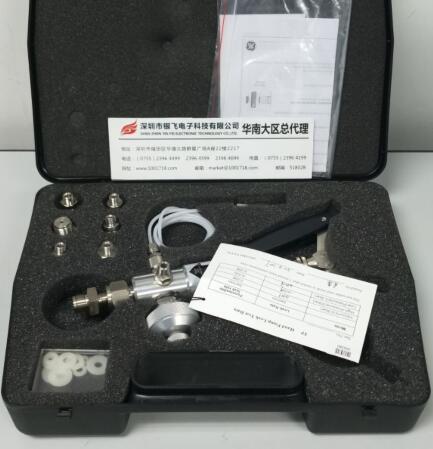

下图是德鲁克Druck PV211-P套件所配的英制螺纹BSP的压力转接头。
本文来自德鲁克Druck
| 英制螺纹G | 英制螺纹BSP | 美标螺纹NPT | 德标螺纹PG | 公制螺纹M | |||||||
| G1/8″ | 1/16″BSP | 1/16″NPT | PG7 | M1×0.25 | M10×1.25 | M18×1.25 | M27×3.0 | M39×2.0 | M52×2.0 | M68×2.0 | M90×6.0 |
| G1/4″ | 1/8″BSP | 1/8″NPT | PG9 | M1×0.2 | M10×1.0 | M18×1.0 | M27×2.0 | M39×1.5 | M52×1.5 | M68×1.5 | M95×2.0 |
| G3/8″ | 1/4″BSP | 1/4″NPT | PG11 | M1.1×0.25 | M10×0.75 | M18×0.75 | M27×1.5 | M39×1.0 | M52×1.0 | M68×1.0 | M95×6.0 |
| G1/2″ | 3/8″BSP | 3/8″NPT | PG13.5 | M1.1×0.2 | M10×0.5 | M18×0.5 | M27×1.0 | M42×4.5 | M56×5.5 | M72×6.0 | M100×6.0 |
| G5/8″ | 1/2″BSP | 1/2″NPT | PG16 | M1.6×0.35 | M12×1.75 | M20×2.5 | M27×0.75 | M42×4.0 | M56×4.0 | M72×4.0 | M114×2.0 |
| G3/4″ | 5/8″BSP | 3/4″NPT | PG21 | M1.6×0.2 | M12×1.5 | M20×2.0 | M30×3.5 | M42×3.0 | M56×3.0 | M72×3.0 | M140×2.0 |
| G7/8″ | 3/4″BSP | 1″NPT | PG29 | M2×0.4 | M12×1.25 | M20×1.5 | M30×3.0 | M42×2.0 | M56×2.0 | M72×2.0 | M164×2.0 |
| G1″ | 7/8″BSP | 1-1/4″NPT | PG36 | M2×0.25 | M12×1.0 | M20×1.25 | M30×2.0 | M42×1.5 | M56×1.5 | M72×1.5 | M188×2.0 |
| G1-1/8″ | 1″BSP | 1-1/2″NPT | PG42 | M2.5×0.45 | M12×0.75 | M20×1.0 | M30×1.5 | M42×1.0 | M56×1.0 | M72×1.0 | |
| G1-1/4″ | 1-1/8″BSP | 2″NPT | PG48 | M2.5×0.35 | M12×0.5 | M20×0.75 | M30×1.0 | M45×4.5 | M60×5.5 | M76×6.0 | |
| G1-1/2″ | 1-1/4″BSP | 2-1/2″NPT | M3×0.5 | M14×2.0 | M20×0.5 | M30×0.75 | M45×4.0 | M60×4.0 | M76×4.0 | ||
| G1-3/4″ | 1-1/2″BSP | 3″NPT | M3×0.35 | M14×1.5 | M22×2.5 | M33×3.5 | M45×3.0 | M60×3.0 | M76×3.0 | ||
| G2″ | 1-3/4″BSP | 3-1/2″NPT | M4×0.7 | M14×1.25 | M22×2.0 | M33×3.0 | M45×2.0 | M60×2.0 | M76×2.0 | ||
| G2-1/4″ | 2″BSP | 4″NPT | M4×0.5 | M14×1 | M22×1.5 | M33×2.0 | M45×1.5 | M60×1.5 | M76×1.5 | ||
| G2-1/2″ | 2-1/4″BSP | 5″NPT | M5×0.8 | M14×0.75 | M22×1.25 | M33×1.5 | M45×1.0 | M60×1.0 | M76×1.0 | ||
| G2-3/4″ | 2-1/2″BSP | 6″NPT | M5×0.5 | M14×0.5 | M22×1.0 | M33×1.0 | M48×5.0 | M64×6.0 | M80×6.0 | ||
| G3″ | 2-3/4″BSP | 8″NPT | M6×1.0 | M16×2.0 | M22×0.75 | M33×0.75 | M48×4.0 | M64×4.0 | M80×4.0 | ||
| G3-1/2″ | 3″BSP | 10″NPT | M6×0.75 | M16×1.5 | M22×0.5 | M36×4.0 | M48×3.0 | M64×3.0 | M80×3.0 | ||
| G4″ | 3-1/2″BSP | 12″NPT | M6×0.5 | M16×1.25 | M22×2.0 | M36×3.0 | M48×2.0 | M64×2.0 | M80×2.0 | ||
| G5″ | 4″BSP | 14O.D. | M8×1.25 | M16×0.75 | M24×3.0 | M36×2.0 | M48×1.5 | M64×1.5 | M80×1.5 | ||
| G6″ | 4-1/2″BSP | 16O.D. | M8×1.0 | M16×0.5 | M24×2.0 | M36×1.5 | M48×1.0 | M64×1.0 | M80×1.0 | ||
| G8″ | 5″BSP | 18O.D. | M8×0.75 | M18×2.5 | M24×1.5 | M36×1.0 | M52×5.0 | M68×6.0 | M88×2.0 | ||
| 5-1/2″BSP | 20O.D. | M8×0.5 | M18×2.0 | M24×1.0 | M39×4.0 | M52×4.0 | M68×4.0 | M90×2.0 | |||
| 6″BSP | 24O.D. | M10×1.5 | M18×1.5 | M24×0.75 | M39×3.0 | M52×3.0 | M68×3.0 | M90×4.0 | |||
特殊规格、型号，特殊螺纹可订做。
下图是德鲁克Druck PV211-P套件所配的英制螺纹BSP的压力转接头。
本文来自德鲁克Druck
