Jofra CTC650A Temperature calibrator


Rapid heating and cooling

CTC-650A improved the design of the heating module, which allows them to heat up to a maximum temperature of 4 minutes and only about 10 minutes. The casing with a diameter of 25mm ensures good stability and consistency, and the heating speed is improved.

Product performance

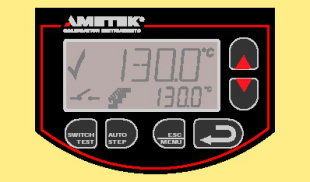

CTC series with strong and lightweight design, suitable for field use, panel design is simple and intuitive, the screen with a background light LCD lcd. The user interface is friendly and intuitive, and the key operation is simple and easy to use. The current status is displayed on the screen. The shell is made of aluminum material.

All functions can be operated directly on the panel, heating area design position and operation panel separation, so as to protect the operator. The main function of CTC is a key corresponding to a function, no complicated menus. LCD display clear and easy to read, and there is an icon to indicate the current state.

Operation and setting

Fast through the up and down arrow keys to set the temperature of 0.1 DEG C. In addition, the resolution can also set the unit stability standard, display resolution, contrast, slope (heating rate), automatic step set and maximum temperature setting.

Stability indicator

When the calibration instrument reaches the set temperature and number of a bold will remain stable on the screen after the sign. The operator can change the stability conditions to achieve more stringent calibration results. 5 minutes before the calibration to achieve stability, there will be a countdown sign to achieve a stable time.

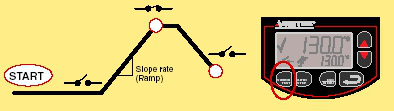

The use of automatic switching test function to record the temperature of the temperature of the opening and closing of the switch can save calibration time. And can also display the dead value between two points. Just press the switch test key can be automatic switch test.

Automatic stepping

Up to 9 steps can be set up automatically, including the stability of each step. This feature allows the CTC to be placed on the site to automatically control the temperature, the operator can observe the sensor data in the control room.

Recalibration and adjustment

The new CTC calibration method is very simple, no software or screwdriver, only need a standard reference thermometer. The reference thermometer is inserted into the instrument, in accordance with the instructions on the screen can be re calibrated. A lot of Metrology departments or calibration laboratories can do this work, and can issue calibration certificate.

Liquid filled sensor (pressure thermometer) or temperature switch

CTC-320B and CTC-650B have a higher 190mm insertion depth and can be calibrated with a liquid filled thermometer. CTC-650B has a specially designed nonlinear heating element and a larger size of the casing, so that the whole heating temperature is highly consistent. This allows the entire length of the sensor parts are placed at the same temperature, resulting in high calibration accuracy and repeatability.

Calibration software

All CTC with RS232 interface and AMECAL-LIGHT software. This software is a WINDOWS application software, you can set different calibration procedures, simple and intuitive operation. This software can print calibration reports in accordance with ISO-9000 specifications. AMETEK-LIGHT software support all RS232 interface with the JOFRA body calibration instrument including JOFRA DTI1000 high precision thermometer. In semi-automatic calibration applications, the software can also support the liquid trough, such as freezing point.

Standard configuration

CTC-140A/320/650/1200 standard configuration

CTC dry temperature calibrator (user specified model)

Power cord

Traceability Certificate - temperature performance

Casing (user specified)

Casing tool

RS232 communication cable

JofraCal application software

User manual (multiple languages, including Chinese)

Reference manual (English)

Test line
